2016  MORBARK  M12R  - E001831

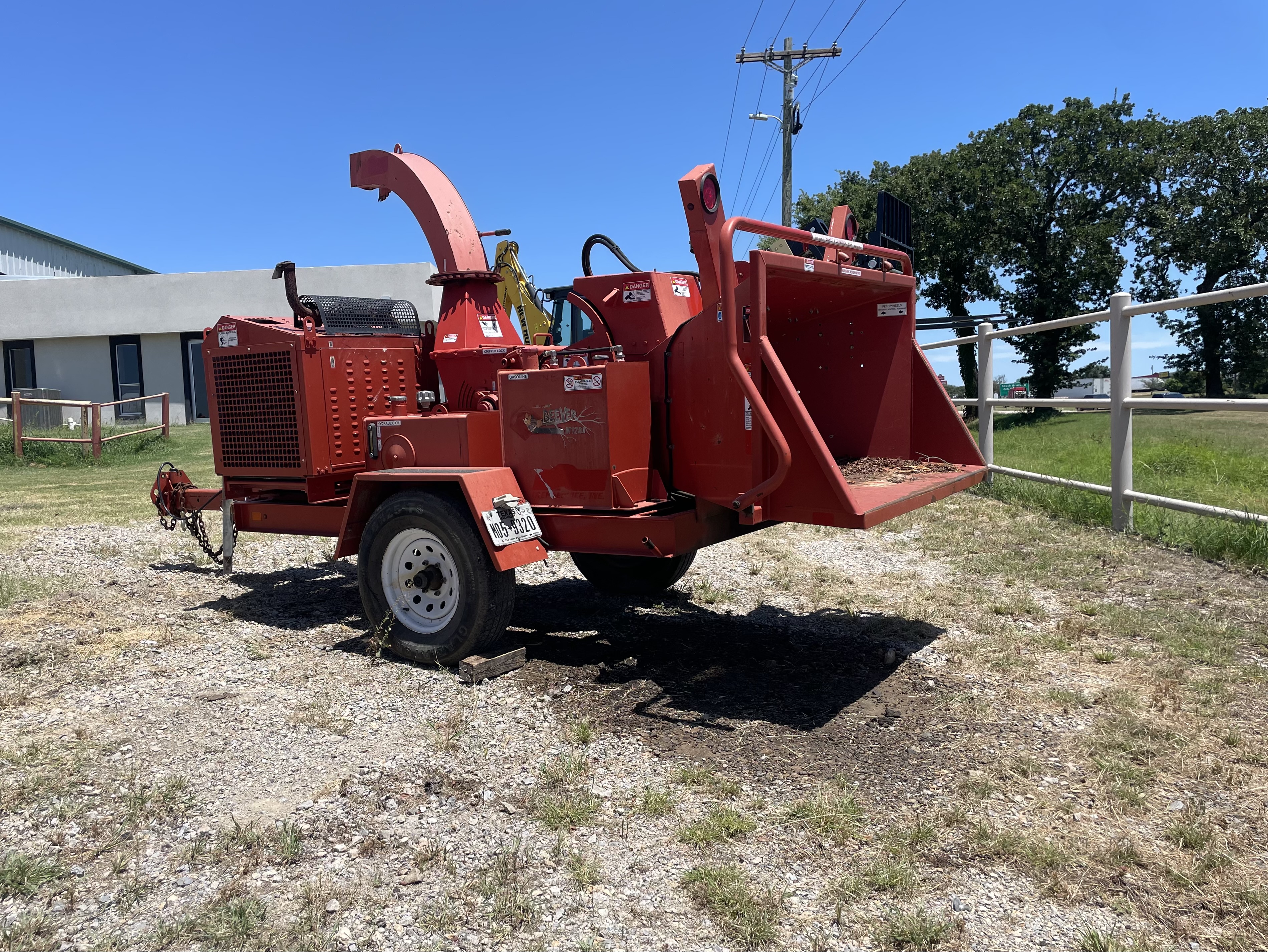

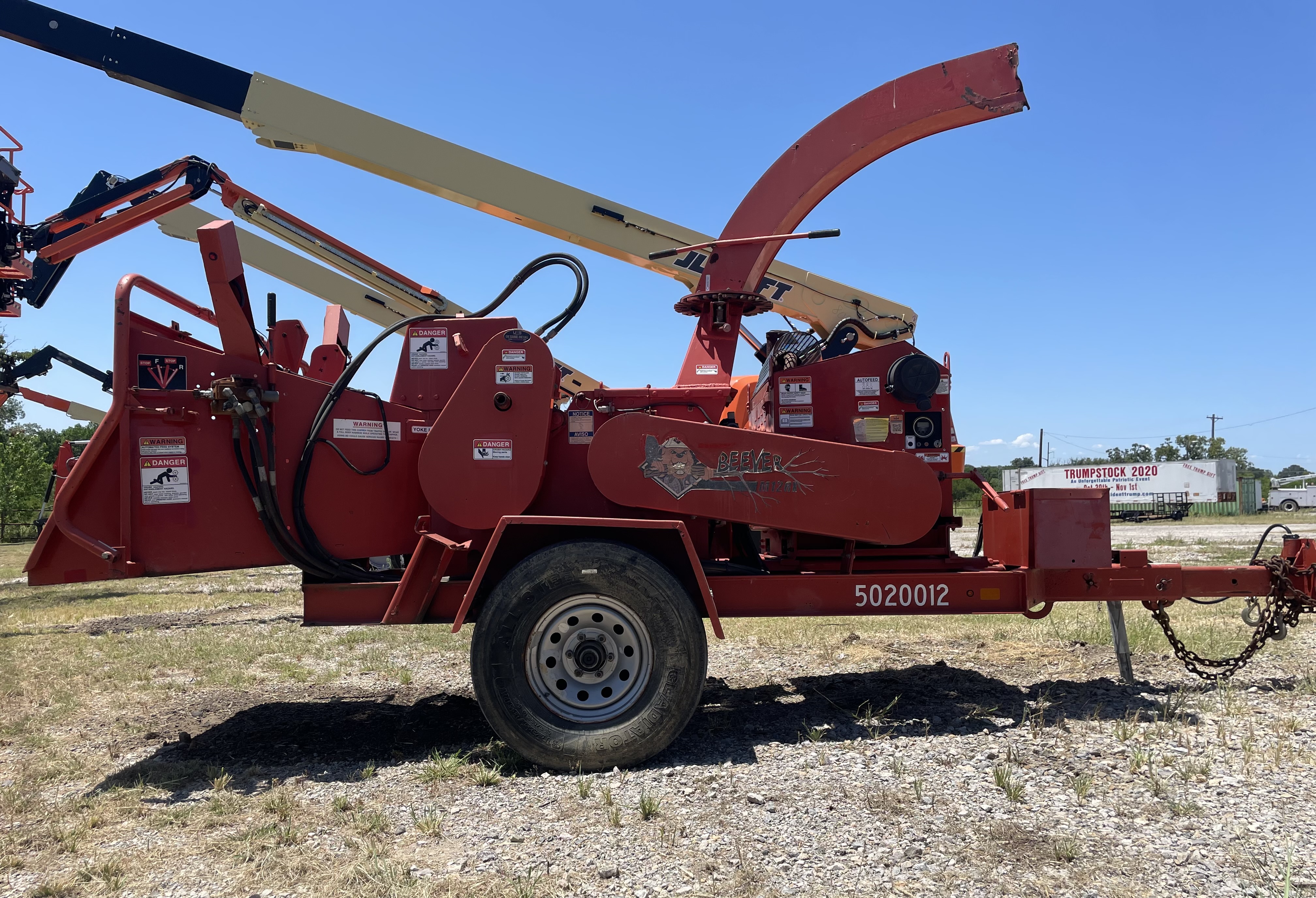

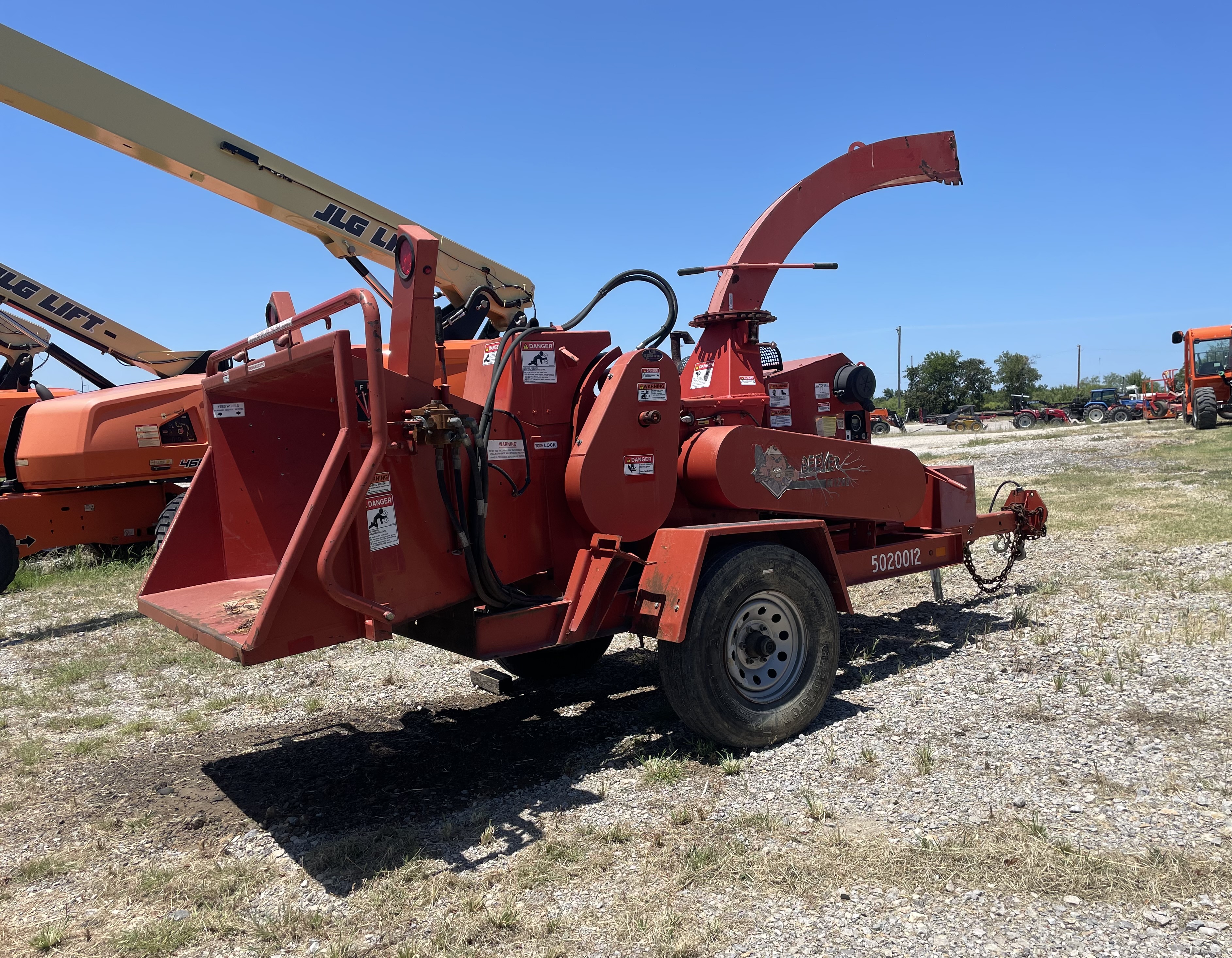

2016 Morbark Beever M12RX

With its power and easily transportable design, the compact and economical Beever M12RX chipper is the ideal unit for utility line clearing, residential tree services, rental yards and municipalities.

The dual-sided, chambered air impeller system increases chip-throwing velocity and reduces dust and material blowback out the infeed to pack more into the chip truck.

The 18" diameter single top feed wheel easily climbs over material, reduces drag and increases chipping efficiency.

Like all Morbark equipment, the M12RX is a long-lasting, durable machine backed by a world-class parts and service support team.

• Infeed Opening

The 60" wide x 31" high chute opening and 15" wide x 12" high throat opening allows for easy feeding of branchy material and reduced saw labor.

• Drive Belt Cover

Drive belt inspection cover provides easy access for drive system maintenance.

• Feed Wheel

TorqMax Top Feed Wheel Compression system with spring-assisted down pressure generates more than 3,200 lb./ft. of material pulling force.

• <New-Style Discharge

360 swivel discharge with chip deflectors puts chips right where theyre needed without removing the Beever from the tow.

• Equipment Highlights

21"3/8" diameter x 14" wide staggered-knife-pocket drum with two dual-edged chipper knives and dual-sided chambered air impeller system

Reversing automatic feed system

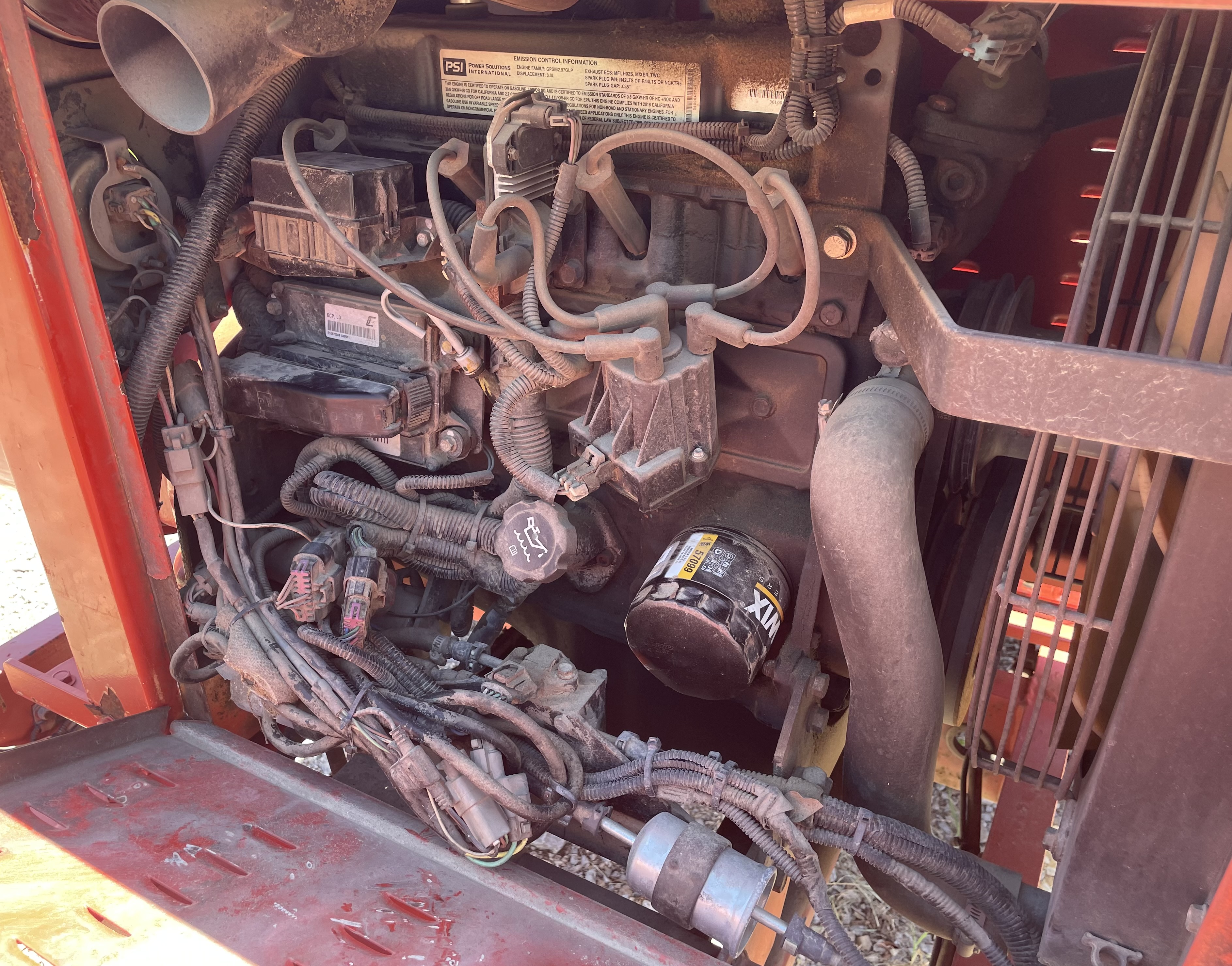

Enclosed engine with gauge panel, radiator fines screen and slide rails for belt adjustment

Fuel tank sight gauge and drain plug

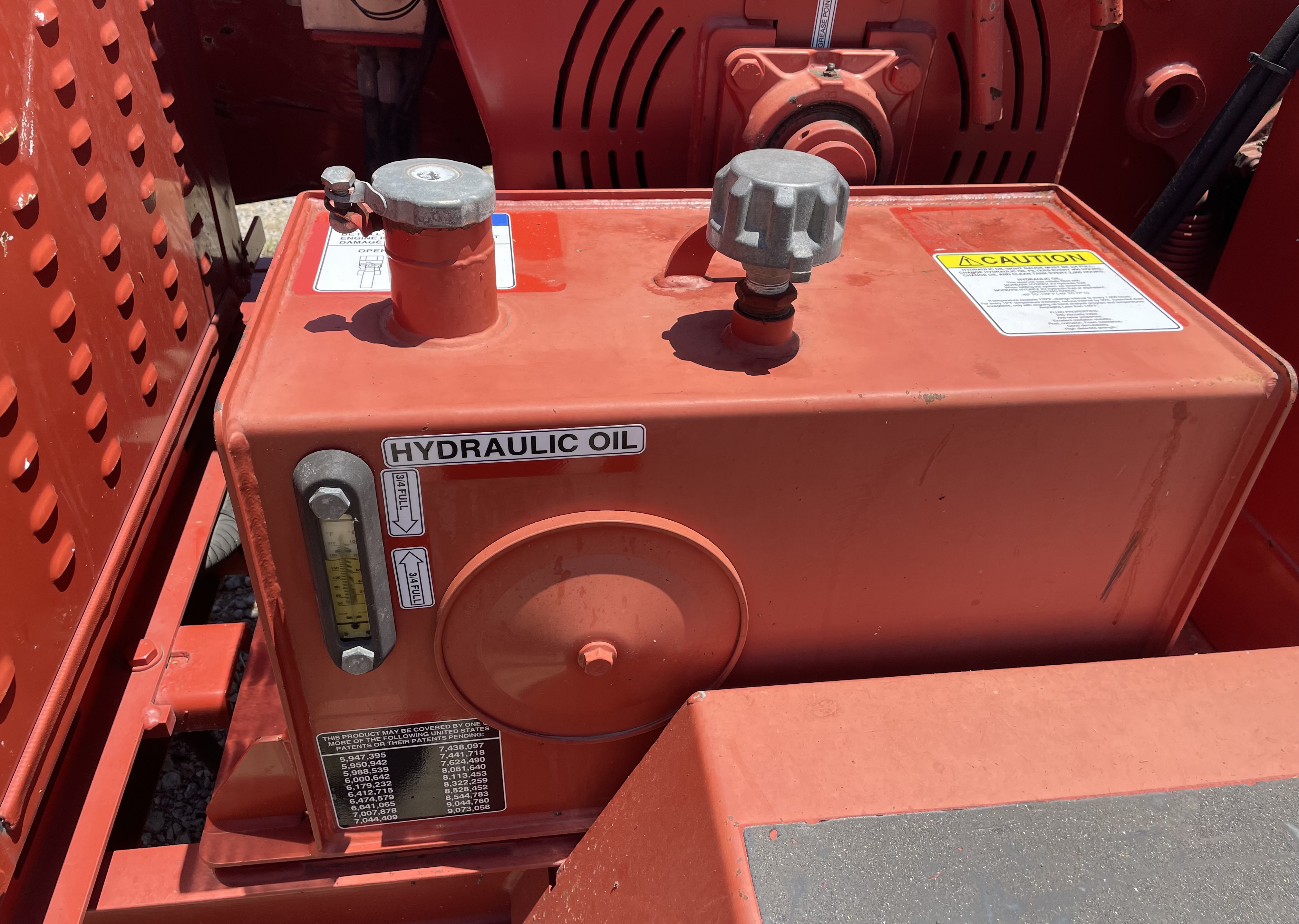

Hydraulic tank shut-off valve, drain plug and clean-out cover

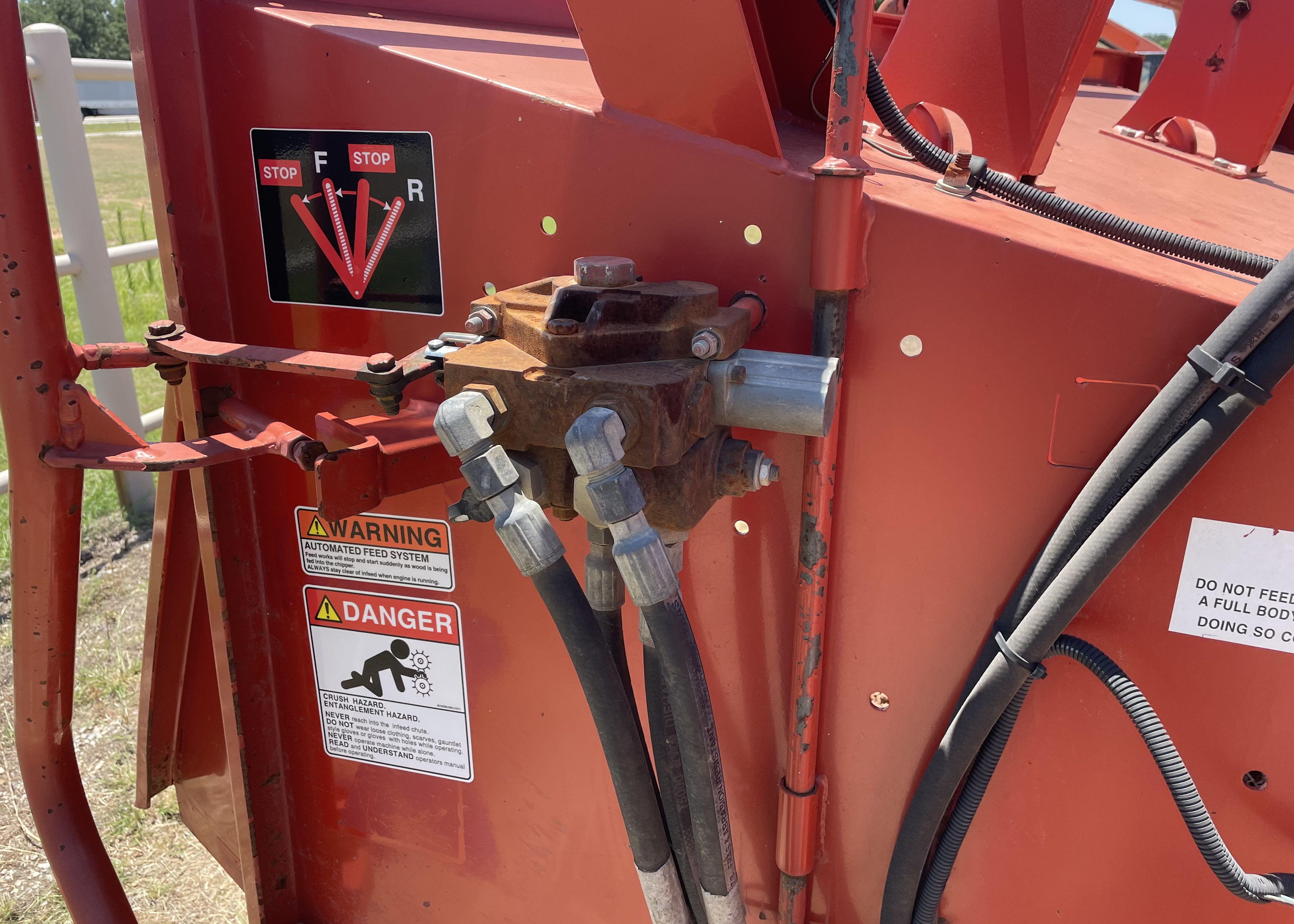

Live hydraulics; ball valve, pump, motor and control valve

Tube and support pad to mechanically raise and lower feed wheel using the drawbar jack

5" x 3" tubular steel telescoping drawbar with two 12" extensions

Morthane Paint System: A chemically cured, electrostatically applied urethane coating with high-gloss finish, built-in UV protection, chip and chemical resistance and corrosion protection.
