2020 GEHL RT135 - E003235
Get in Touch
Dealer Notes

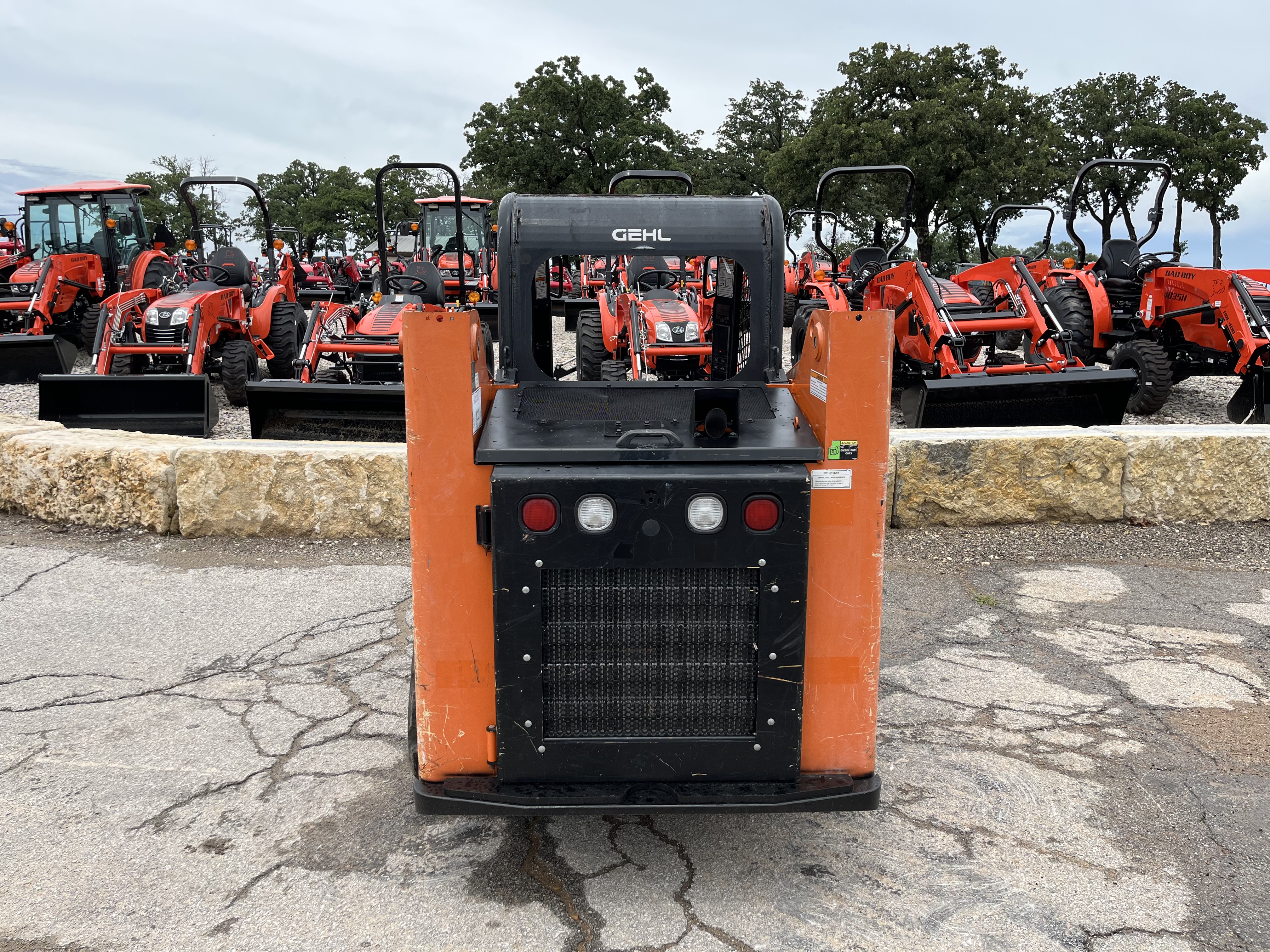

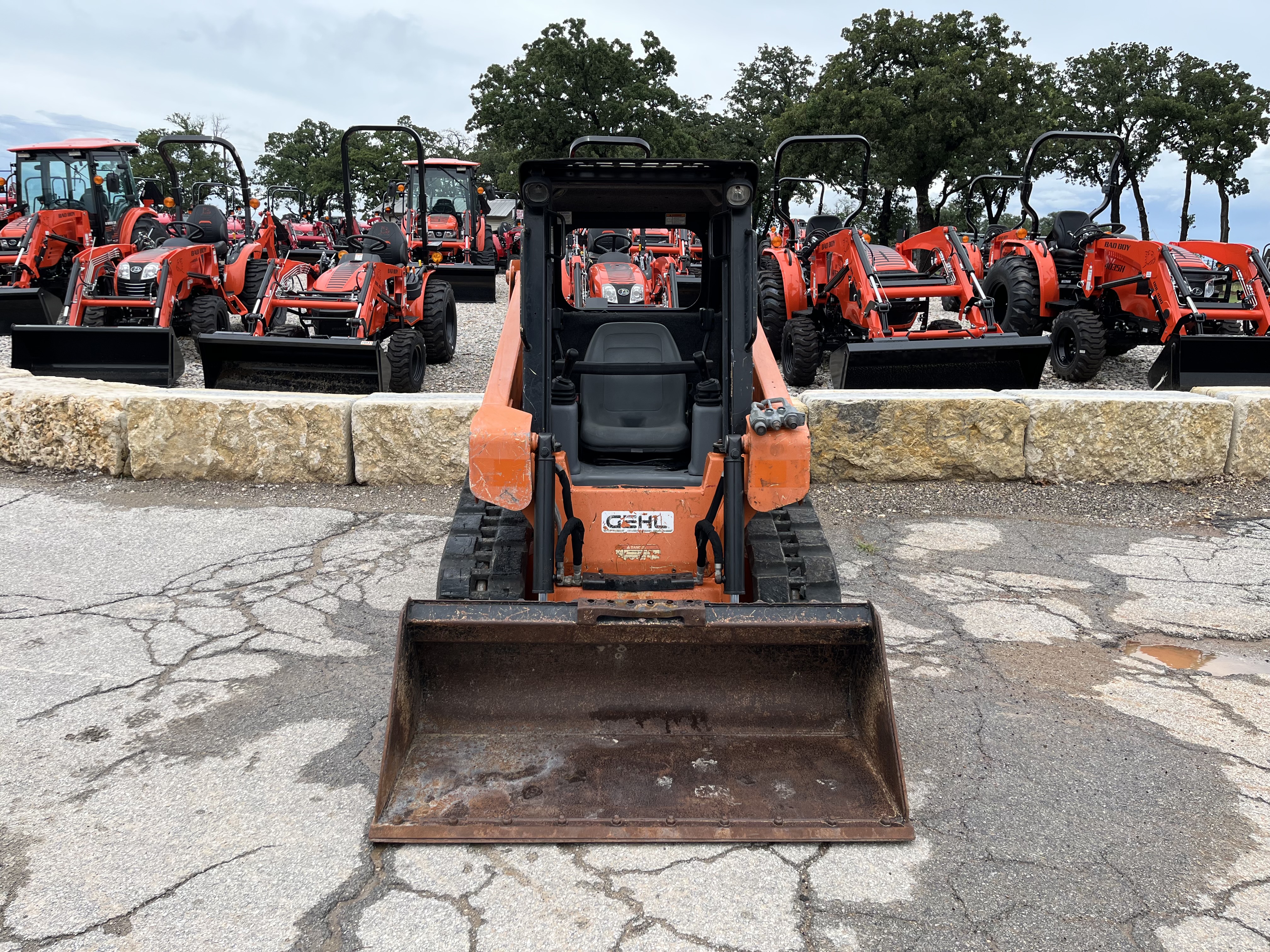

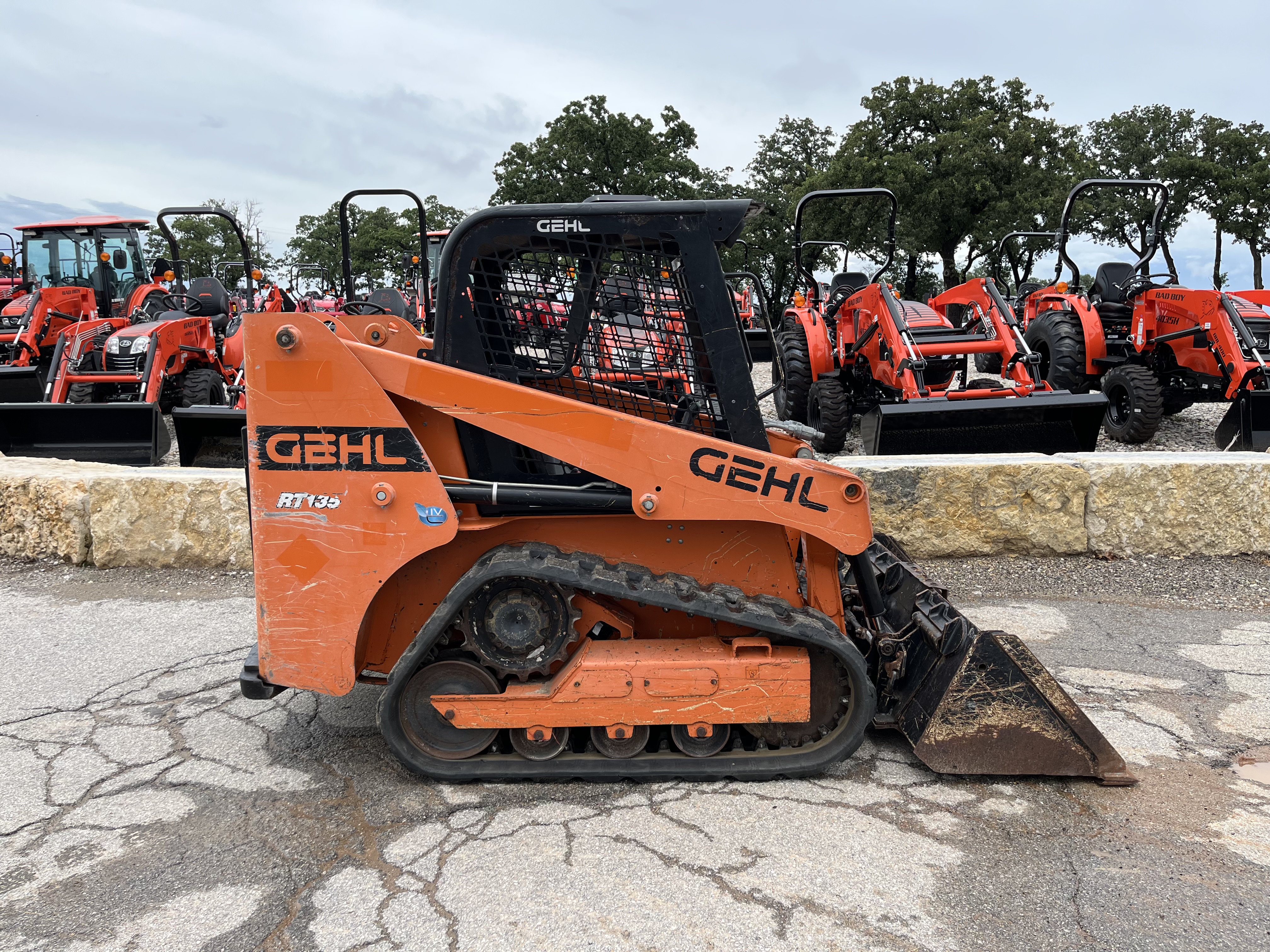

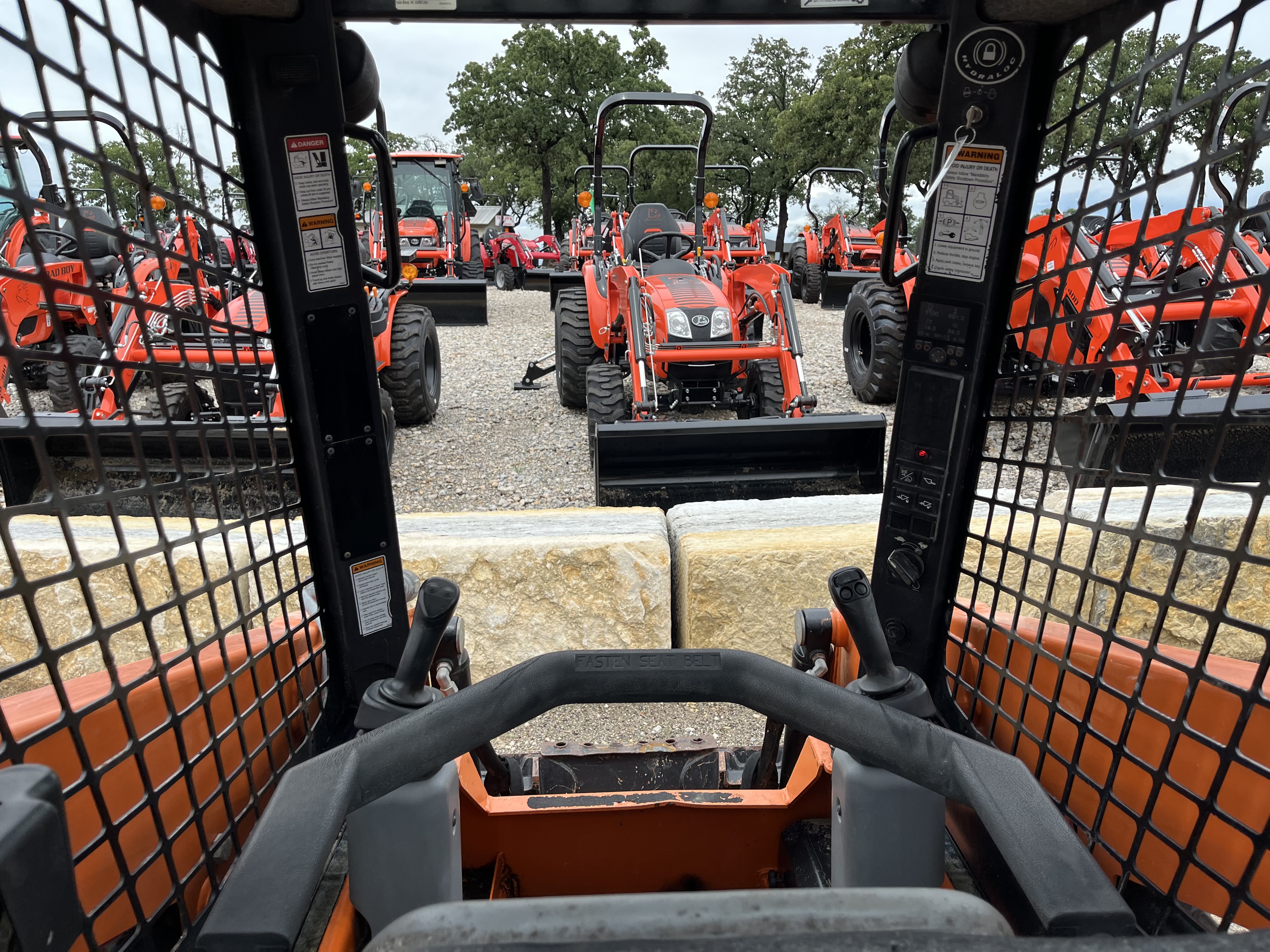

GEHL RT135 COMPACT TRACK LOADER 2020 Solid machine featuring auxiliary hydraulics, hand controls, Yanmar diesel engine and a 60" bucket. Machine has only 891 hours and is ready to go to work. Located in Weatherford TX with shipping and financing available.
Info
Industry
Agriculture
Make
GEHL
Model
RT135
Trim
Base
Year
2020
Price
23999
Stock Number
E003235
Category
HEAVY EQUIPMENT
Subcategory
Unspecified
Condition
Pre-Owned
Hour Meter

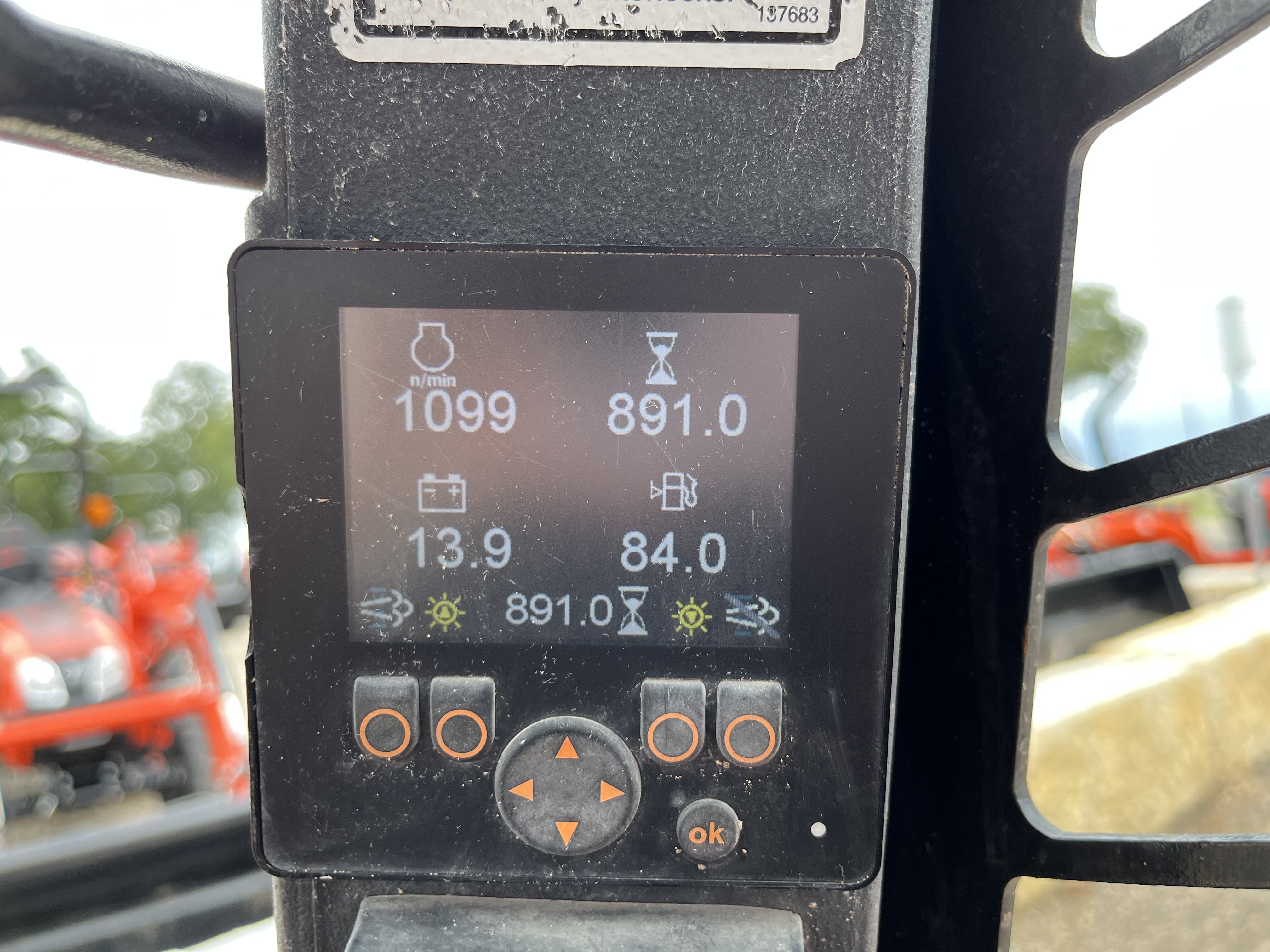

891
Serial Number
GHLRT135G0D302276
Specifications
Weight
Operating: 6510 lbs
Load Capacity
Operating at 35% Tipping Load: 1350 lbs | Operating At 50% Tipping Load: 1929 lbs | Tipping: 3858 lbs
Height
Overall Operating - Fully Raised: 144 in | To Hinge Pin - Fully Raised: 110 in | Overall to top of ROPS: 76 in | Specified: 59 in | Reach at Specified: 30 in
Notes
Dump angle at full height: 40 ° | Dump angle at specified: 75 ° | Carry Position: 6 in | Maximum Rollback Angle at Carry Position: 28 ° | Digging Position: 0.71 in | Angle of Departure with STD Counterweight: 28 ° | Track gauge: 45 in | Crawler base: 46 in | Clearance Radius - Front with Bucket: 76 in | Track Type / Track Rollers / Roller Type: Rubber / 4 / Steel | Ground Speed - Single Speed: 6 mph | Drawbar Pull/Tractive Effort: 7161 lbs | Bucket Breakout - Tilt Cylinder: 3501 lbs | Bucket Breakout - Lift Cylinder: 3730 lbs | Motor Type: Radial Piston | Standard flow - Auxiliary hydraulics: 17 US gpm
Length
Overall with bucket: 121 in | Overall without Bucket: 93 in
Ground Clearance
8 in
Width
Track Shoe: 12 in | Overall less bucket: 57 in | Bucket: 60 in
Engine
Brand: Yanmar | Model: 4TNV88
Power/Horsepower
46.60 Hp | 33.20 kW
Battery
Voltage: 12 V
Electrical
Cold Cranking Amps at Temperature (CCA): 800 A | Alternator - Voltage / Ampere: 12 V / 100 A
Oil Capacity
Pan: 2 US gal
Fuel Capacity
Tank: 16 US gal | Hydraulic Tank: 9 US gal
Cylinders
Number: 4
Fuel Type
Diesel
