2026 ASV RT-40 - E003110






Get in Touch
AT A GLANCE
Advertised price is a monthly payment based on 48 months at 0% APR. Longer terms and lower payments are available. All financing subject to credit approval. ASV RT-40 COMPACT TRACK LOADER W/ 48" BU
Industry
Agriculture
Make
ASV
Category
CONSTRUCTION
Year
2026
Model
RT-40
Trim
Base
MSRP
$1,348
Stock
E003110
Subcategory
CONSTRUCTION
Dealer Notes
Advertised price is a monthly payment based on 48 months at 0% APR. Longer terms and lower payments are available. All financing subject to credit approval.

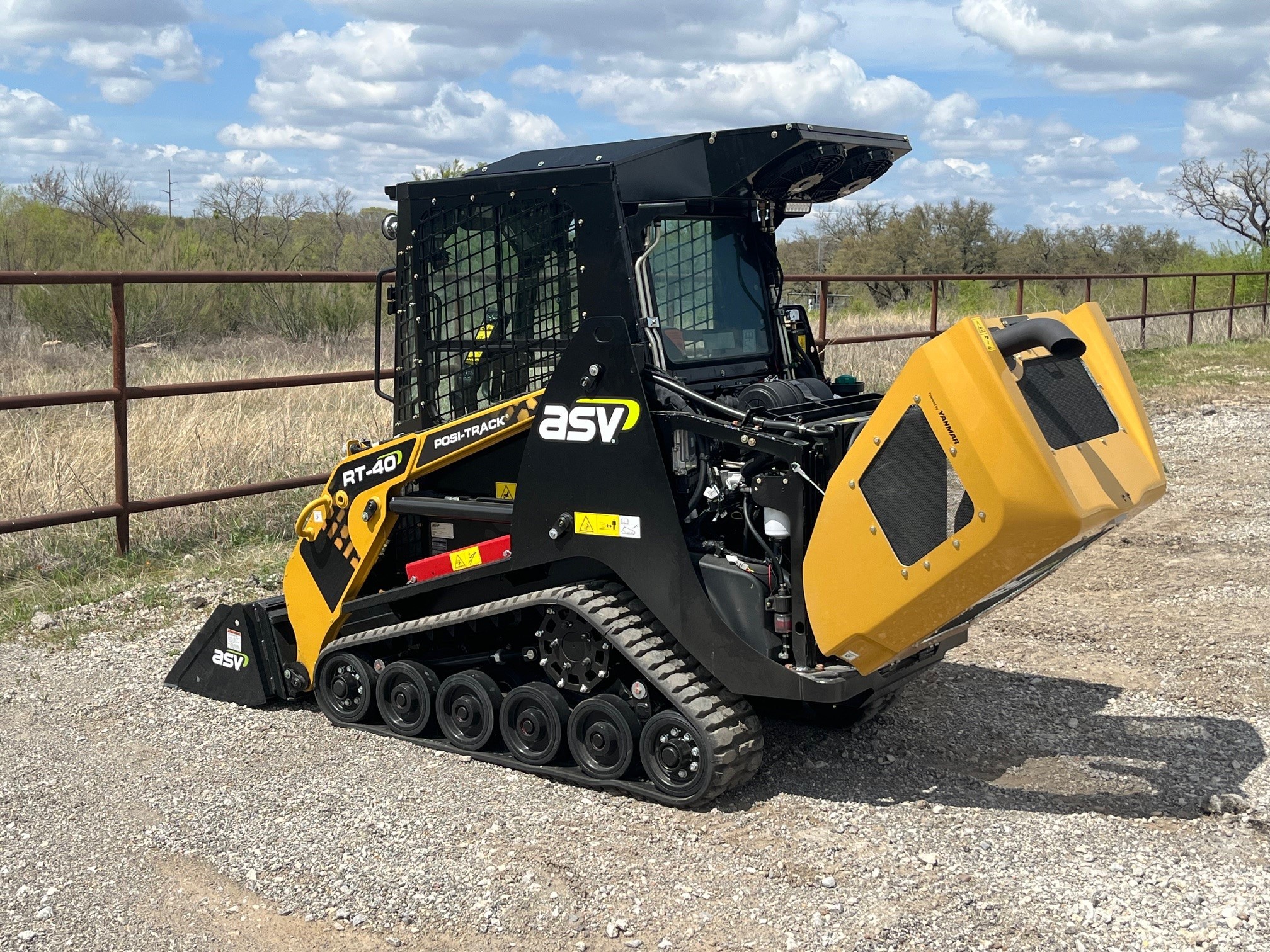

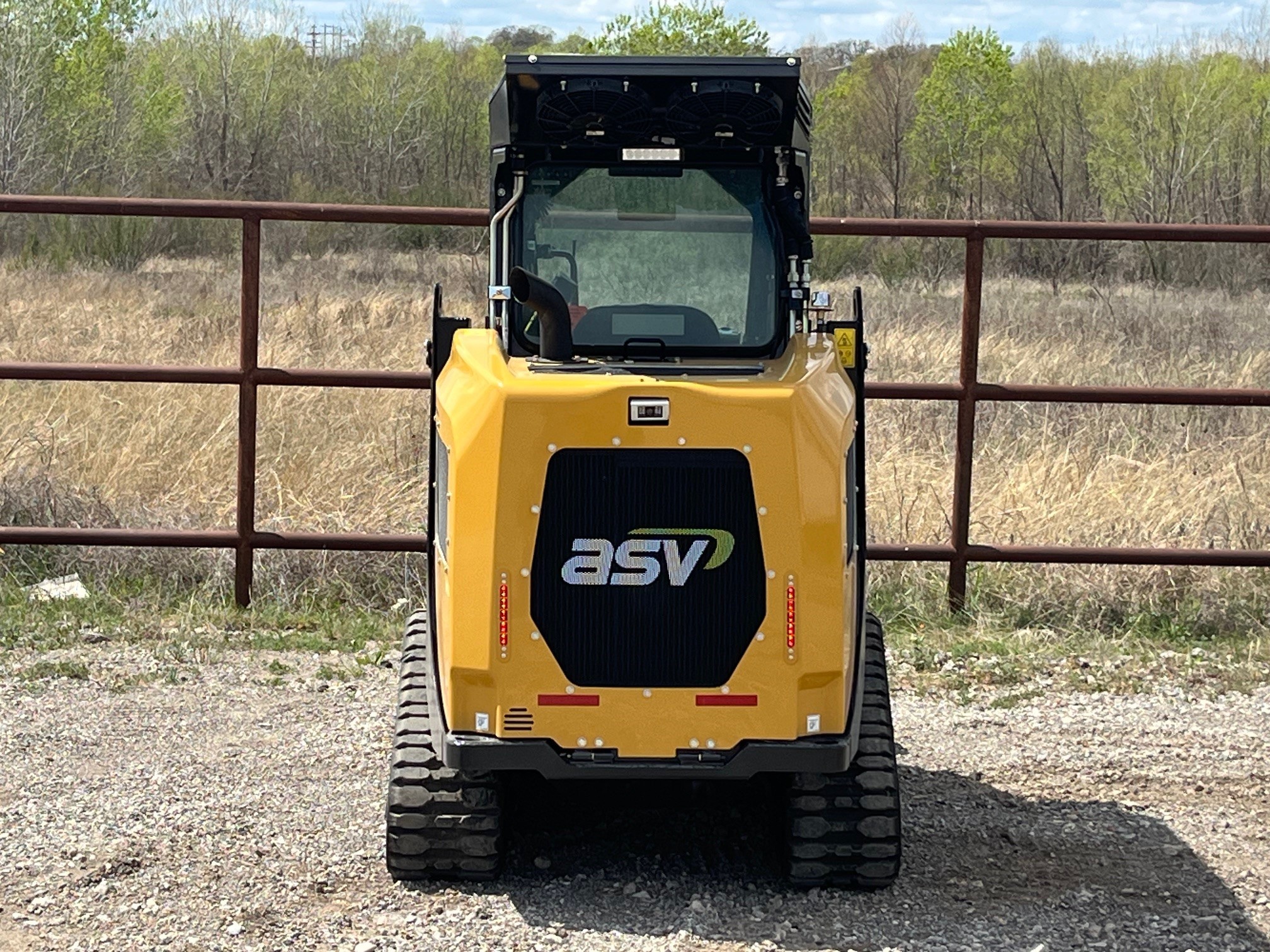

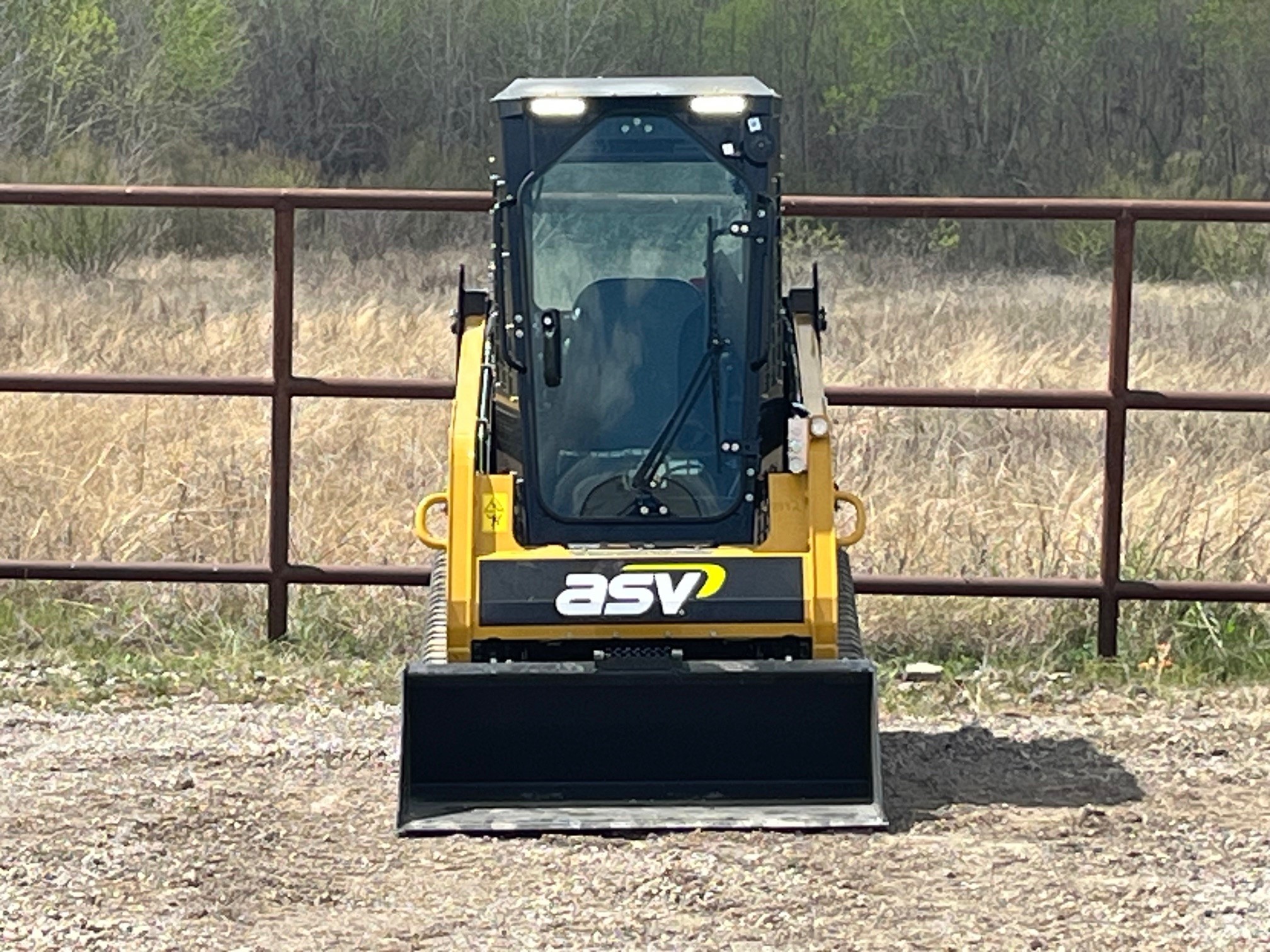

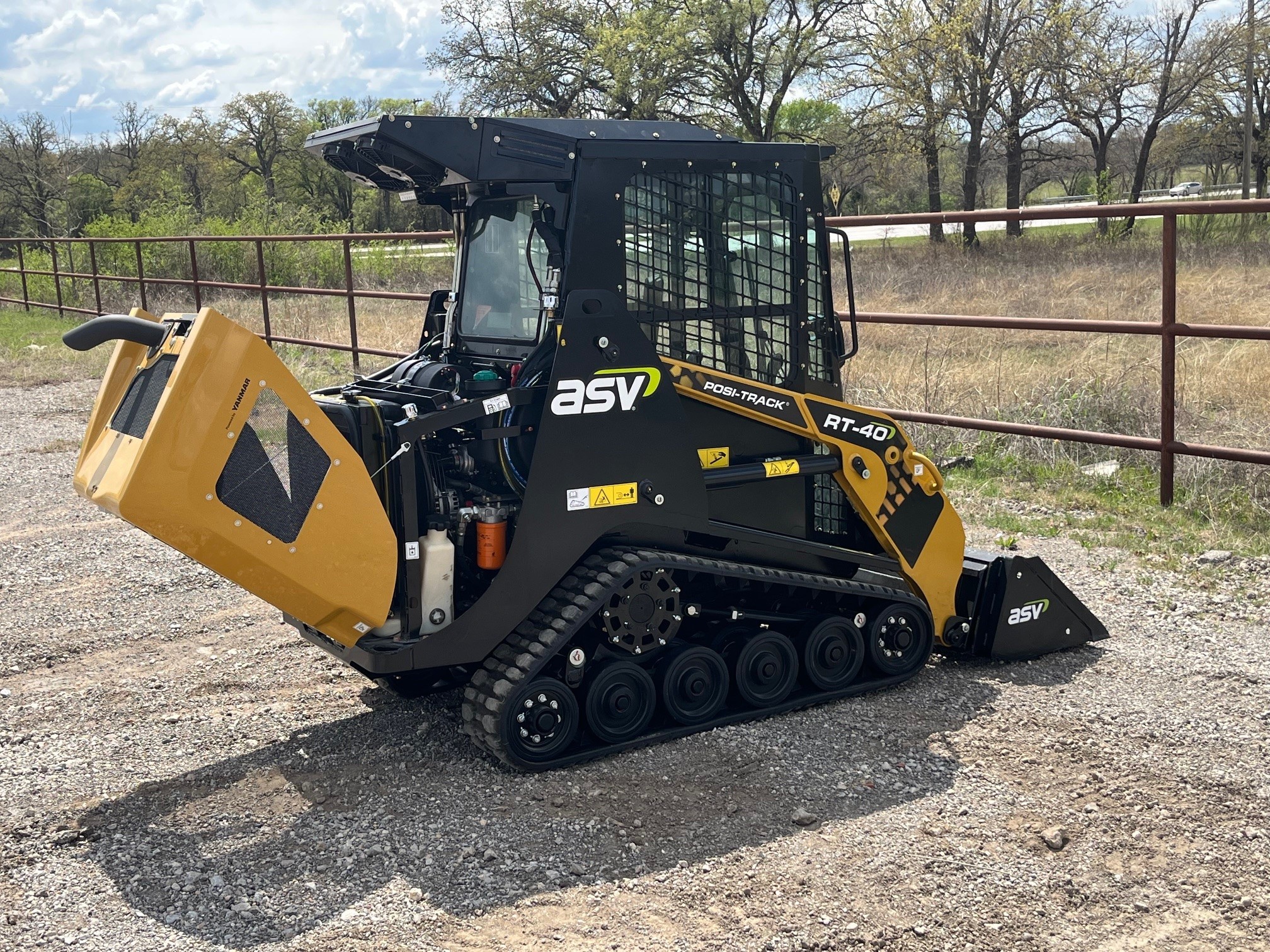

ASV RT-40 COMPACT TRACK LOADER W/ 48" BUCKET 2026
- 48" BUCKET - SN: 3037013
- ENGINE: 3-CYLINDER, TURBO CHARGED
- ENGINE POWER: 38.2 HP
- TIPPING LOAD: 2660 LBS
- OPERATING WEIGHT: 4005 LBS
- CABBED
Caterpillar , John Deere , Bobcat , Kubota , JCB , Takeuchi , Case ,
Wacker Neuson ,
Info
Condition
New
Availability
Available
Serial Number
ASVRT040PTDS08776
Specifications
Load Capacity
Rated Operating Capacity @ 35%: 931 lbs | Rated Operating Capacity @ 50%: 1330 lbs | Tipping Load: 2660 lbs
Fuel Type
Diesel
Cylinders
3-cylinder
Torque
Torque Peak: 93.6 ft-lb
Steering
Loader Control: Right-hand pilot hydraulic joystick controls loader lift/tilt, with intermittent control of auxiliary hydraulics | Drive Control: Left-hand pilot hydraulic joystick controls machine speed and direction
Oil Capacity
Engine Oil (Including Filter): 6 quarts | Hydraulic Tank: 3.4 gal | Engine Coolant: 1.8 gal
Length
Full Length: 112.7 in | Length of Track on the Ground: 55 in
Ground Clearance
10.8 in
Brakes
Parking Brake: Actuated by dash-mounted switch
Alternator
Charging System: 80 Amp Alternator
Interior

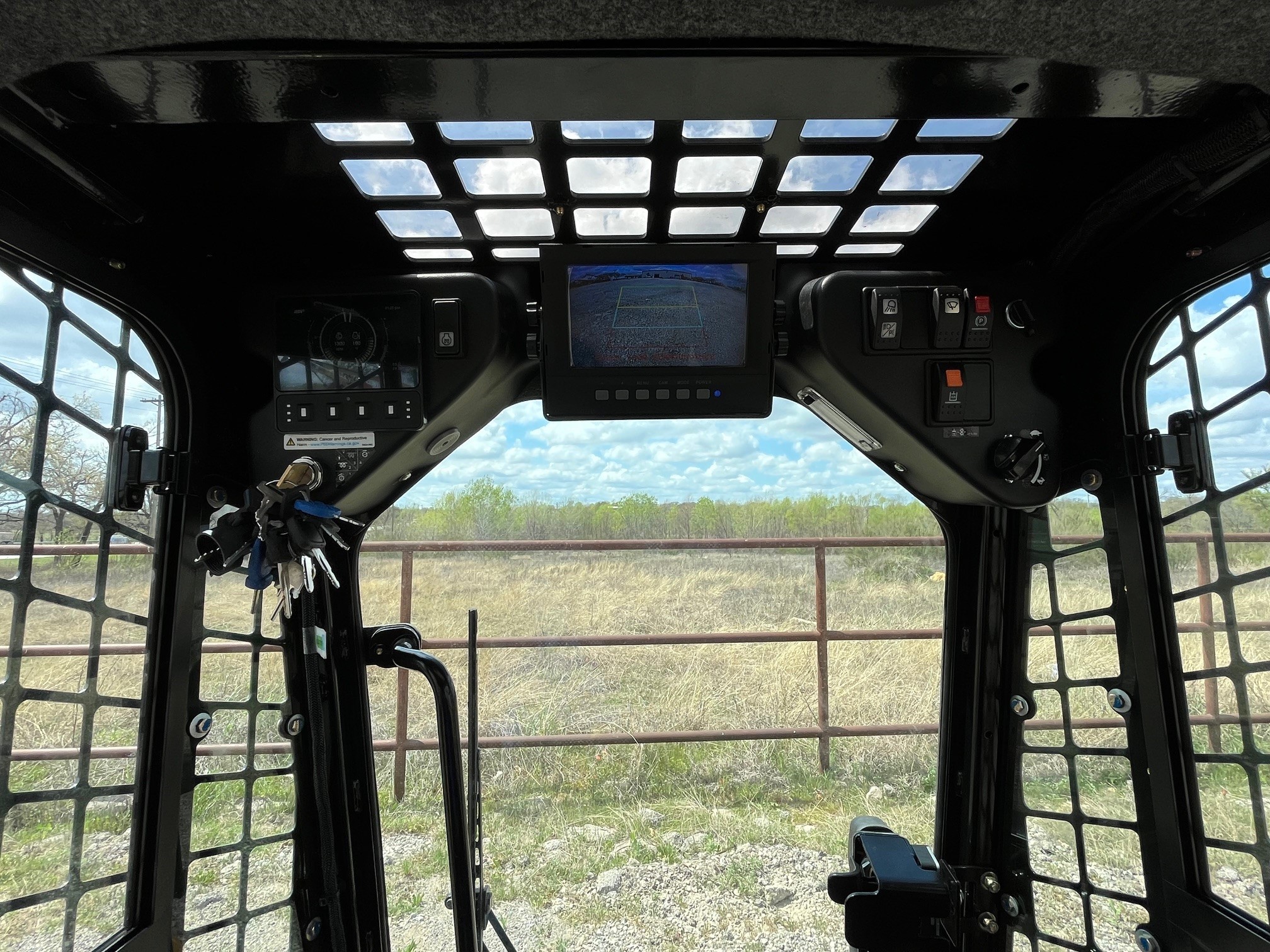

Multi-Functional Color 4.3 Inch Display/Indicator: Engine RPM, Engine Coolant Temperature, Engine Oil Pressure, Hydraulic Oil Temperature, Battery Voltage, Hour Meter, Fuel Level, Trip Meter, Engine Diagnostics, System Monitoring, Fault Logging and More | Outlets/Convenience: 1-12 V port inside operator station / 1 - 12 V power ports | Standard Features: Horn, backup alarm, rear window | ROPS Meets ISO 3471 | FOPS Meets ISO 3449 | Operator Restraint Anchorage Meets ISO 6683, CAL OSHA 1596
Notes
Ground Pressure: 3.3 psi | Ground Contact area: 1210 in2 | Pump Capacity: 13.3 gpm | System Pressure, Max: 3000 psi | Auxiliary Hydraulic Controls: Variable flow via joystick button or continuous via console switch, mode selectable via dash-mounted switch | Couplers: Push to connect quick couplers mounted on manifold block. Pressure relief valve on block
Family/Type
Compact track loader
Fuel Capacity
13 gal
Engine
YANMAR 3TNV86CT
Displacement
95.7 in3
Drivetrain
Drive System: Two hydrostatic direct drive sprockets controlled by a single joystick | Track Drive Sprocket: Elevated with low friction, replaceable sprocket rollers | Undercarriage suspension: 2 independent torsion axles per undercarriage
Width
48.3 in | Track Width: 11 in
Wheels
Roller Wheels: 12 high-density polyurethane and rubber wheels per track. Wheels include sealed bearings | Roller Wheel Diameter: 10 in
Electrical
Nominal Charge: 12V | Illumination: 2 - Fixed forward-facing LED lights, 1 - Adjustable rear-facing LED light, 1 - Interior light, 2 - Red LED tail lights | Wiring: Pre-wired for all factory-available accessories
Starter
Engine block heater
Seats

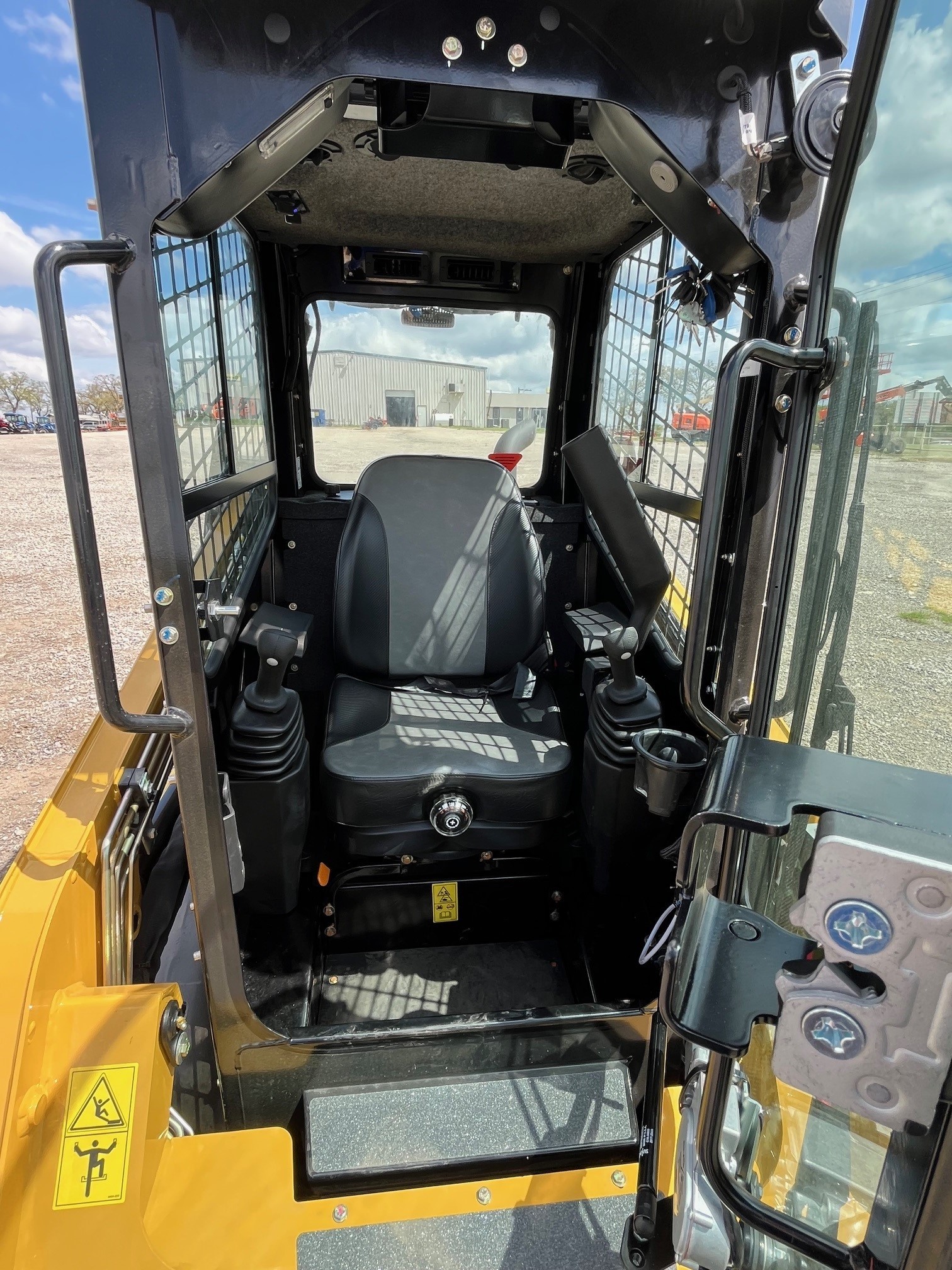

Adjustable contour vinyl seat with built-in operator presence switch, lap bar and 2 in wide seat belt
Style
Loader Arms: Radial
Engine Type
Diesel, 3-cylinder, turbo charged | Cooling System: High efficiency oil cooler beside engine radiator, not stacked
Power/Horsepower
Engine Power: 38.2 hp | Gross Horsepower: 38.2 hp
Transmission
Max. Travel Speed: 7.1 mph
Throttle
Engine speed: Hand-operated rotary throttle
Height
Hinge Pin Height: 101 in | Machine Height: 75.5 in.
Weight
Operating Weight: 4005 lbs
Tires
Track Type: General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads. Single row of track drive lugs molded in. Turf track with smooth tread available as an option
Battery
590 CCA
PTO Type
Standard Features: Manual quick-attach
