Description

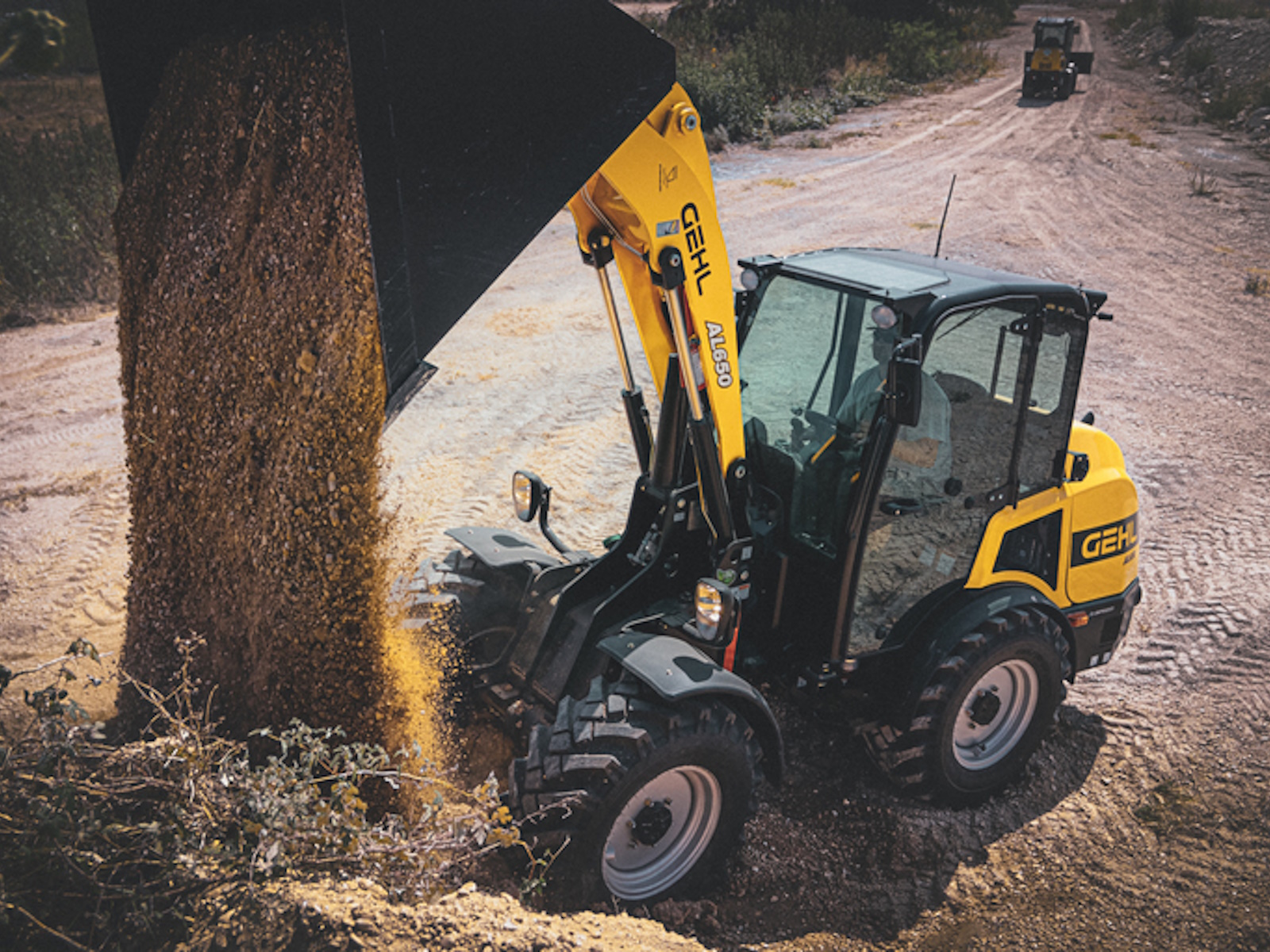

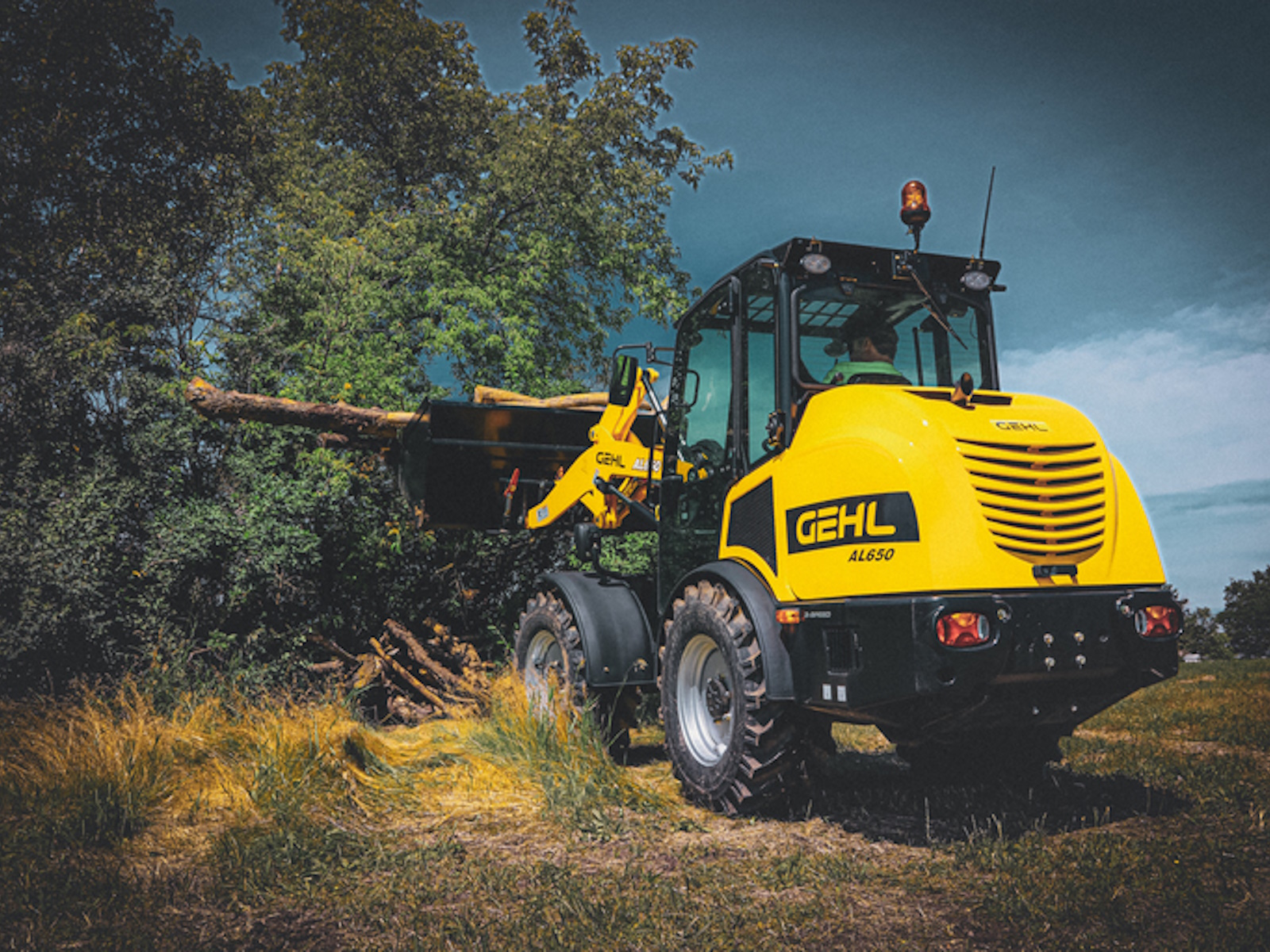

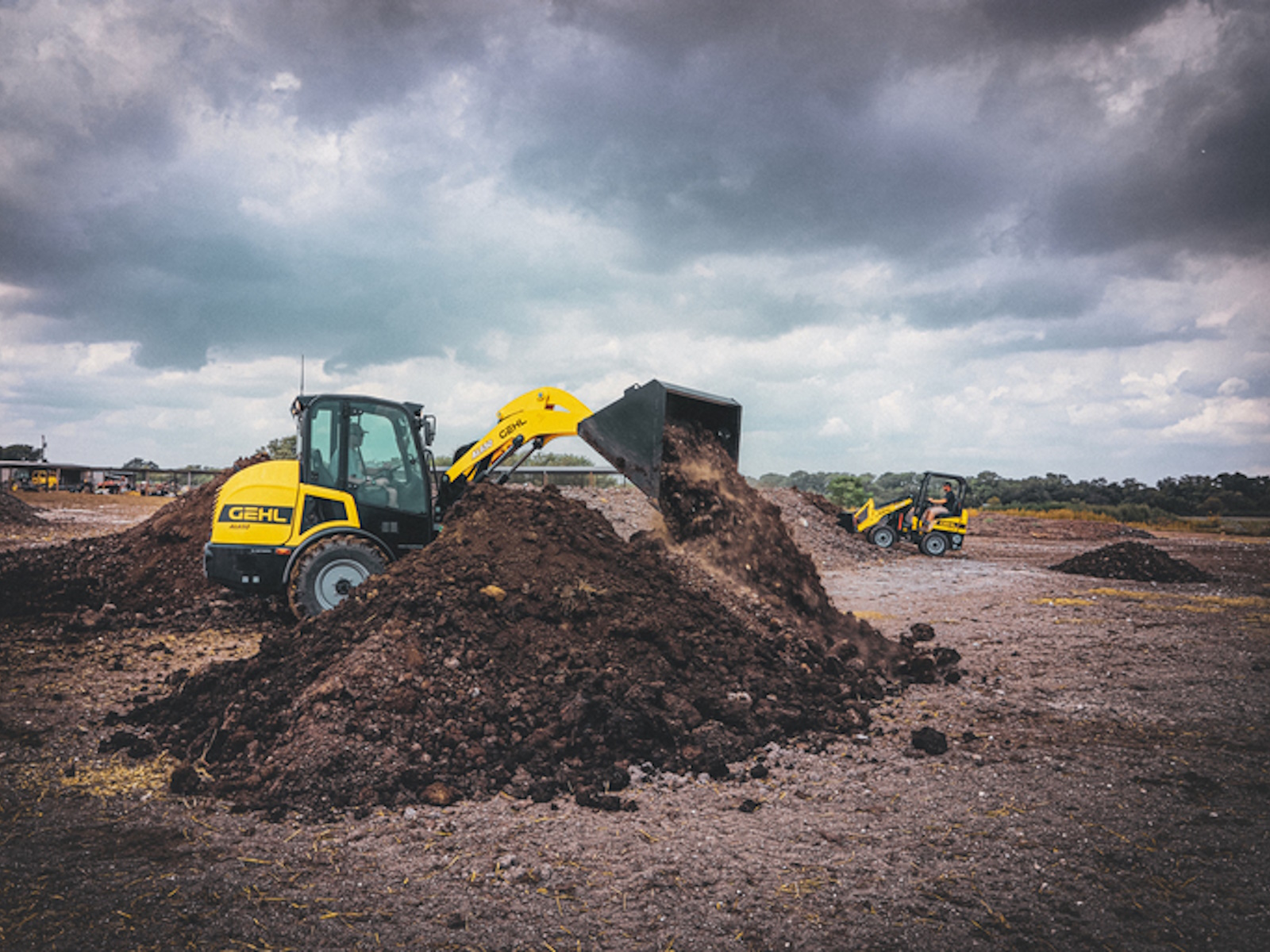

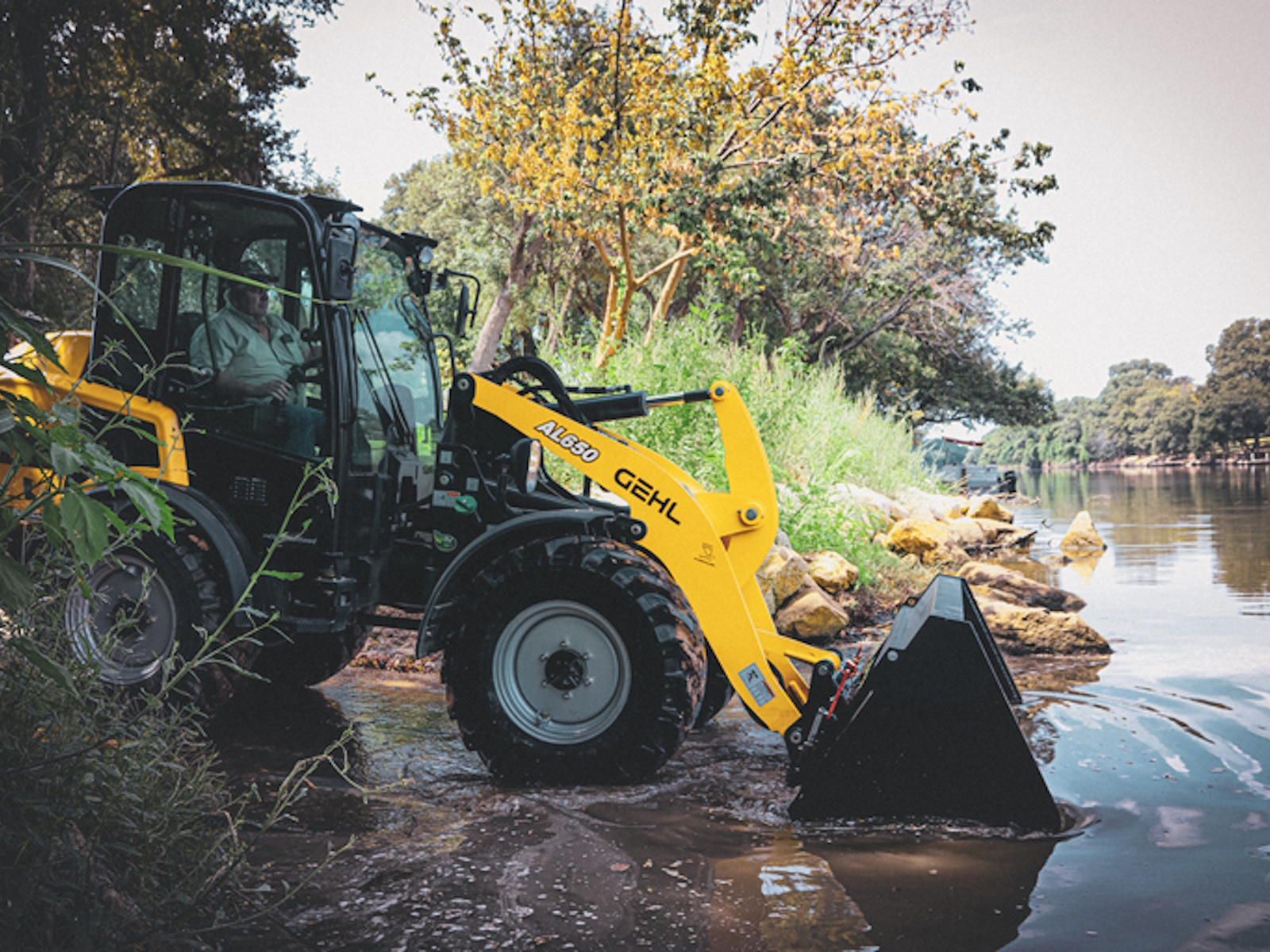

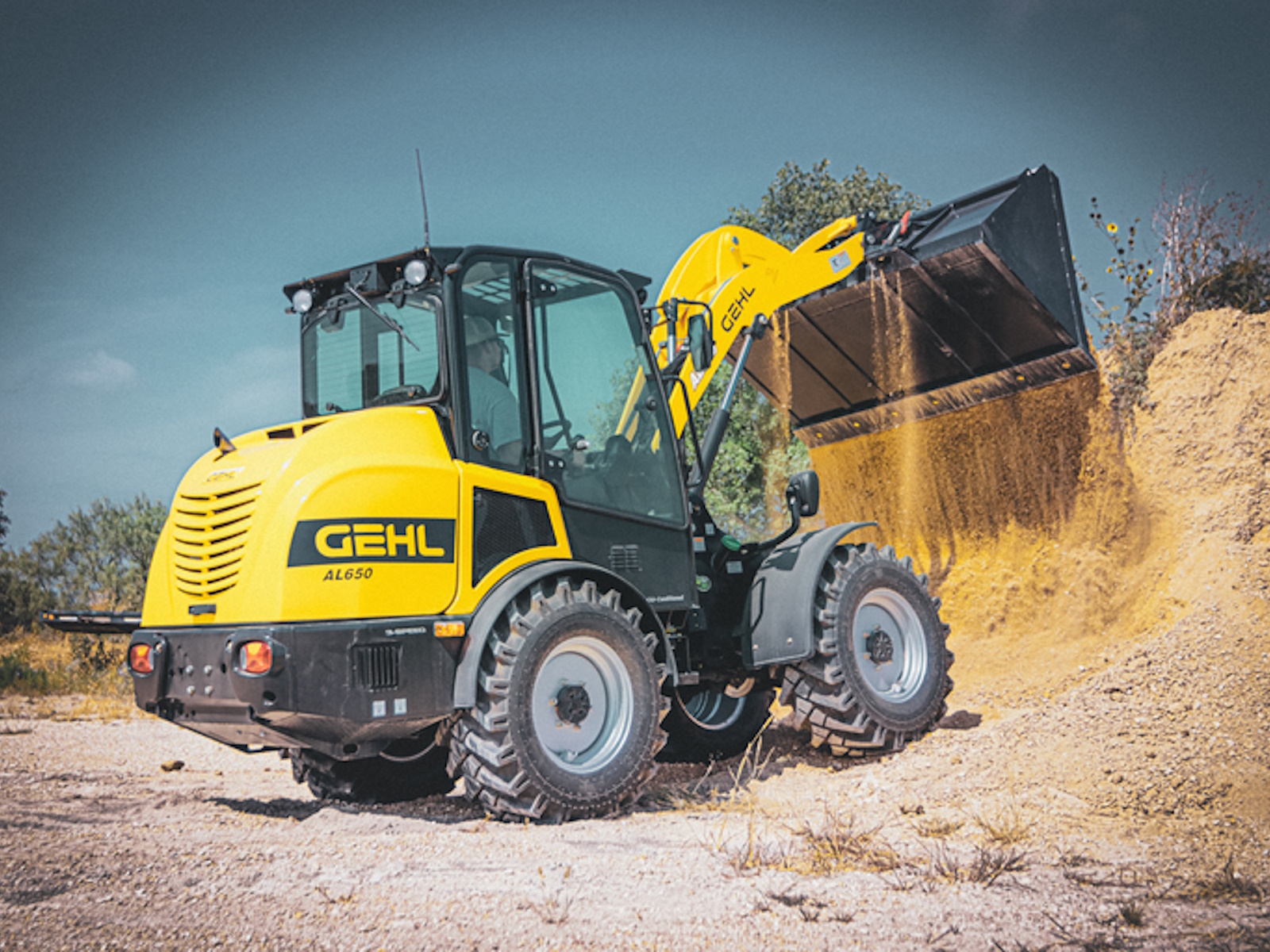

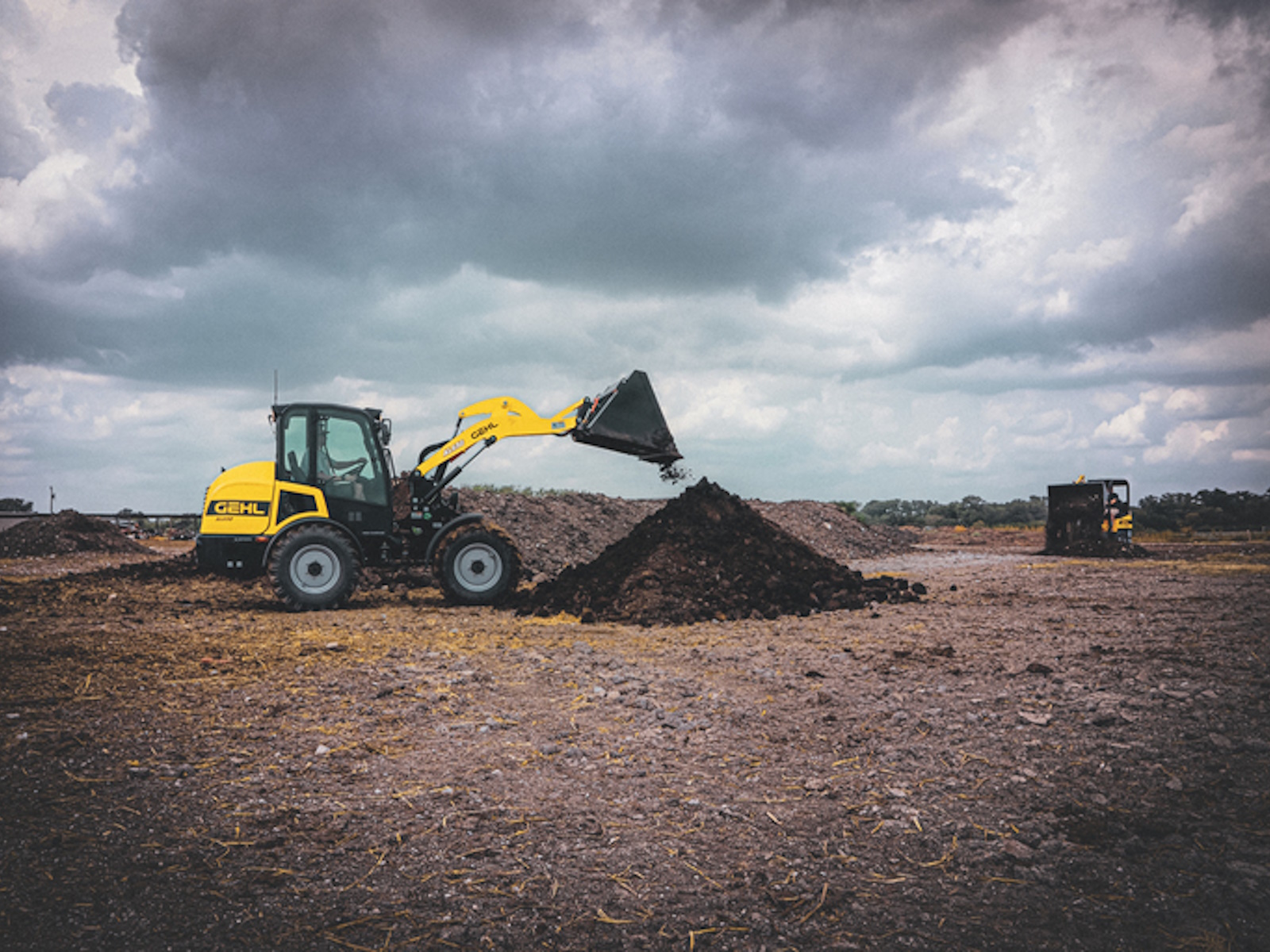

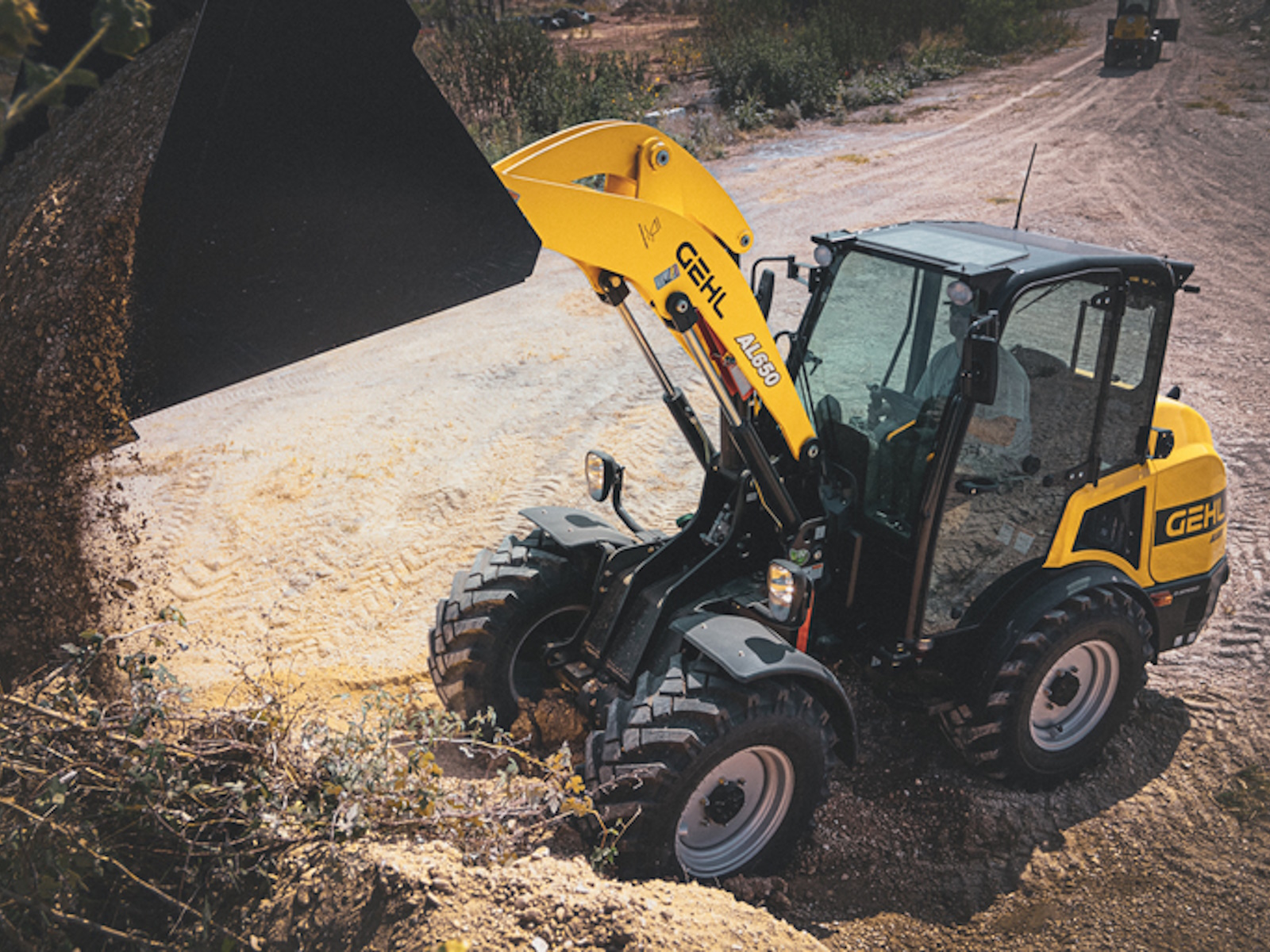

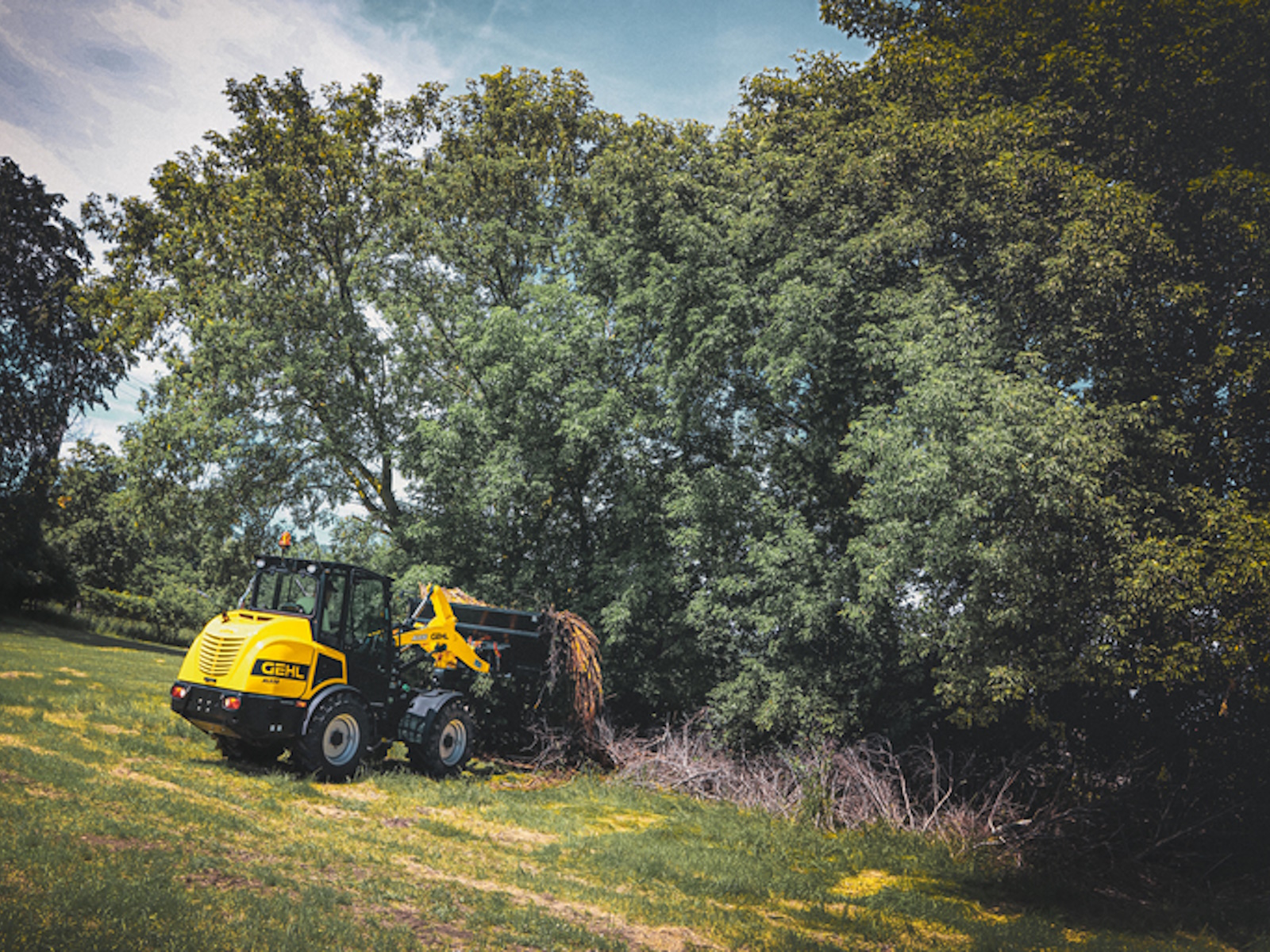

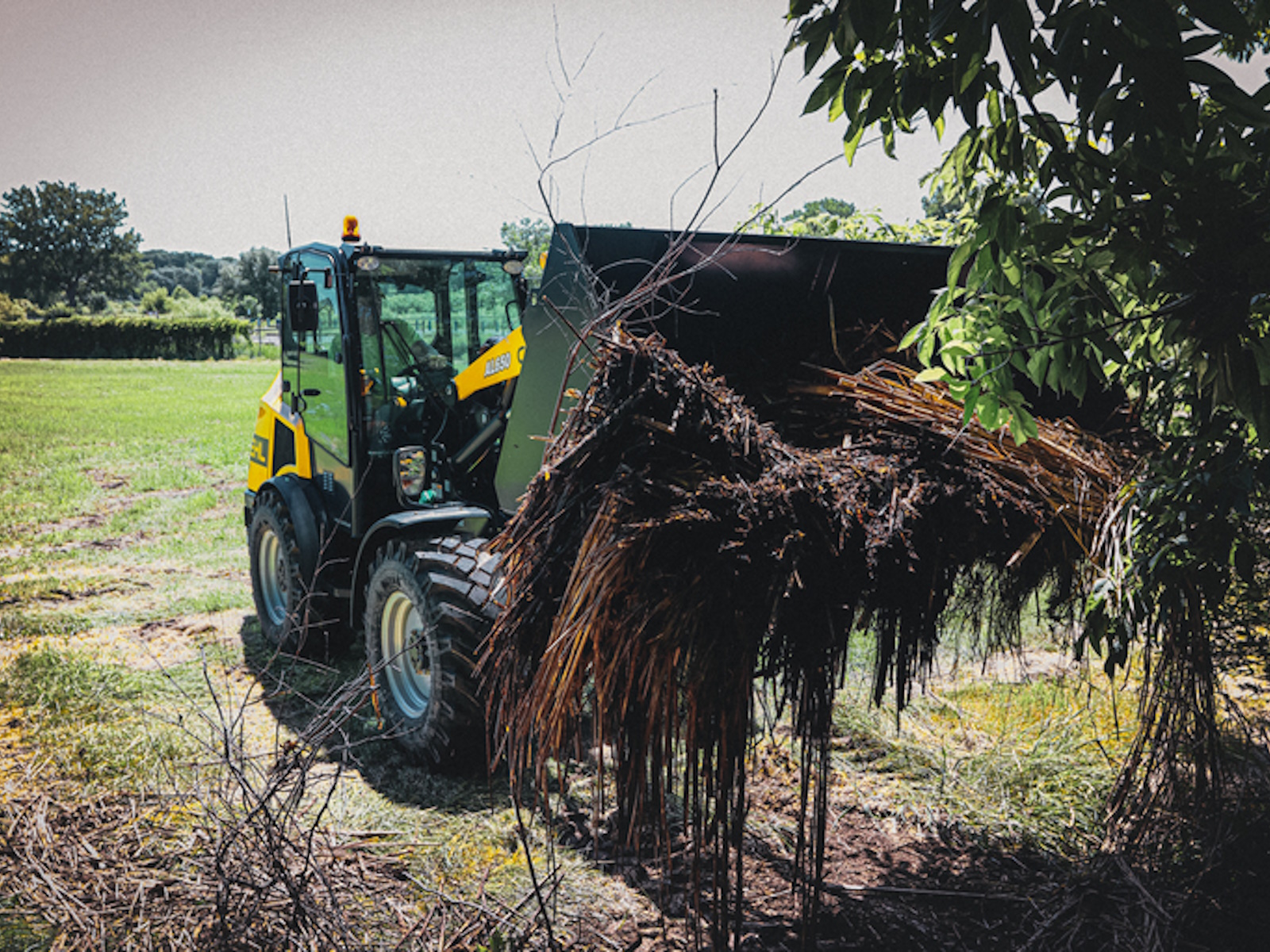

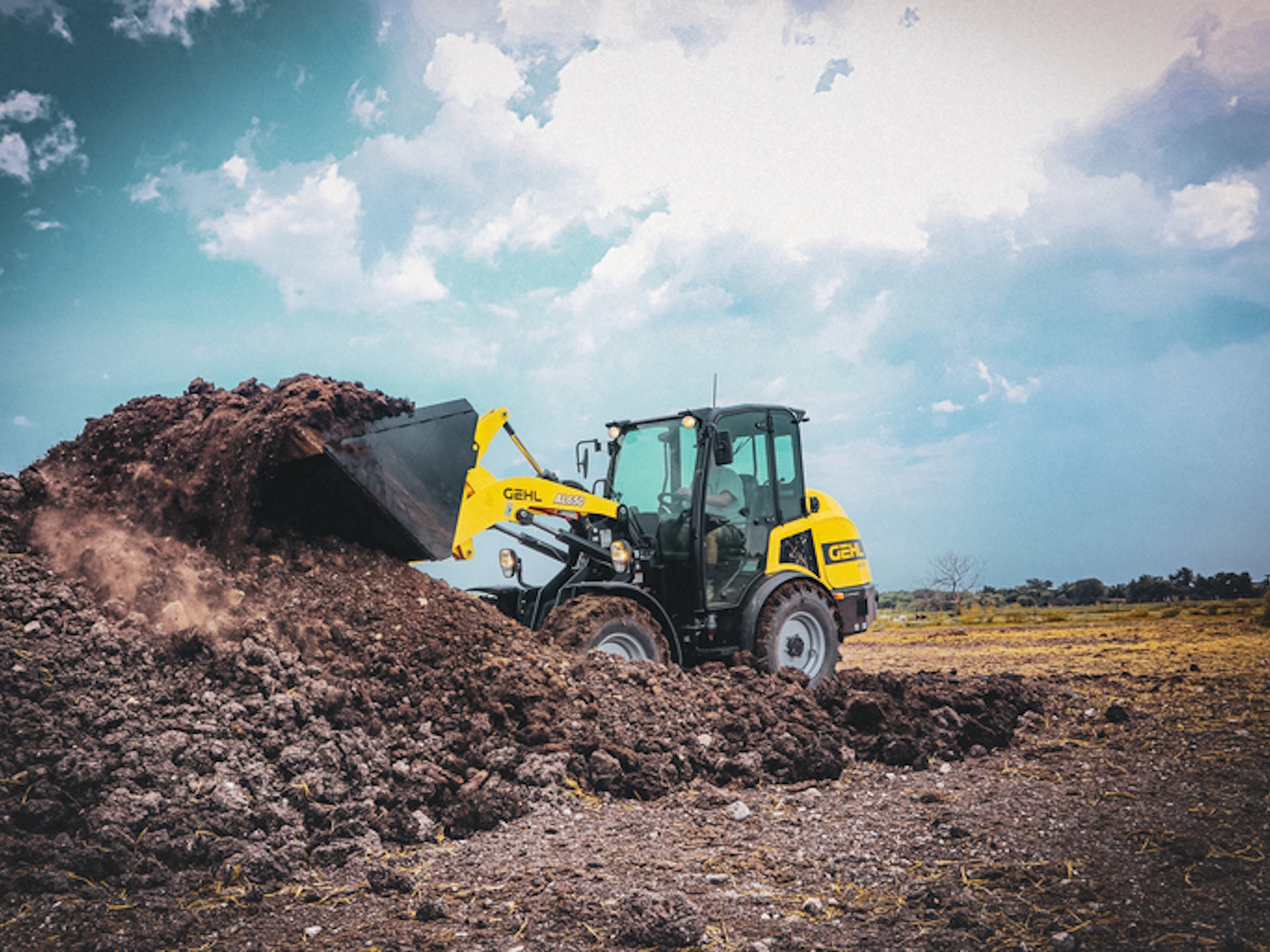

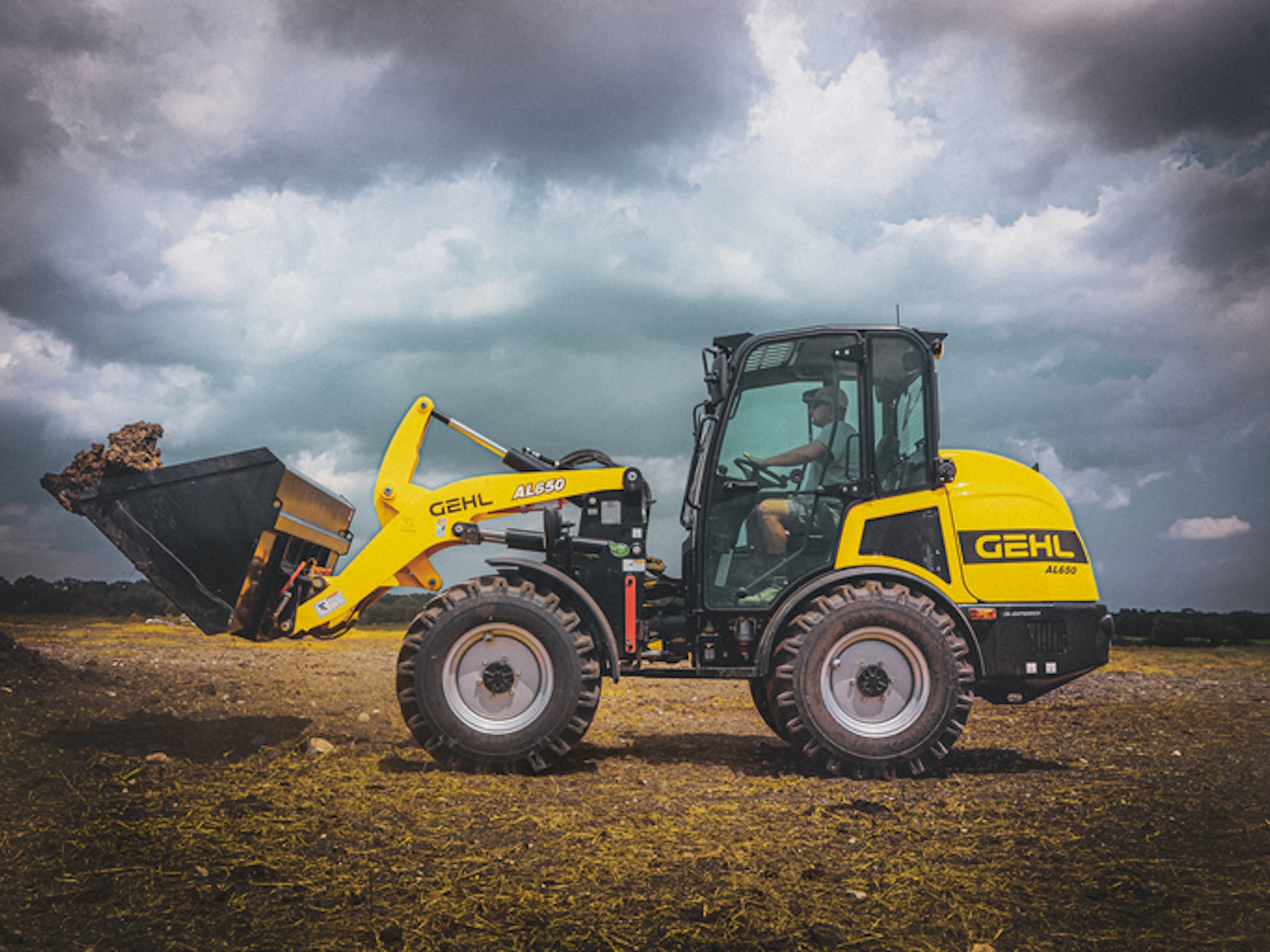

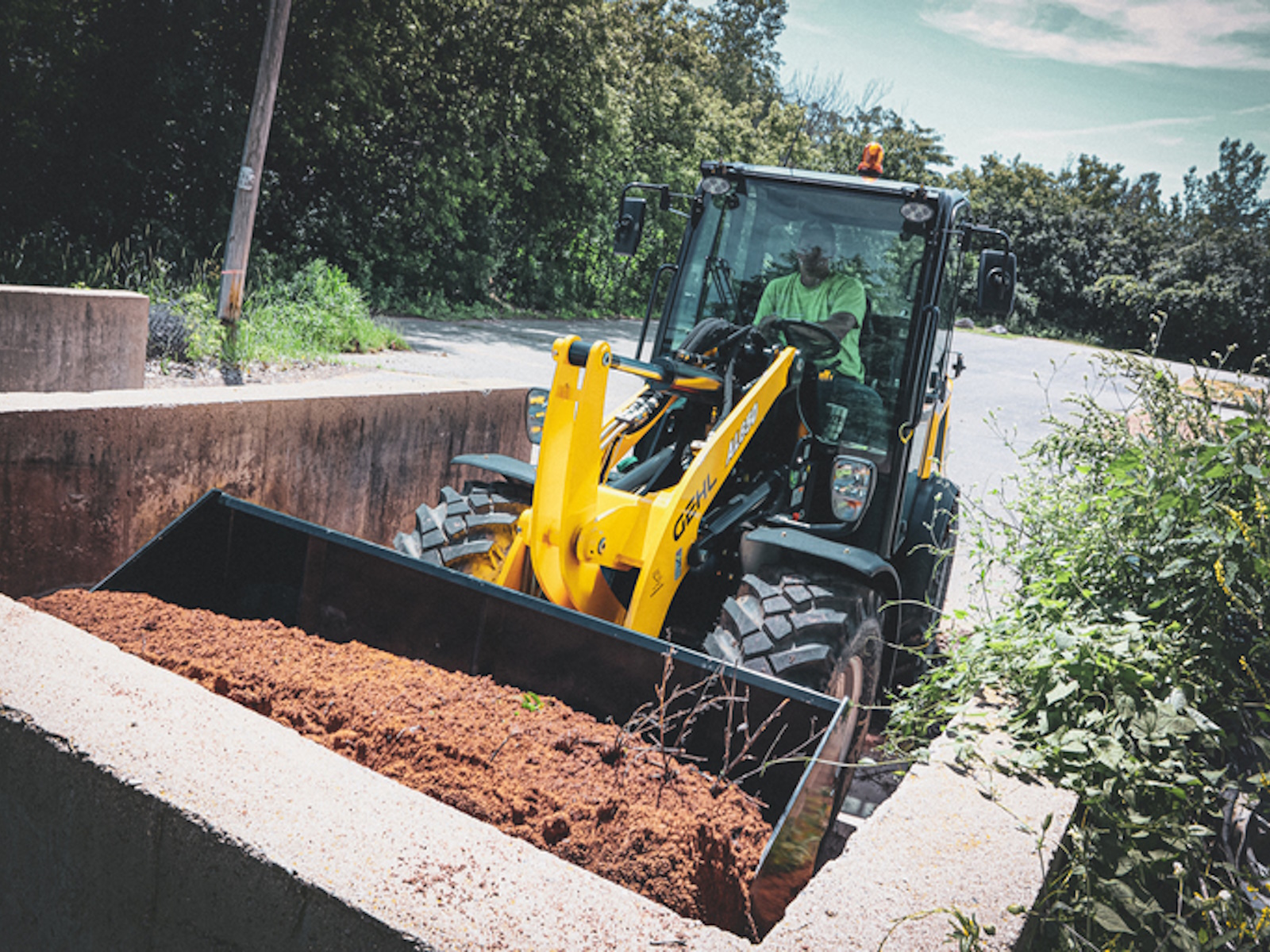

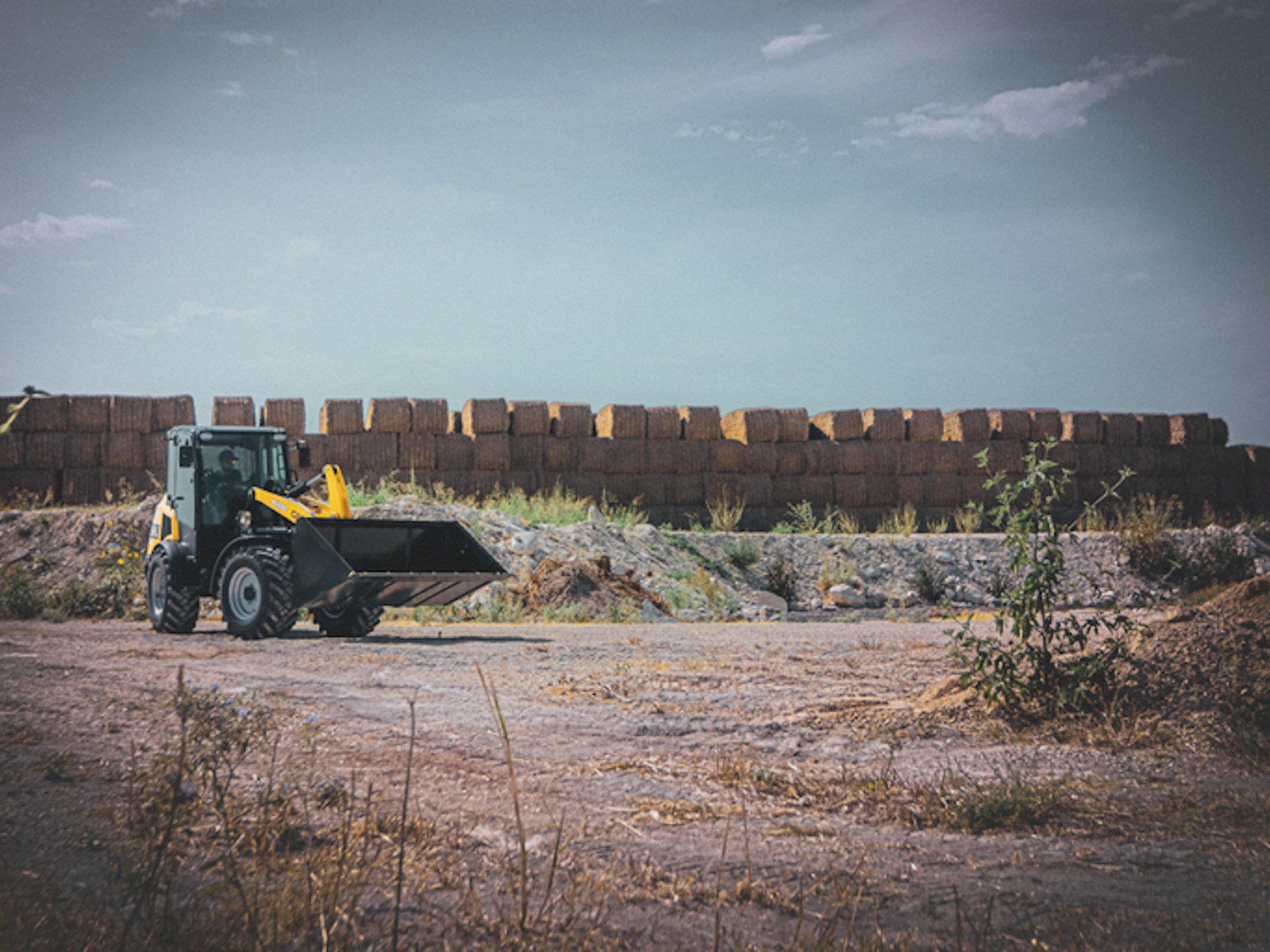

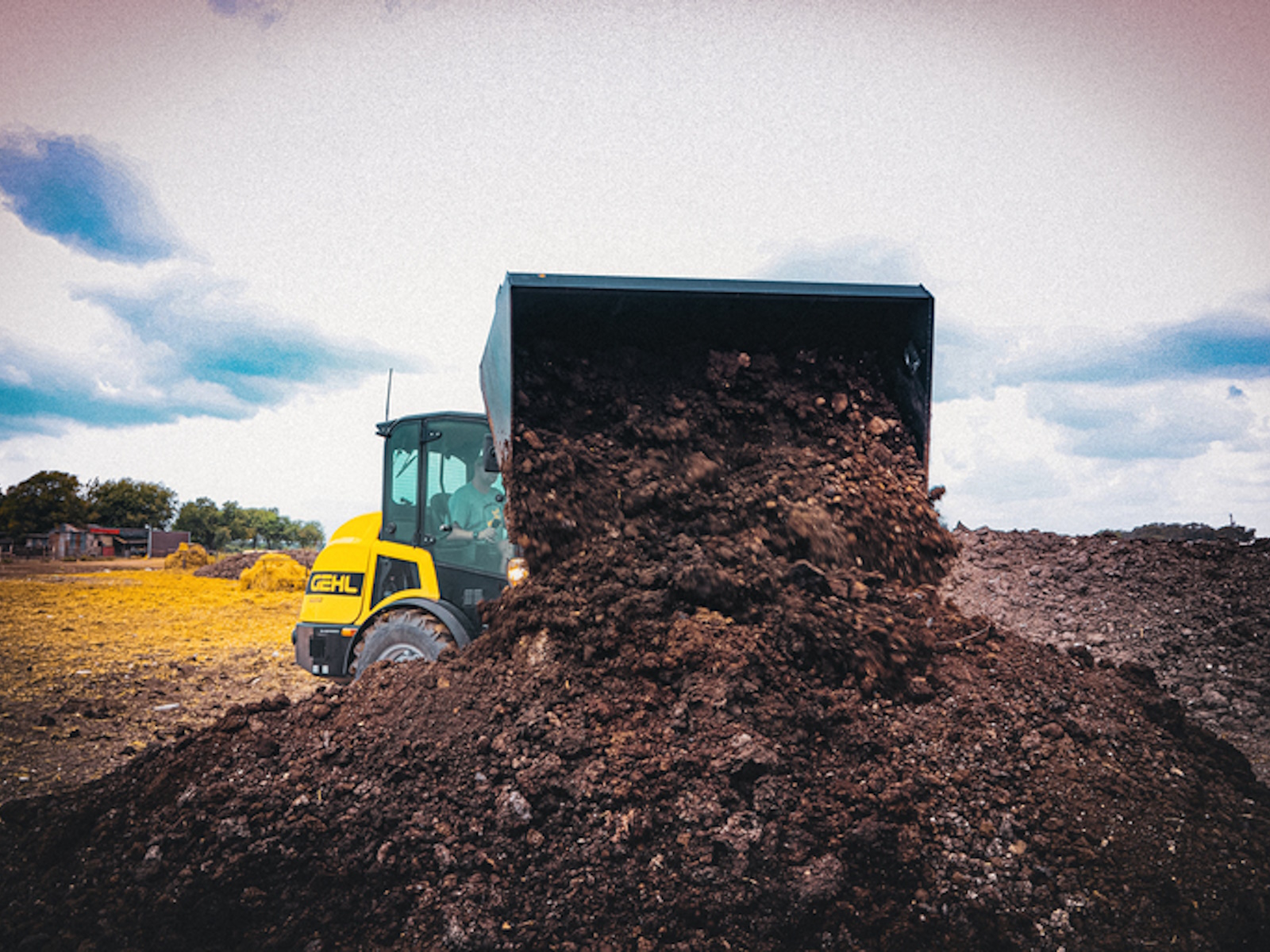

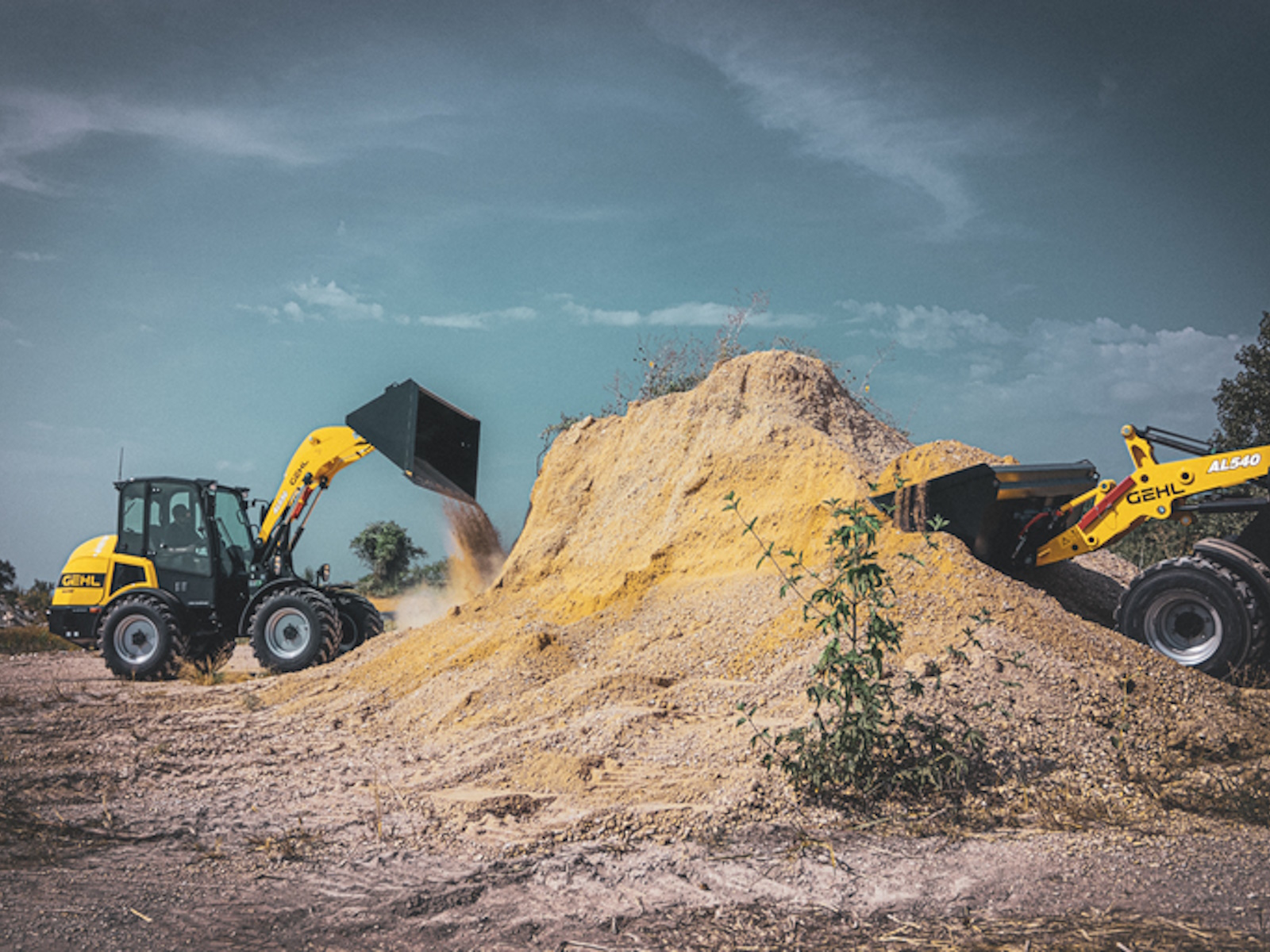

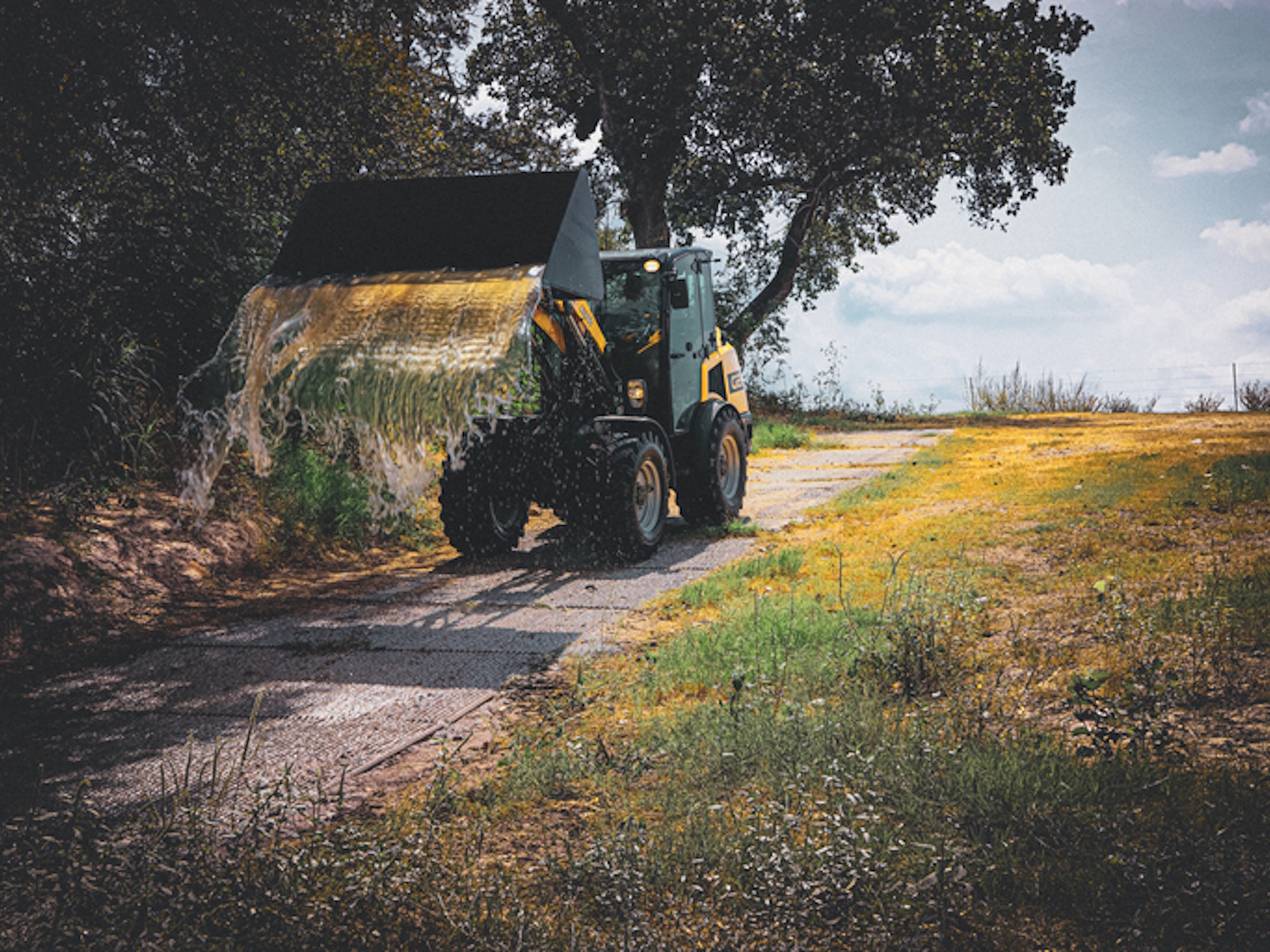

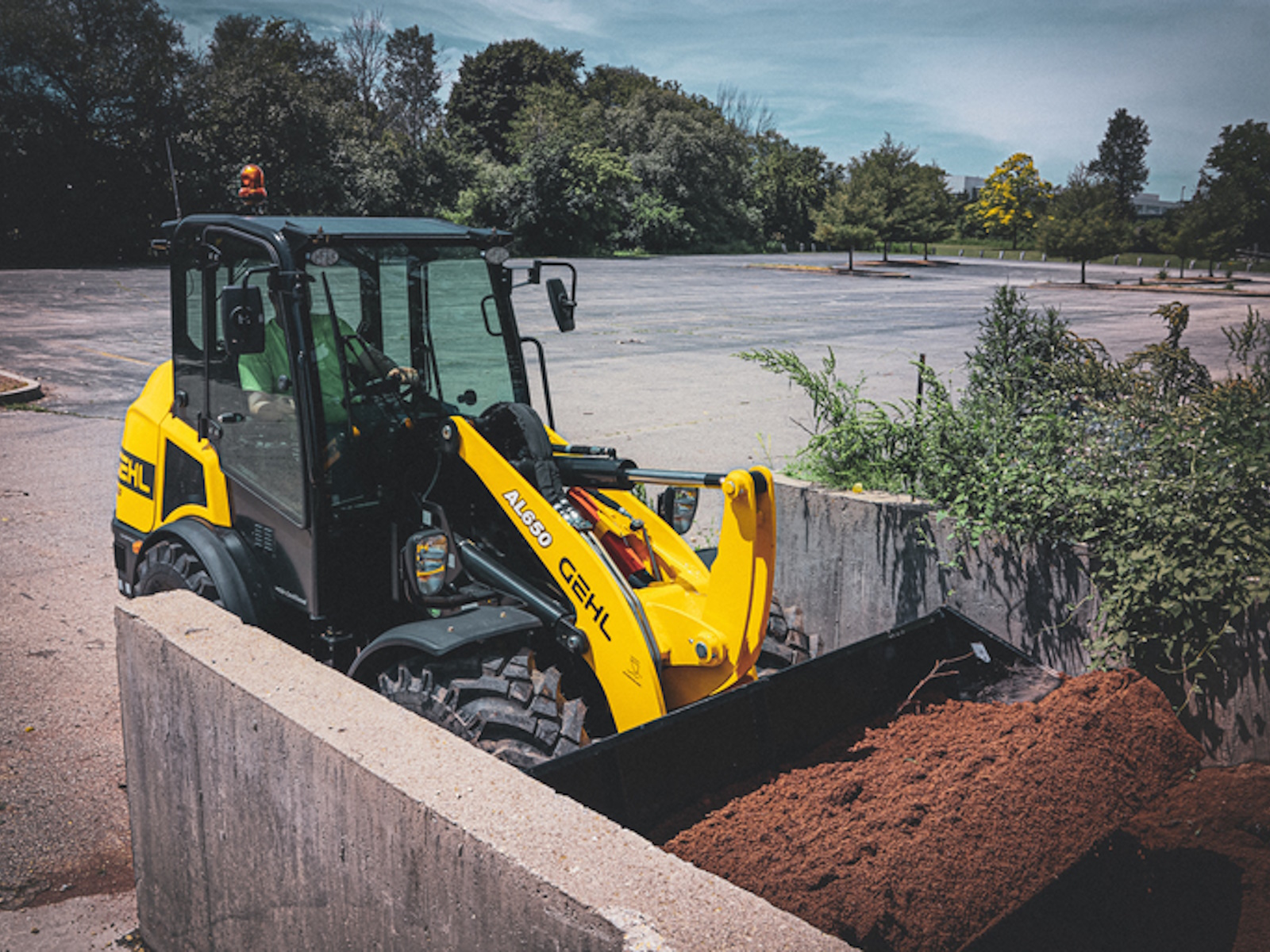

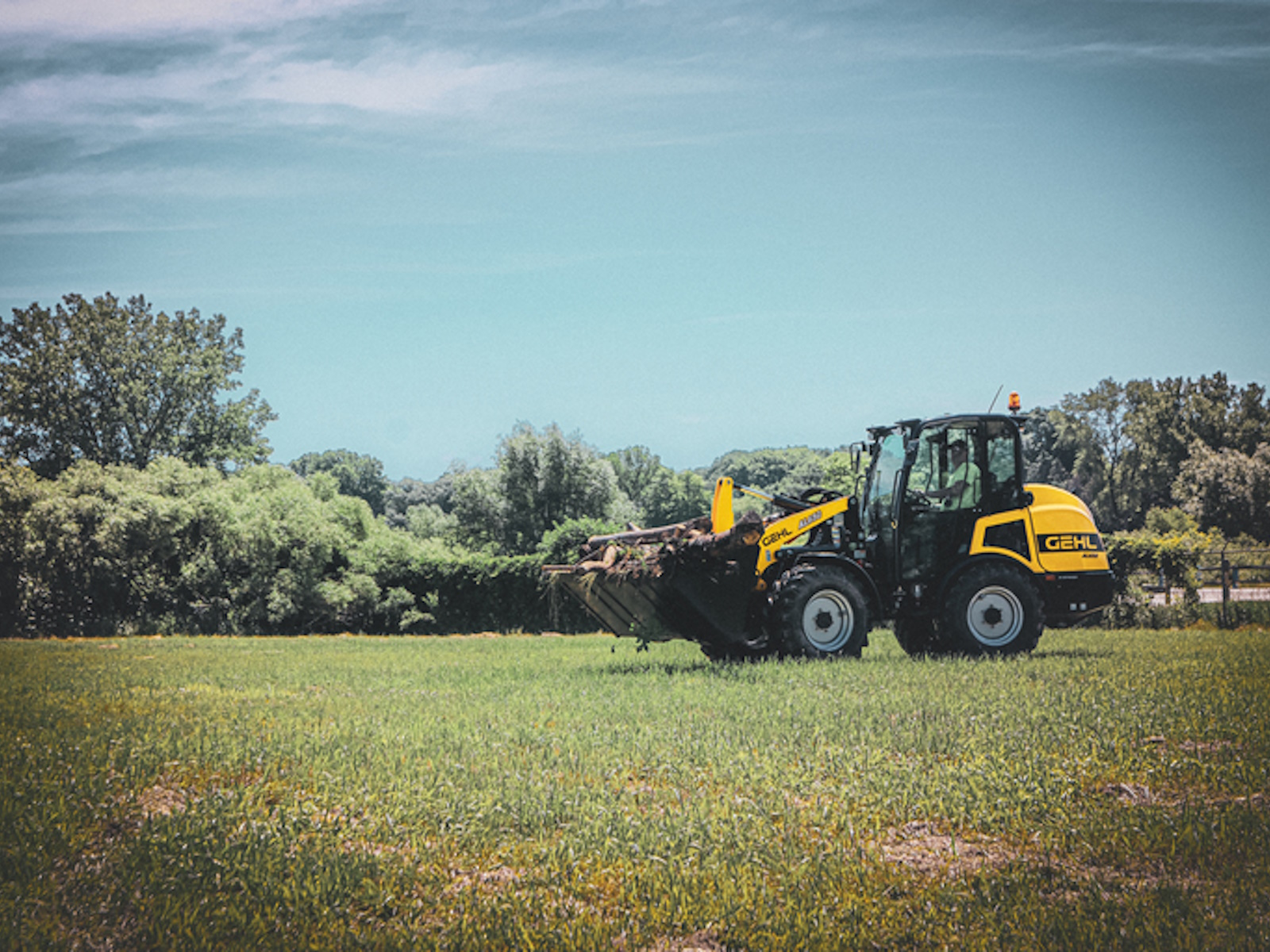

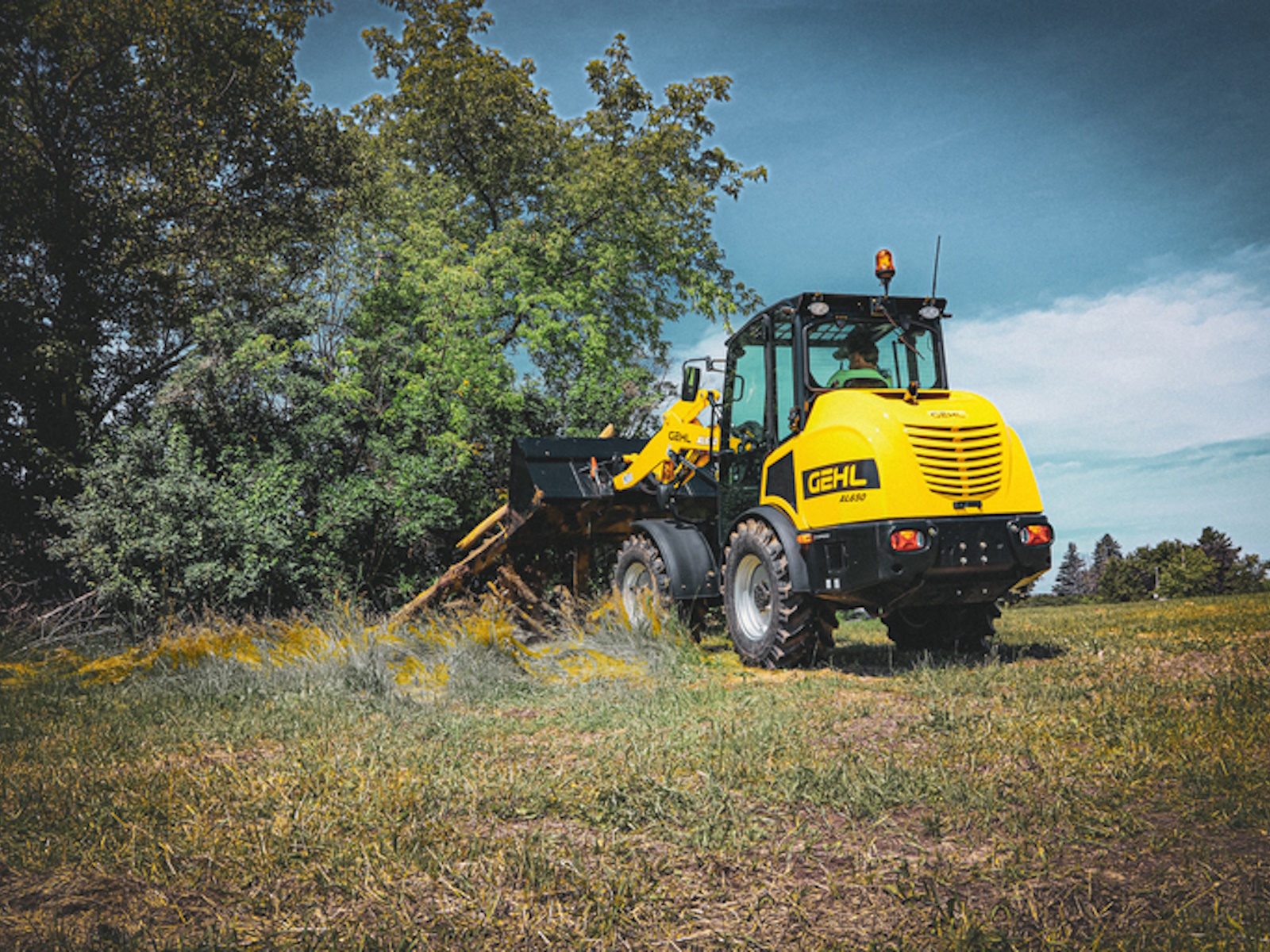

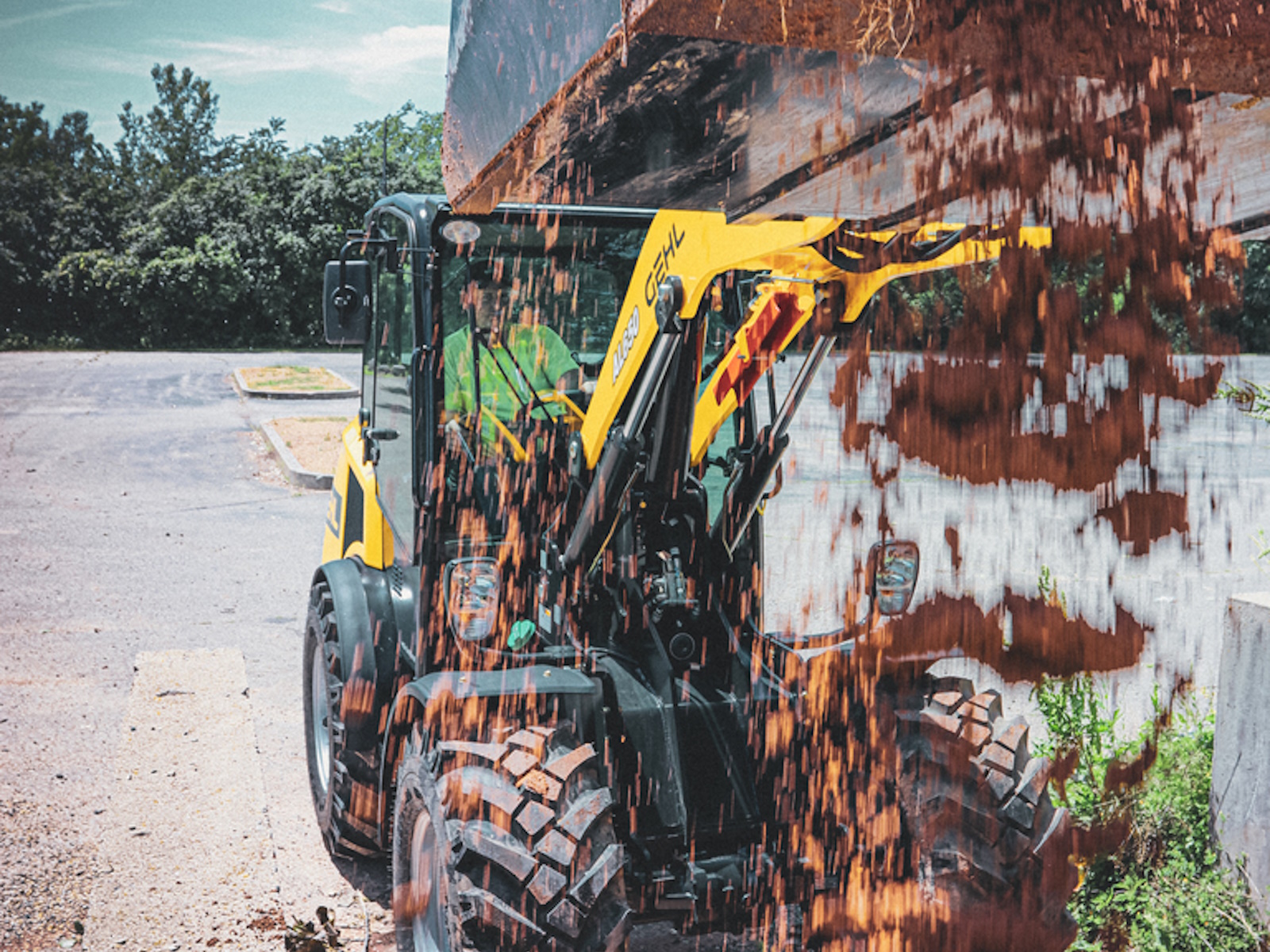

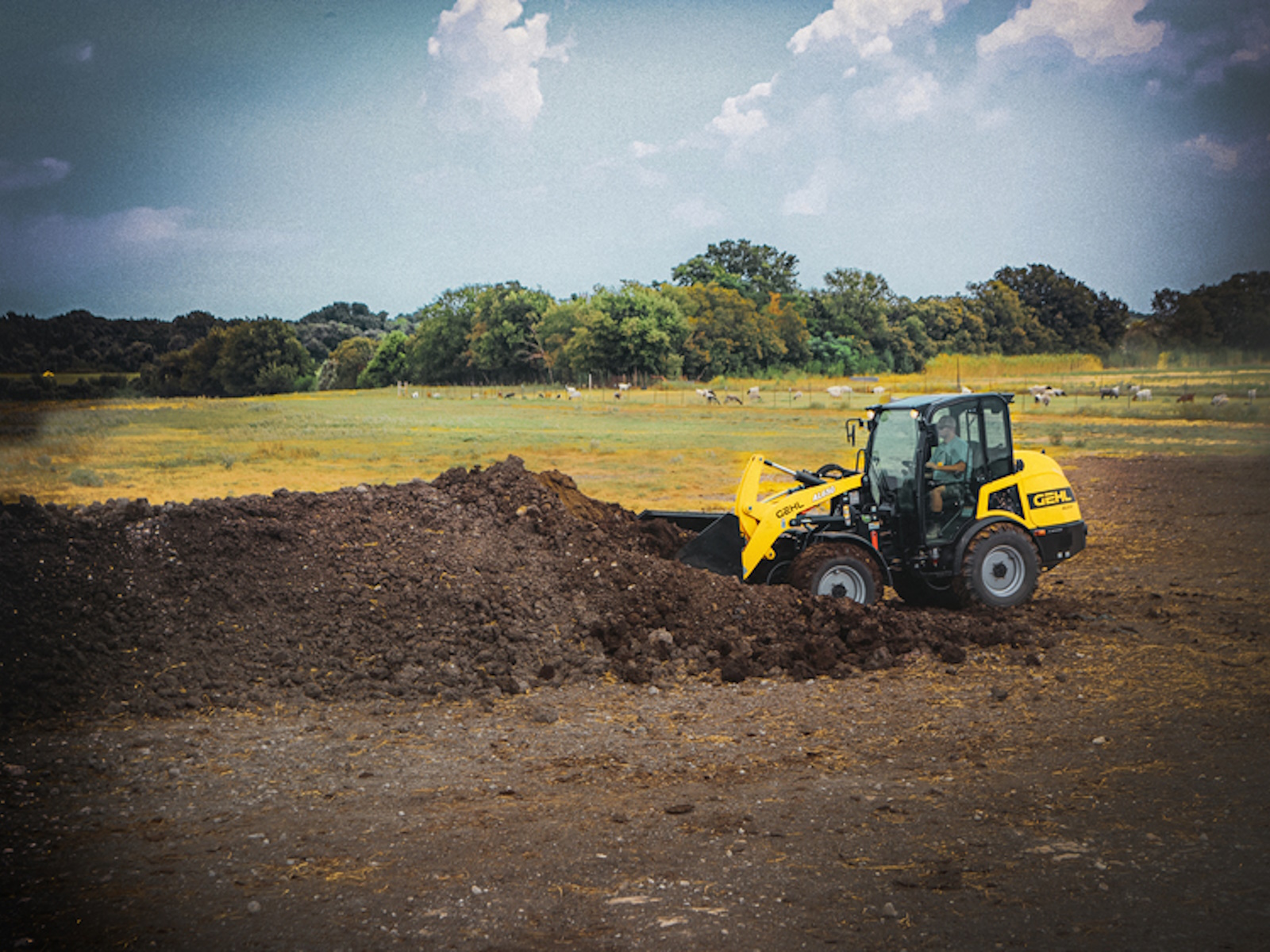

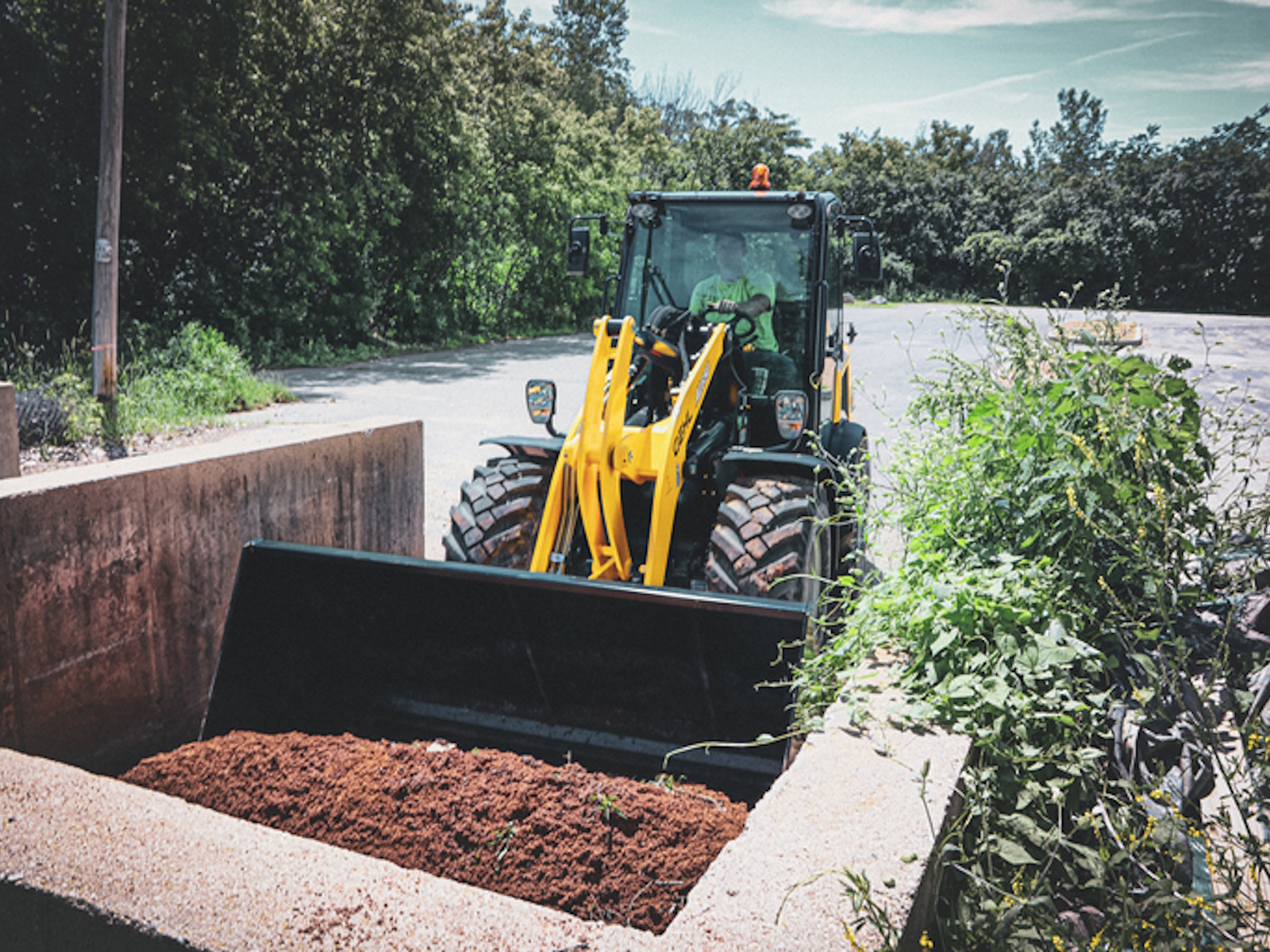

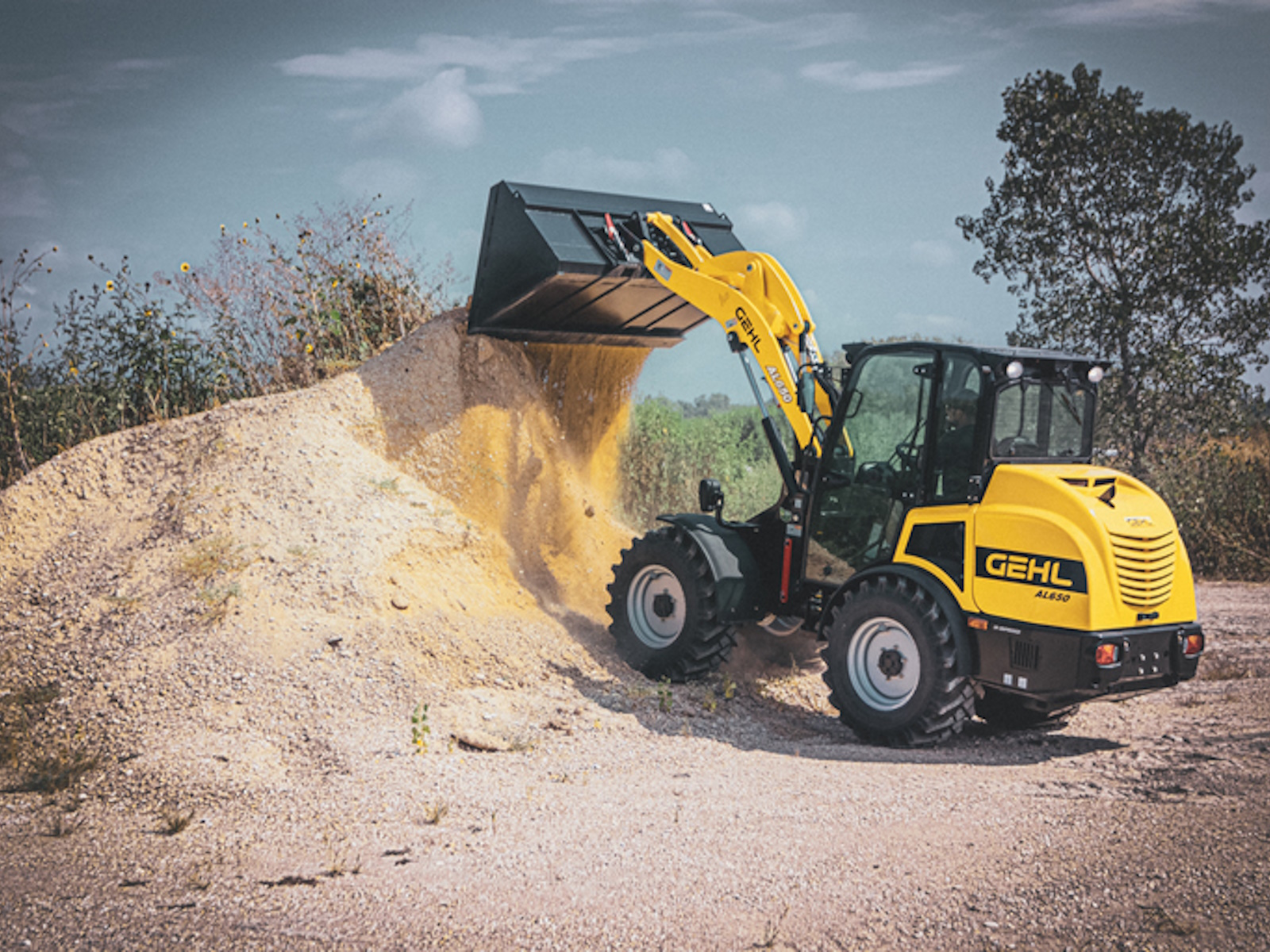

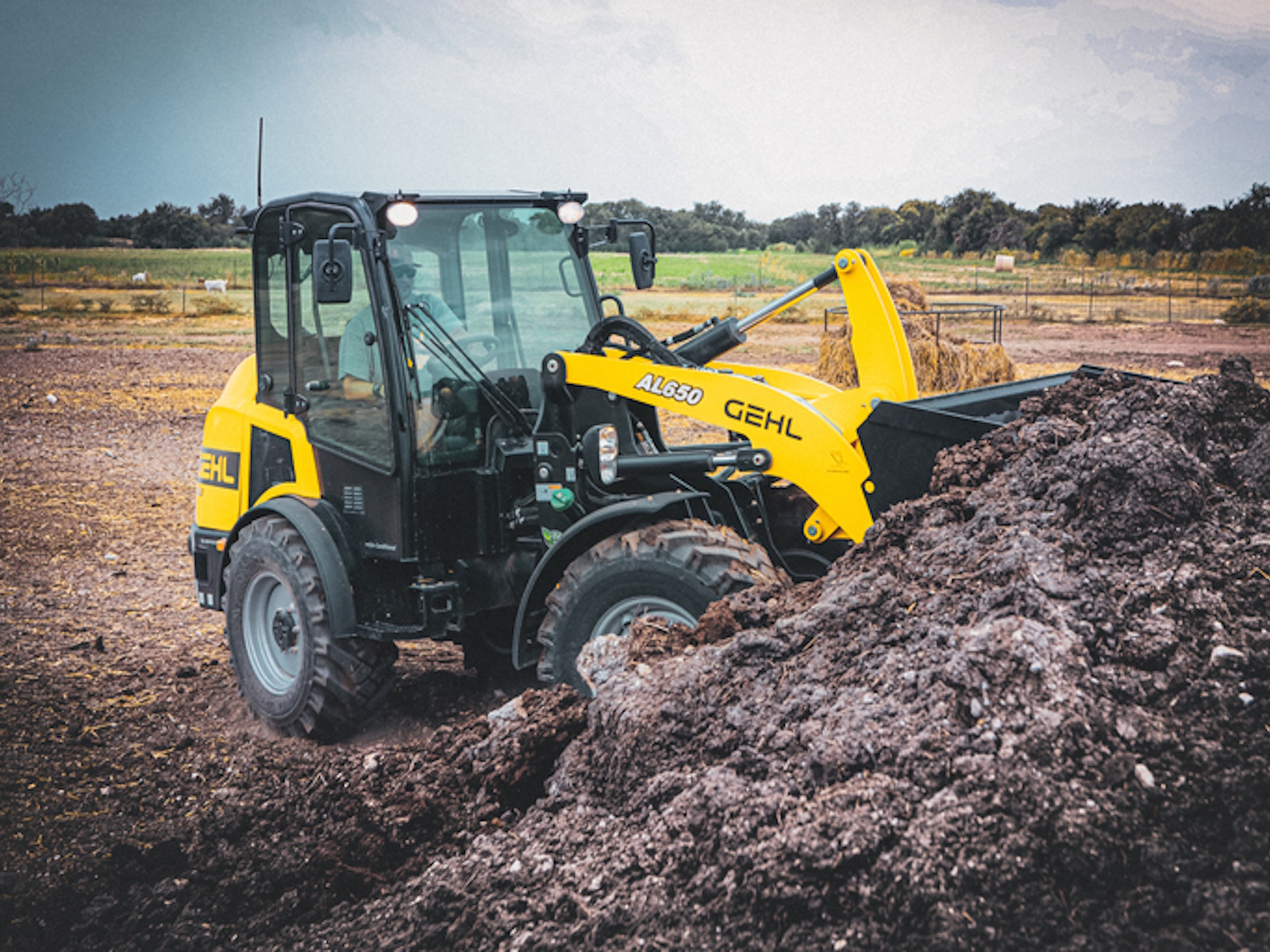

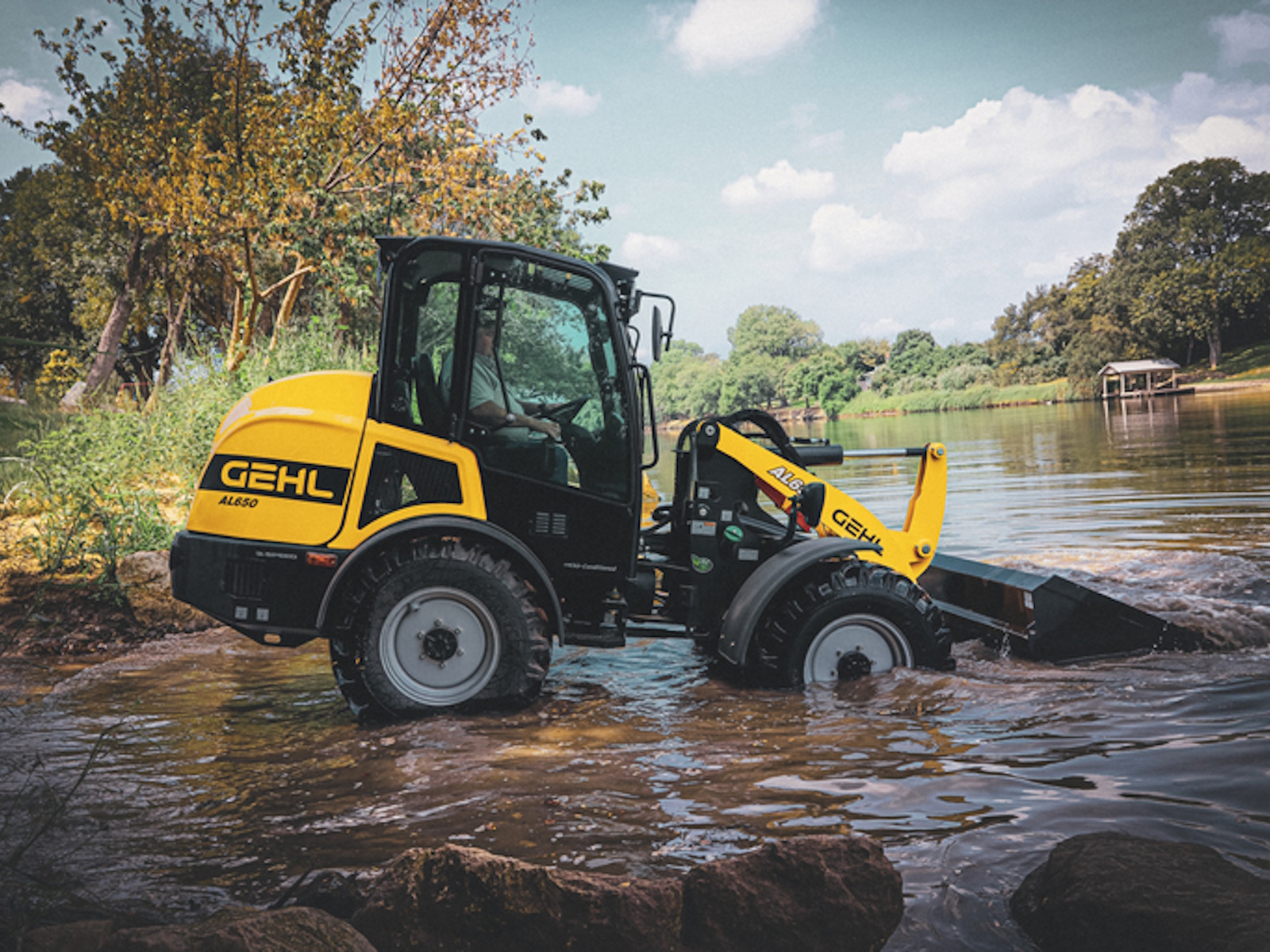

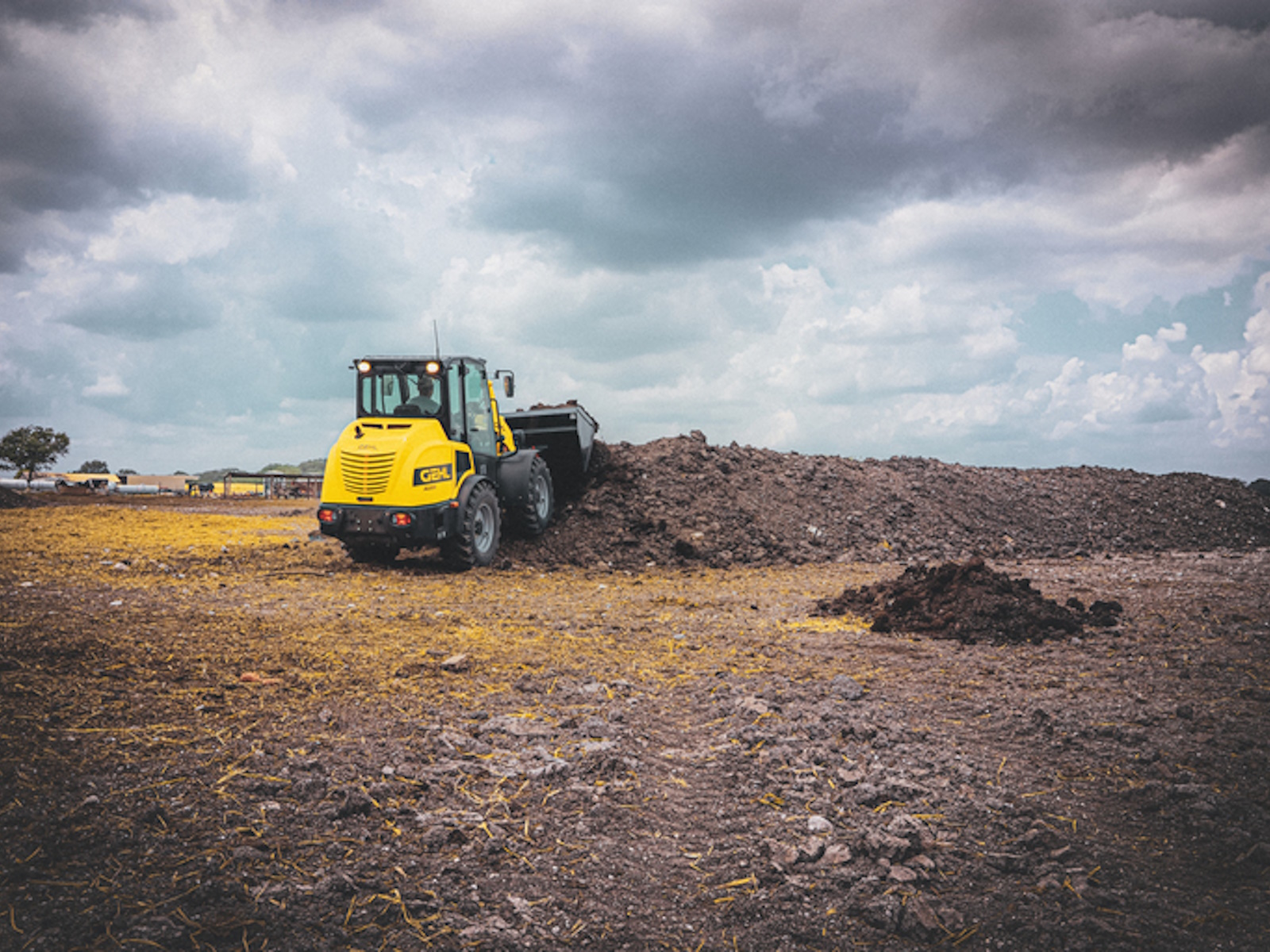

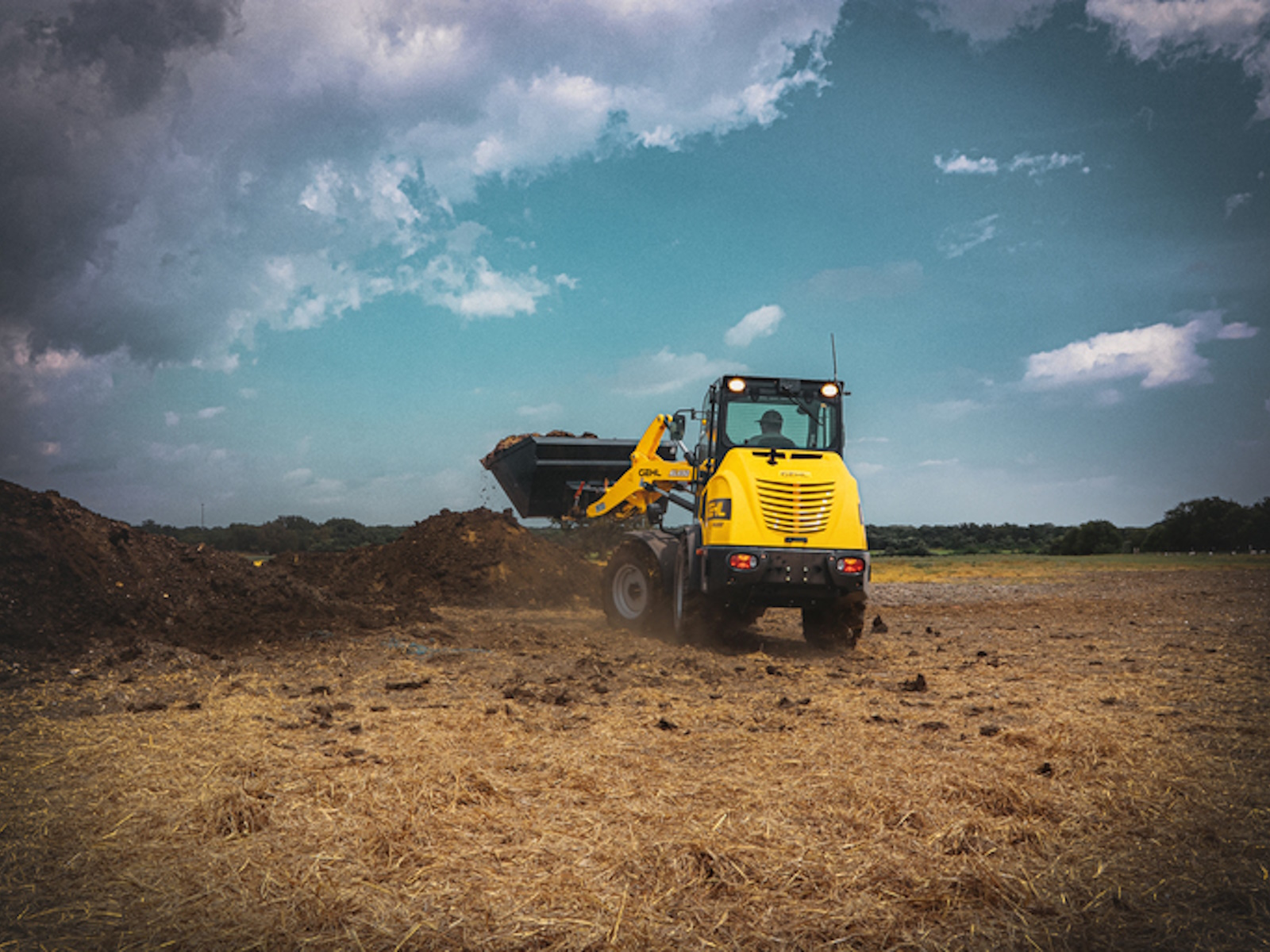

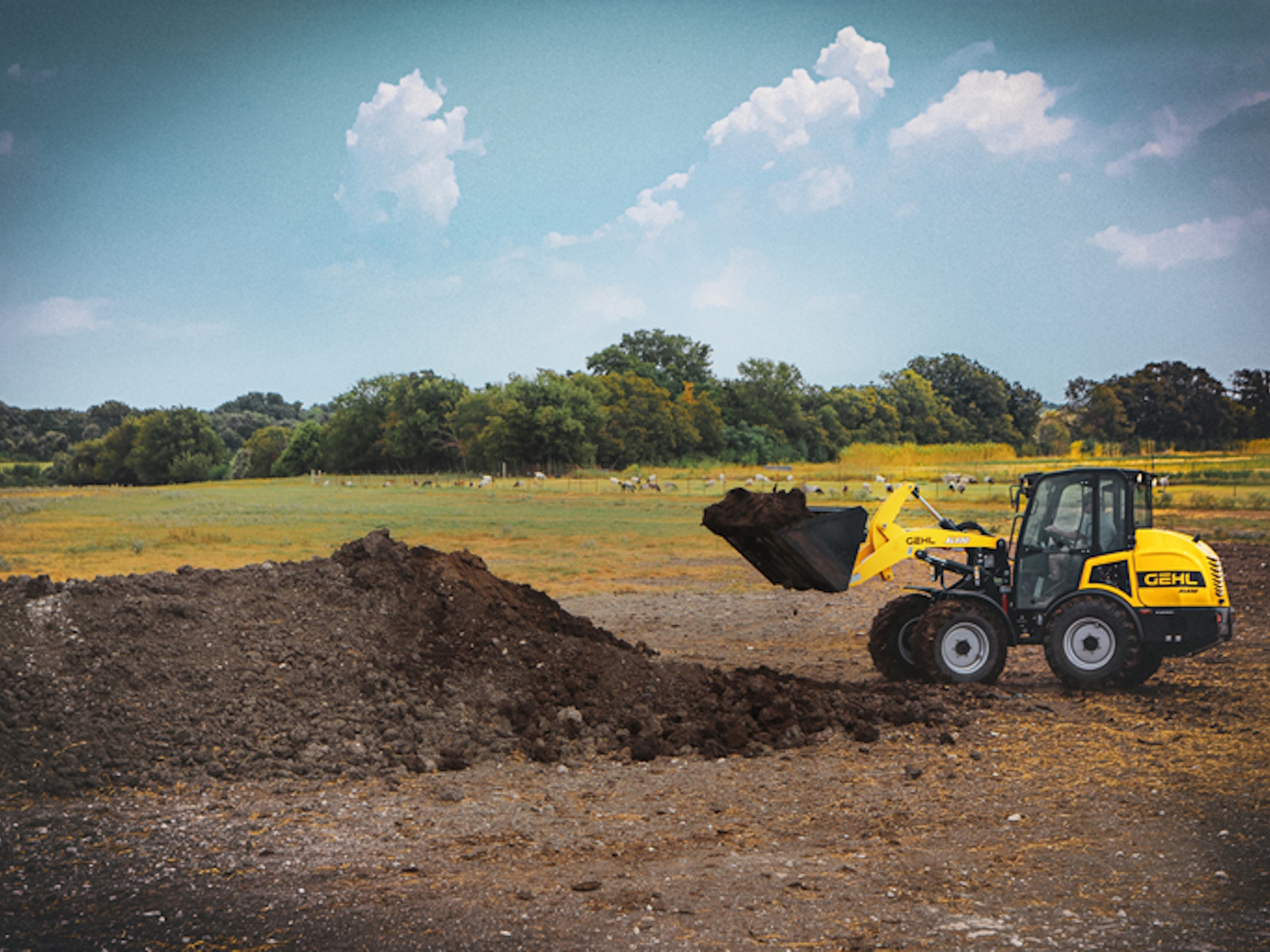

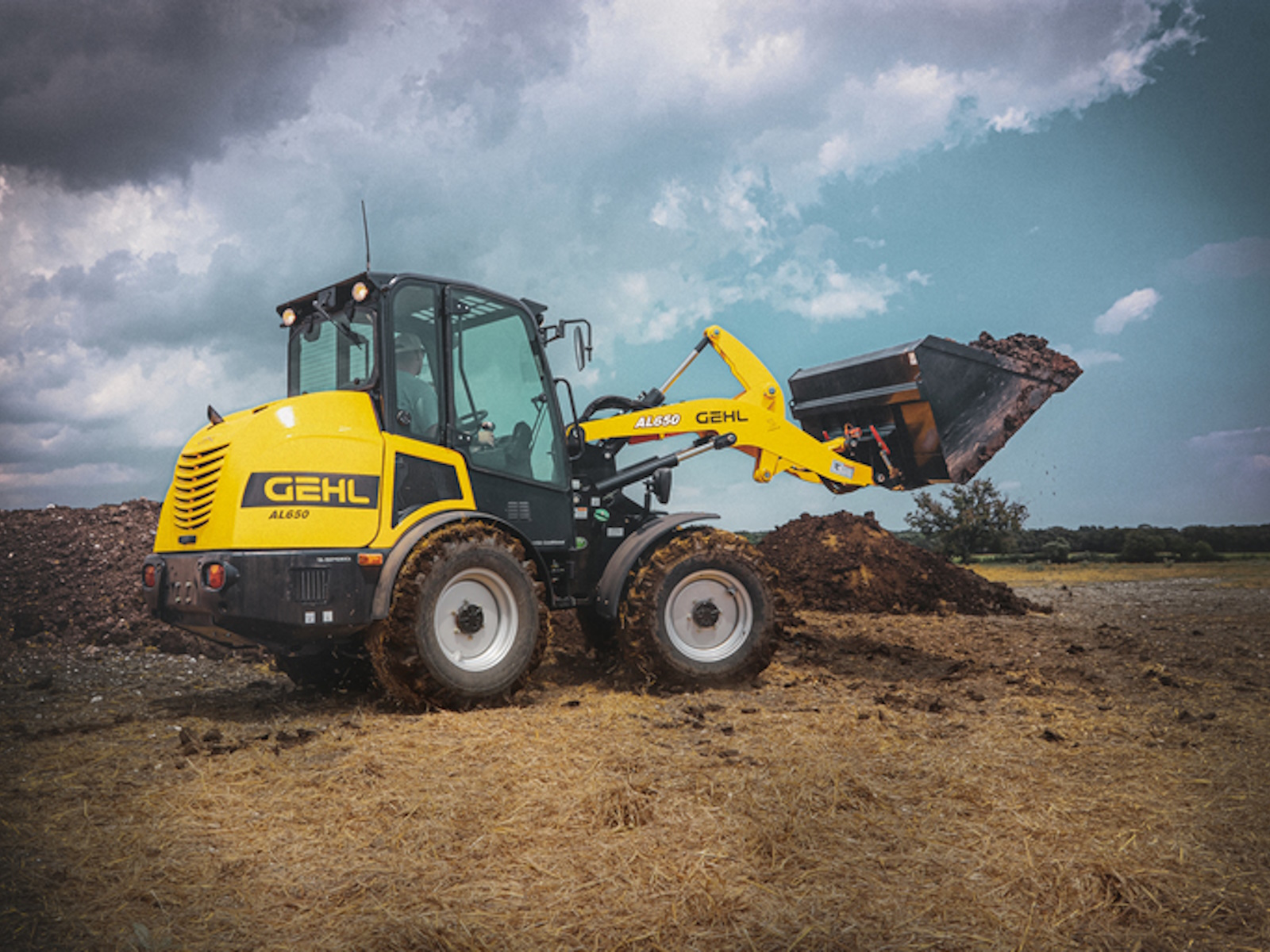

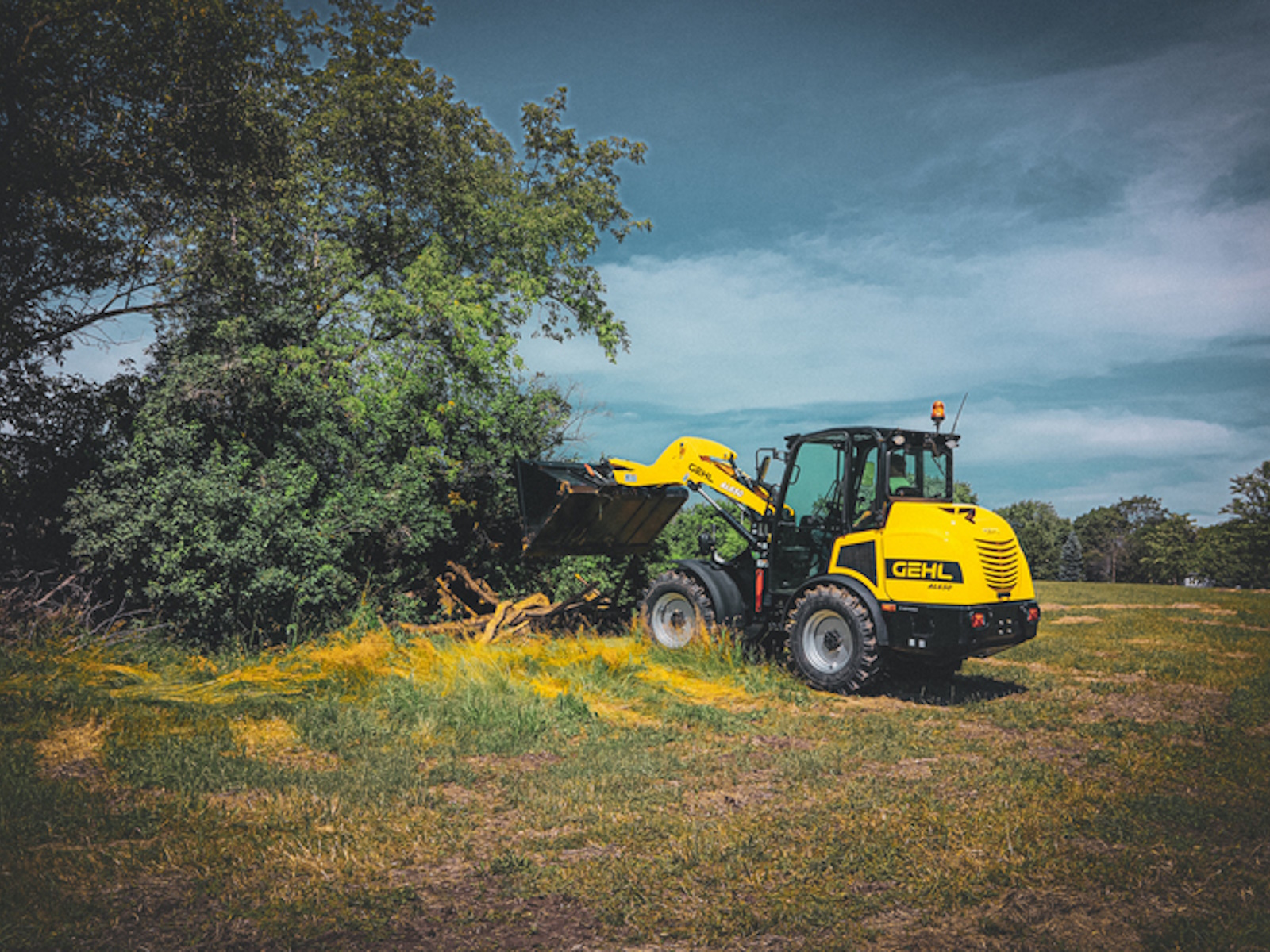

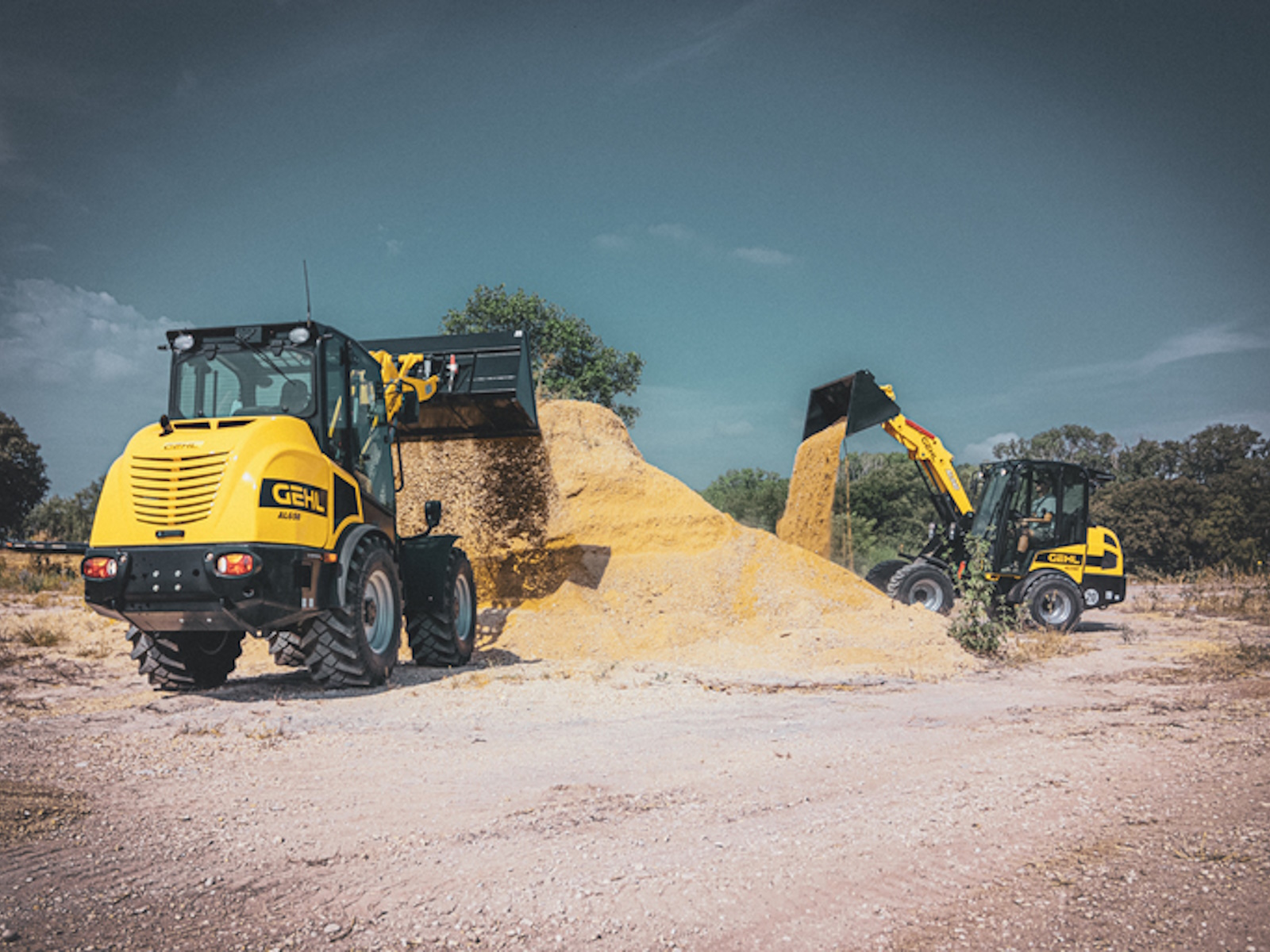

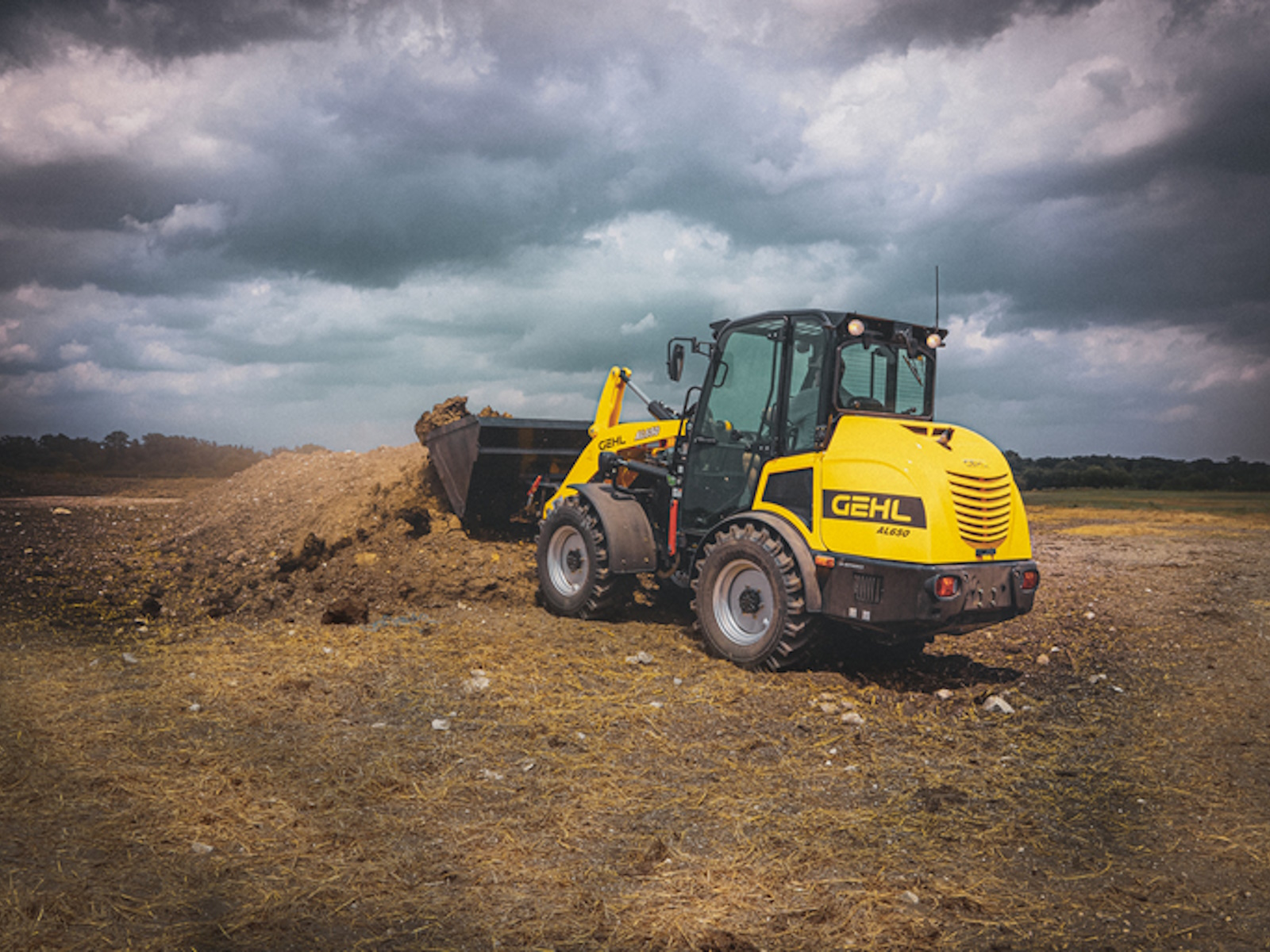

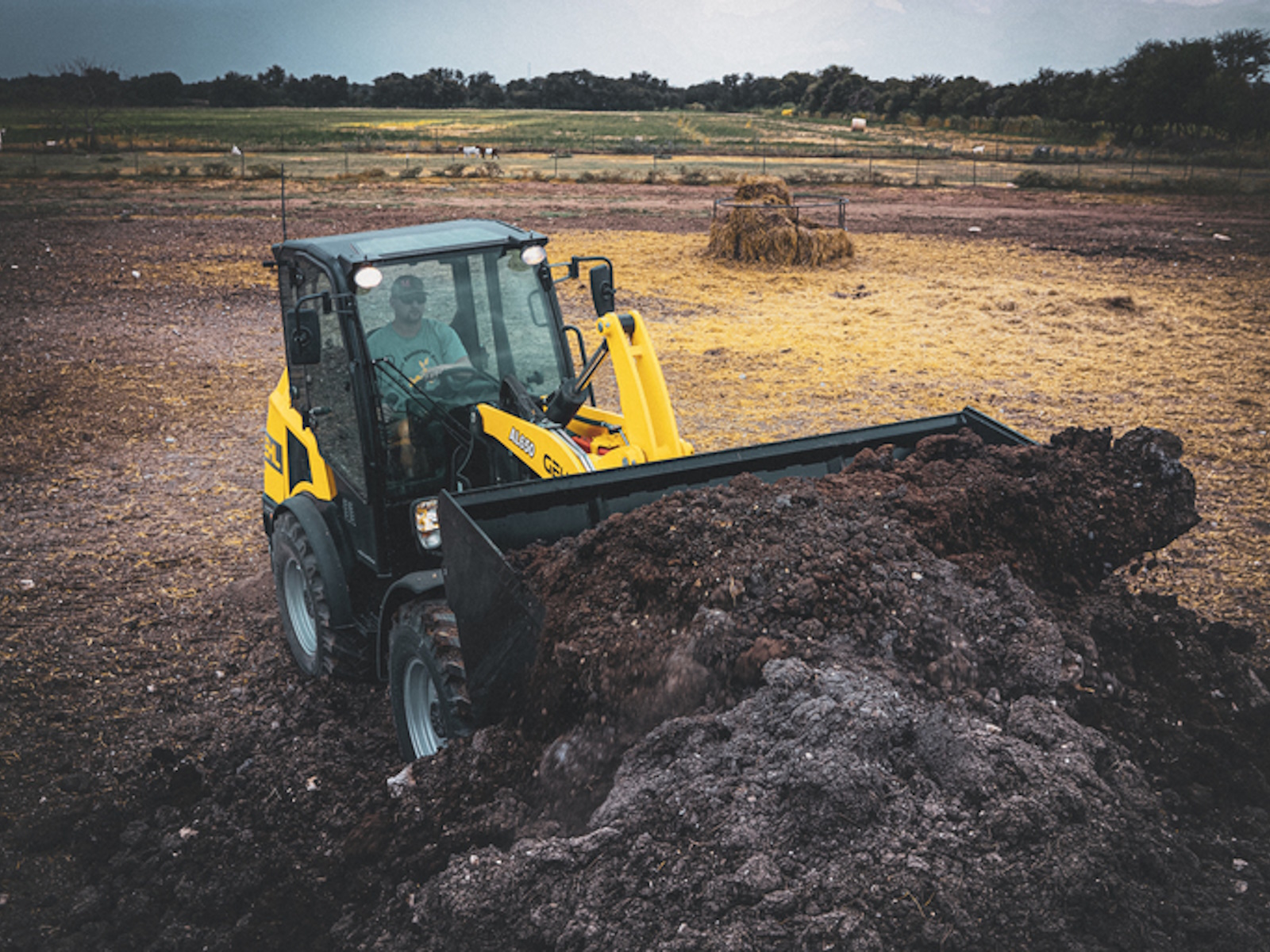

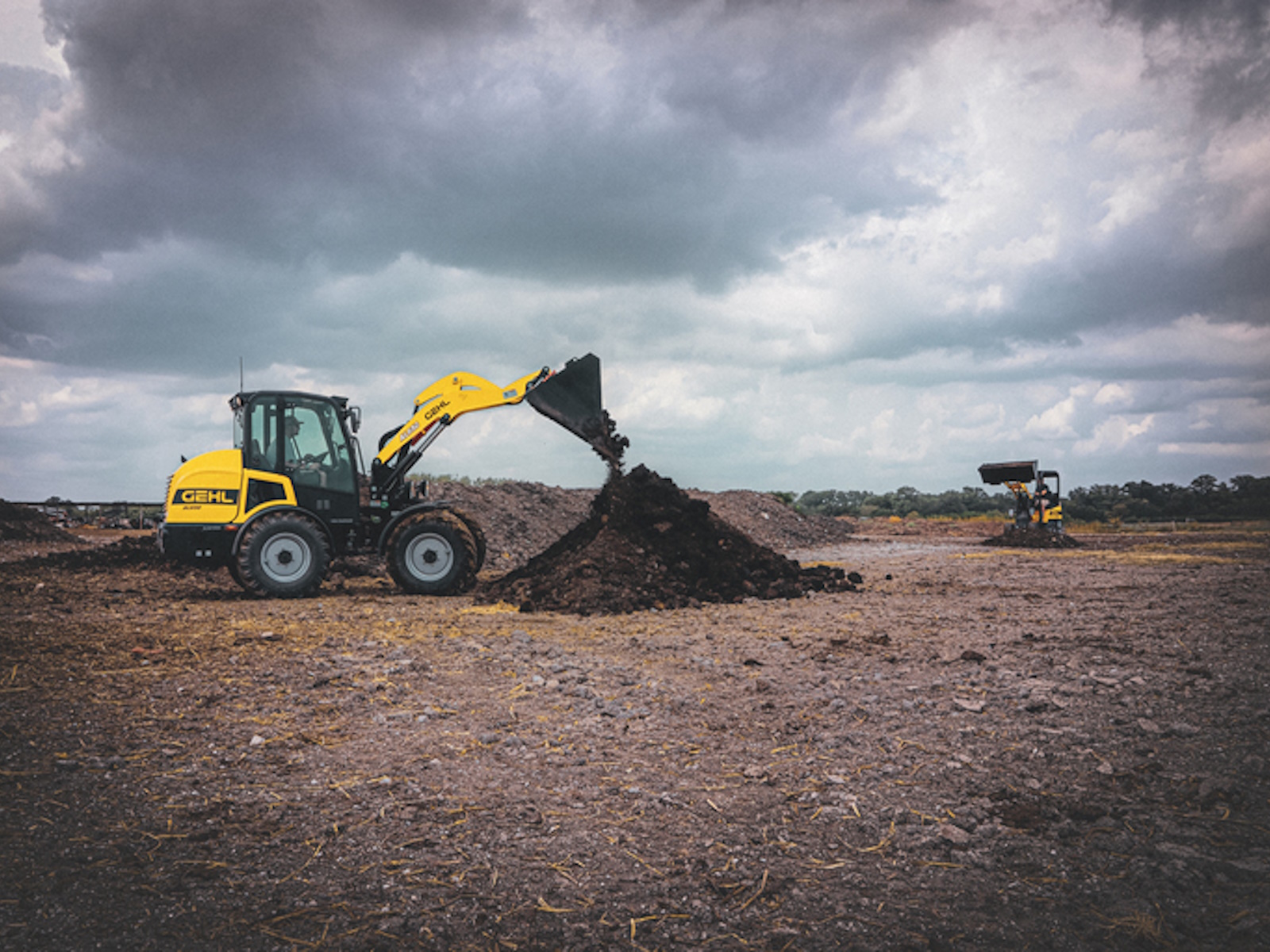

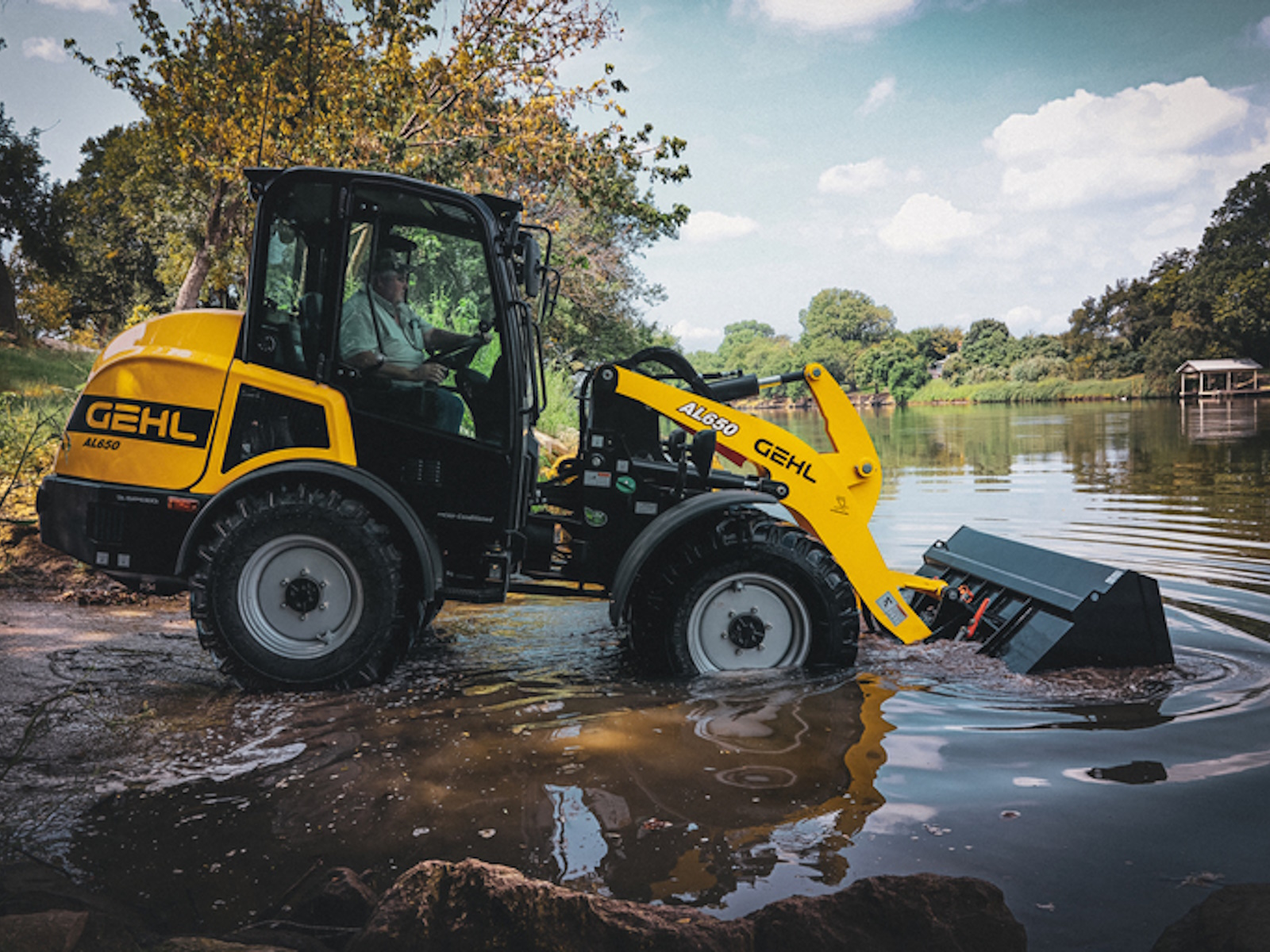

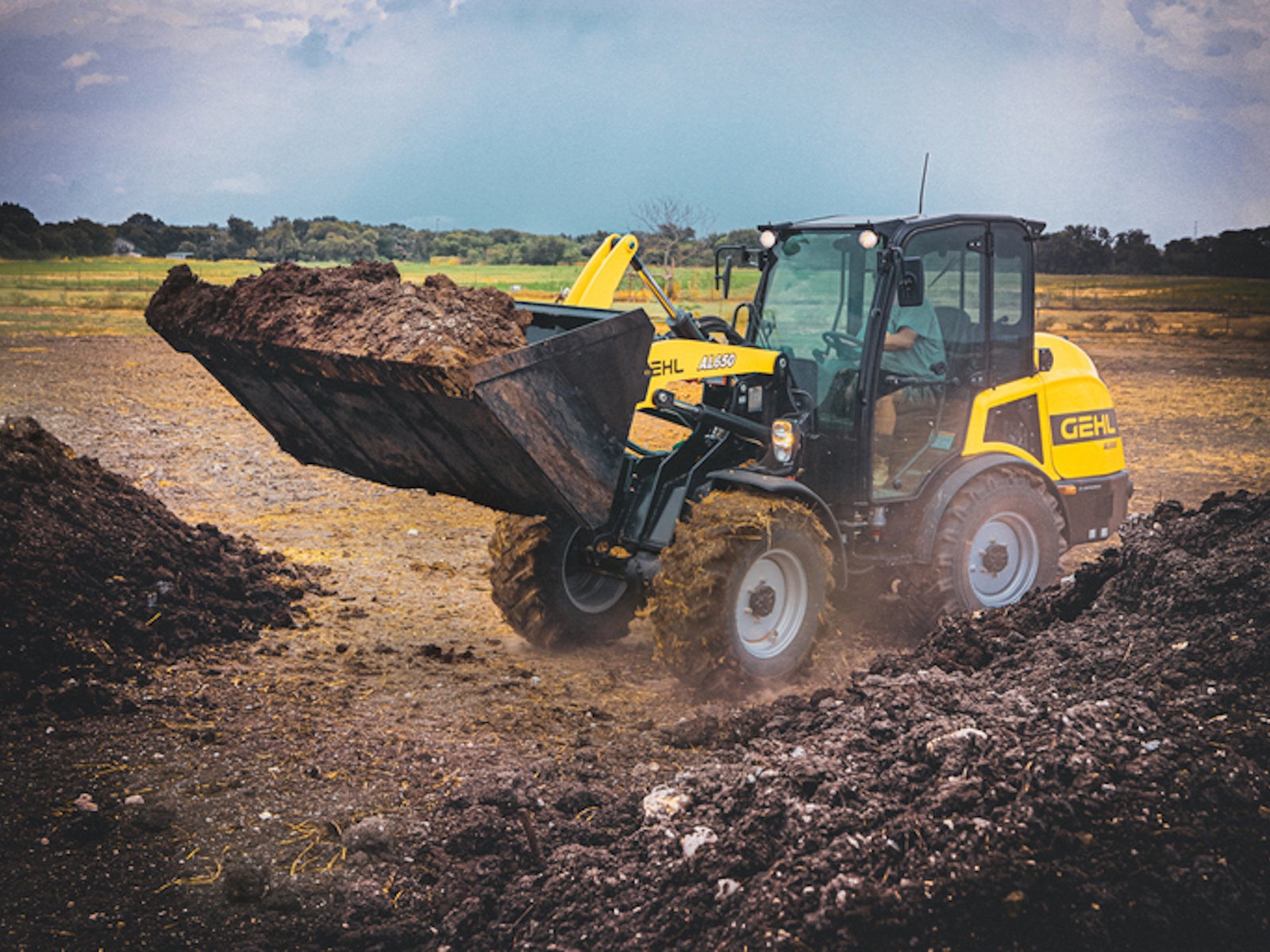

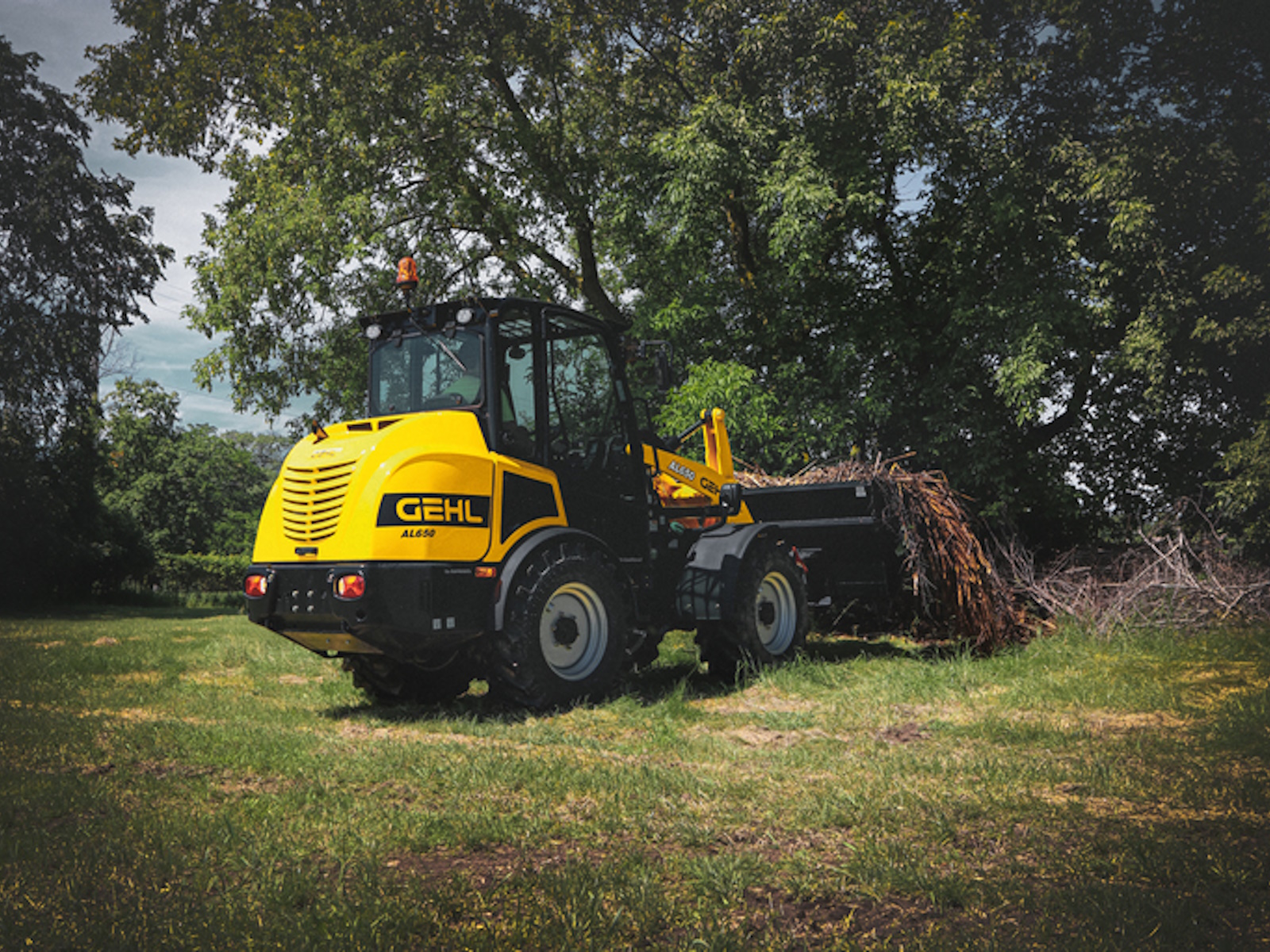

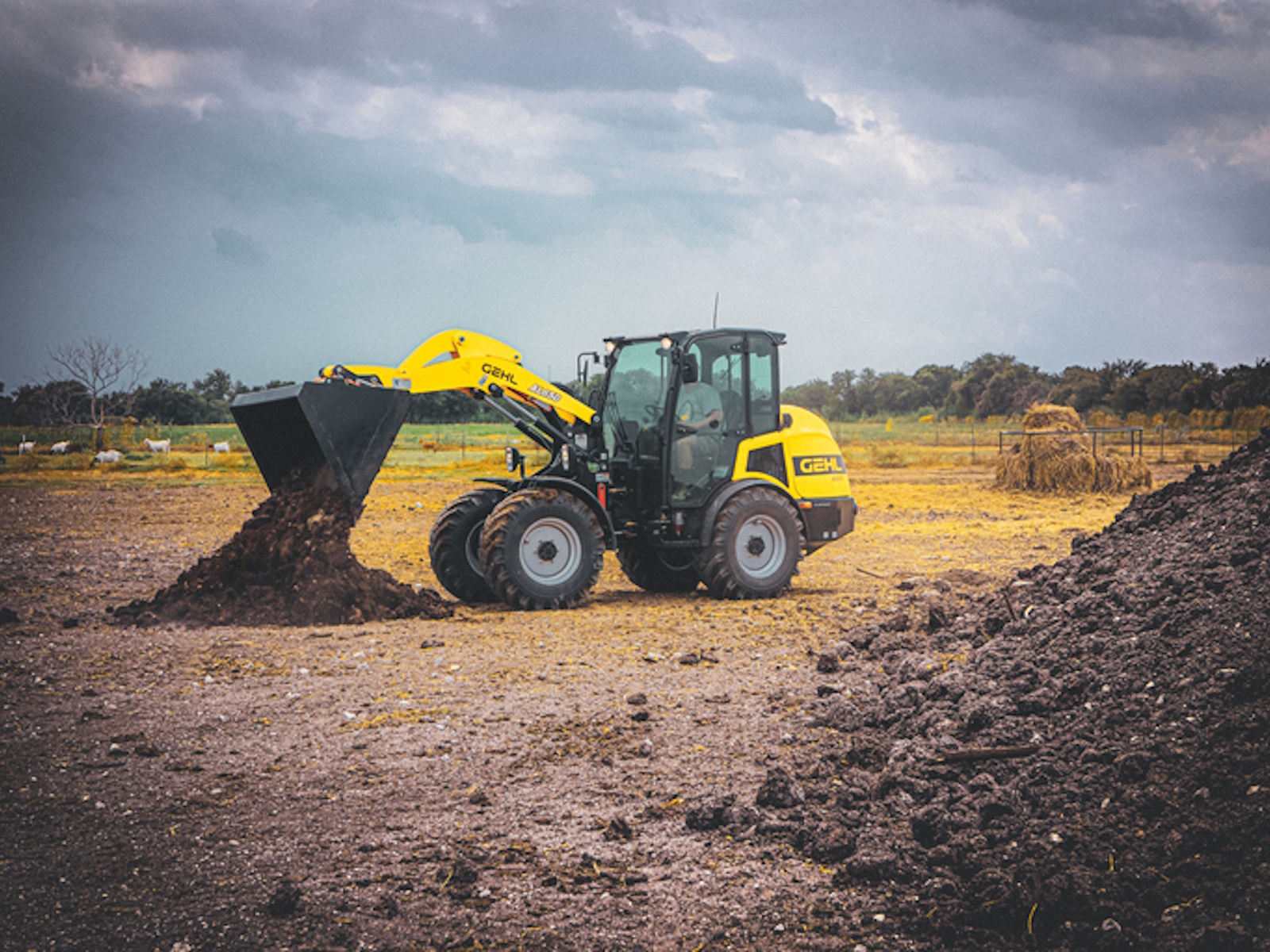

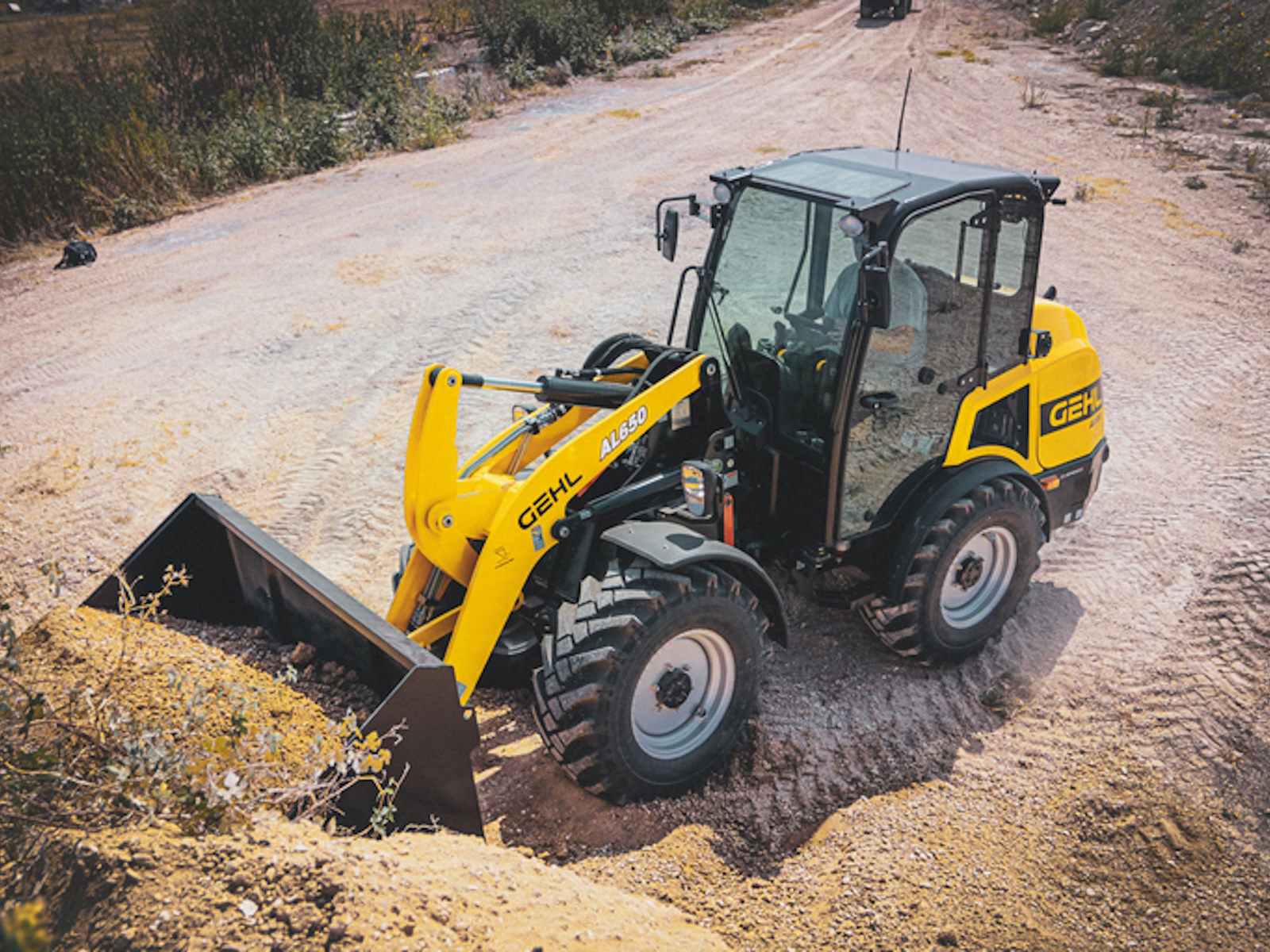

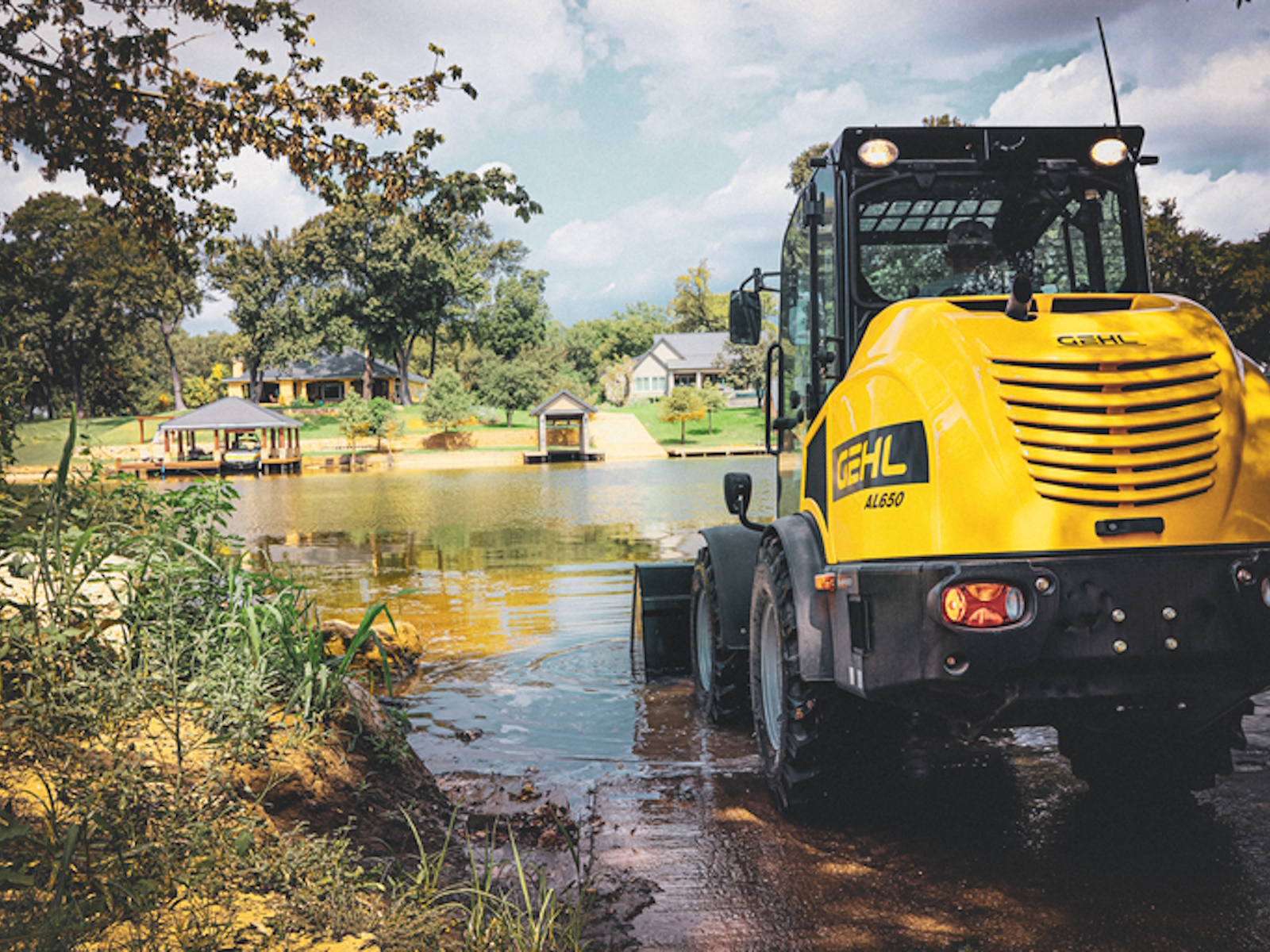

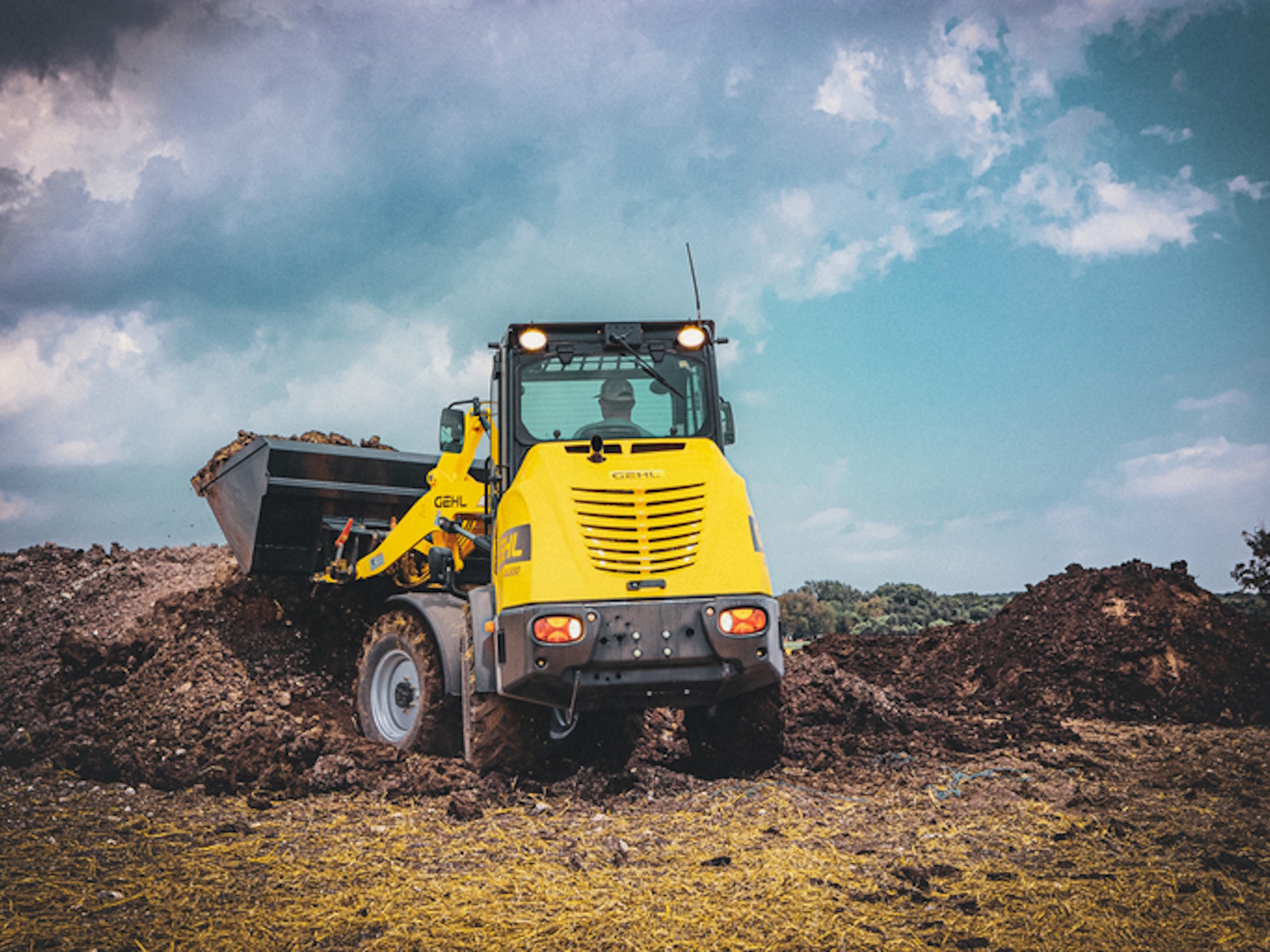

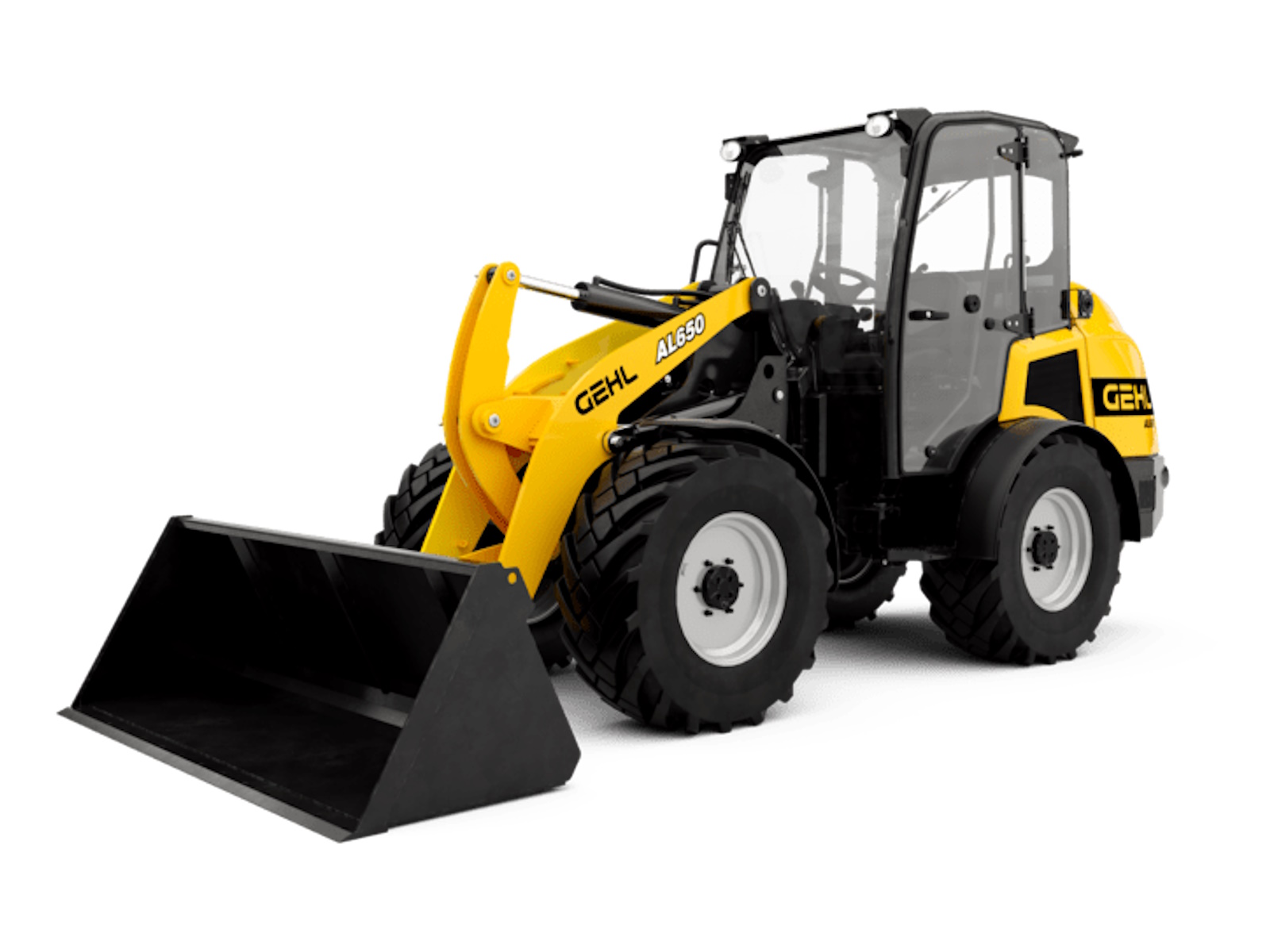

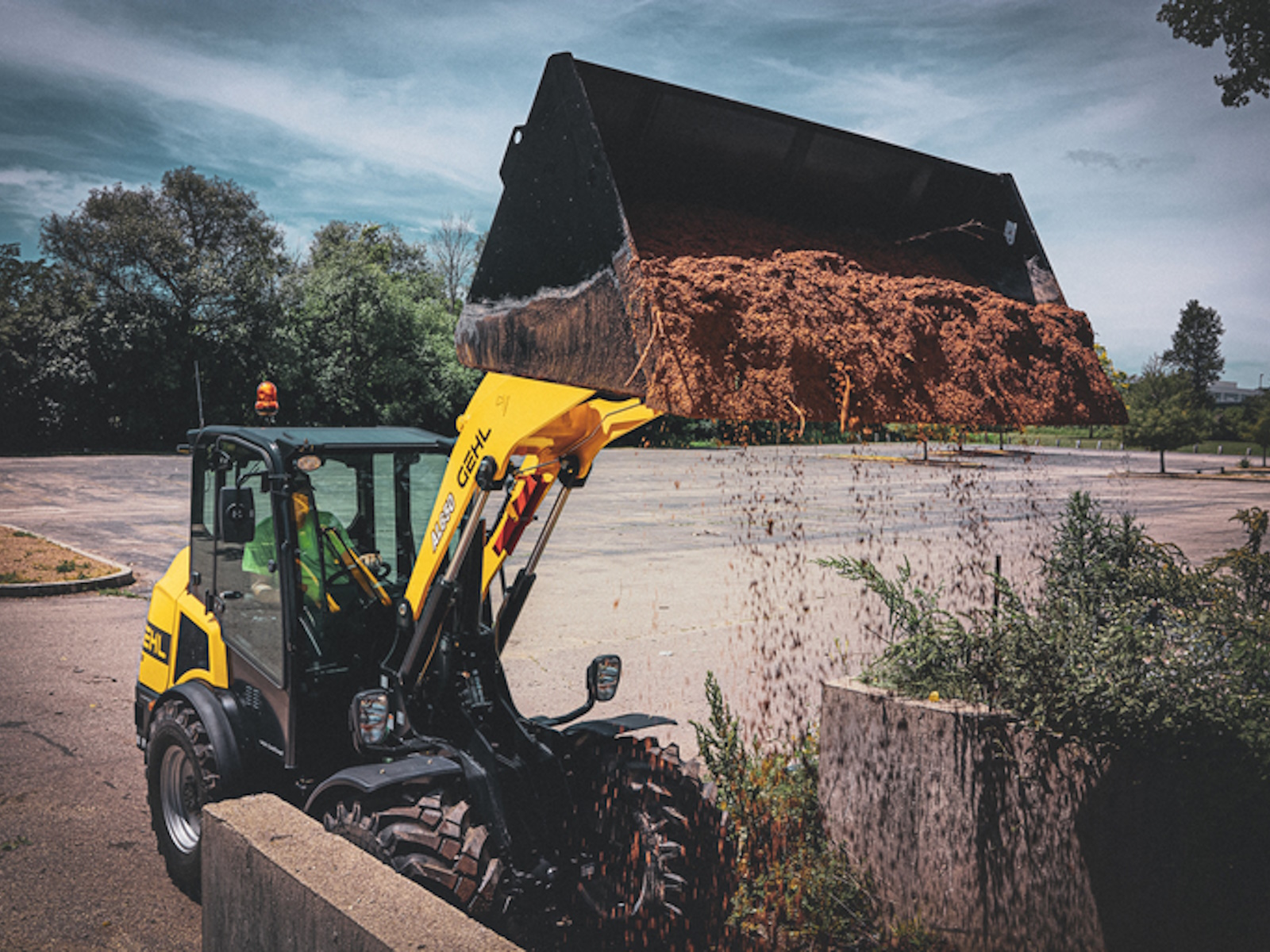

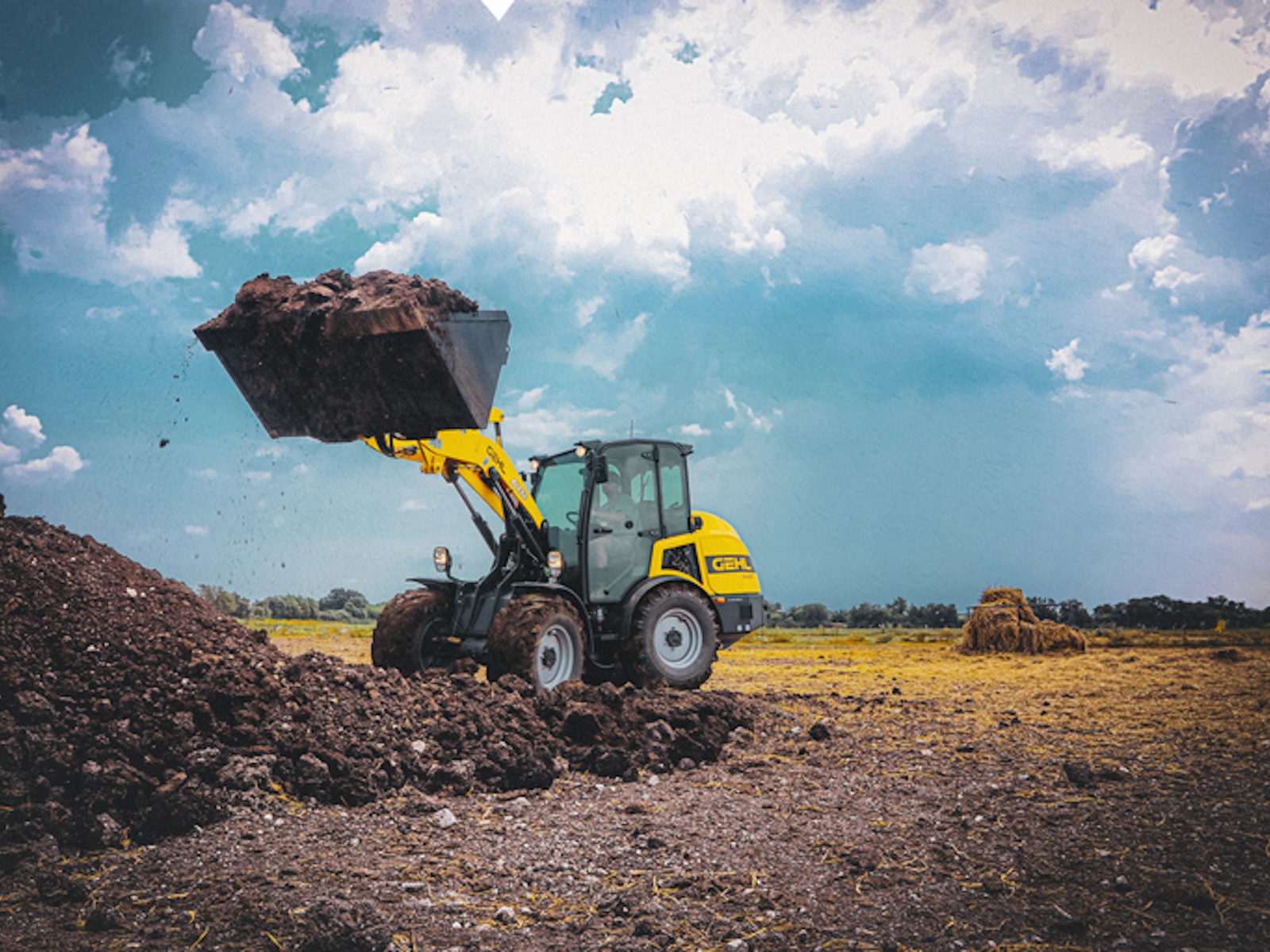

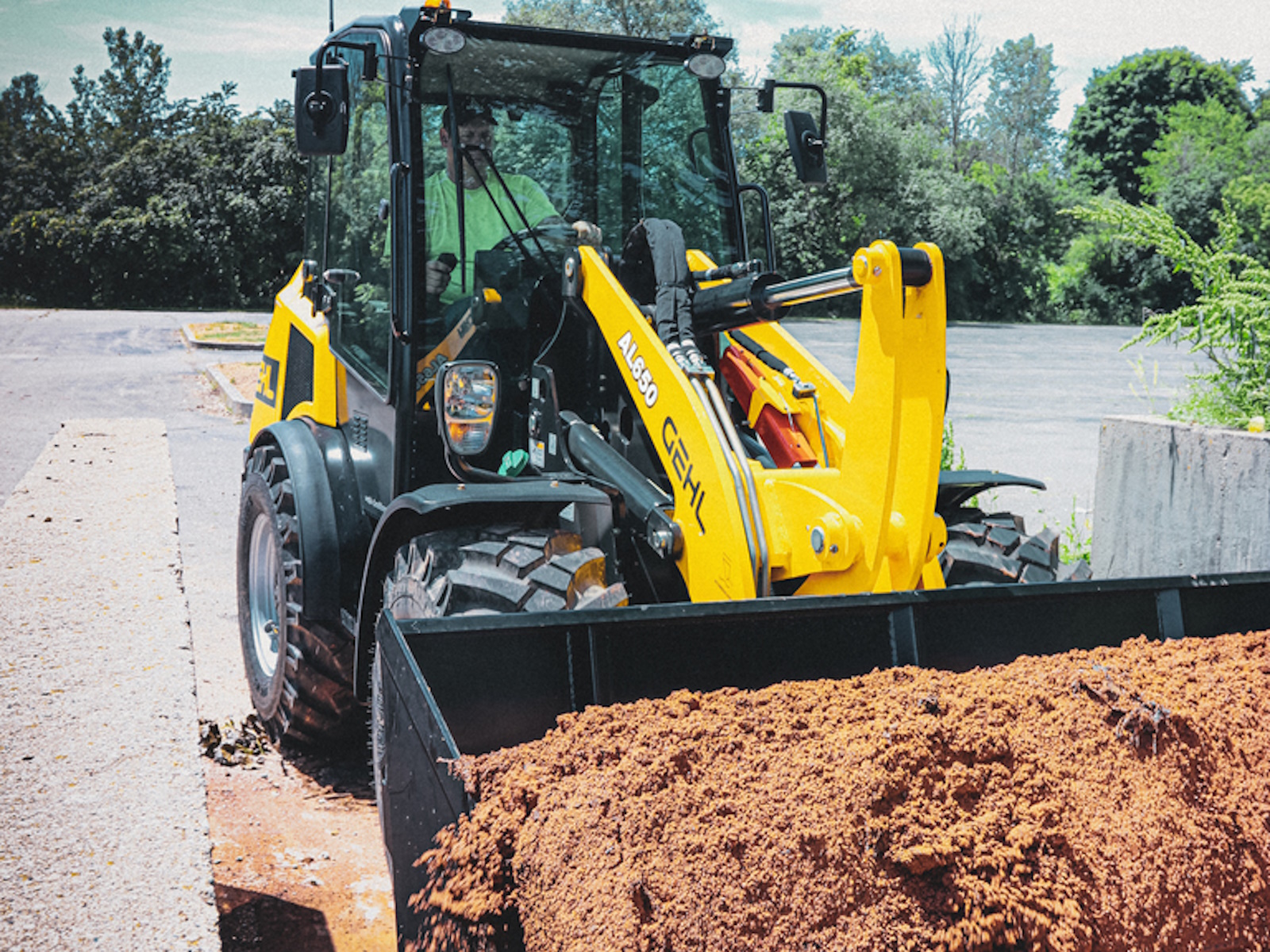

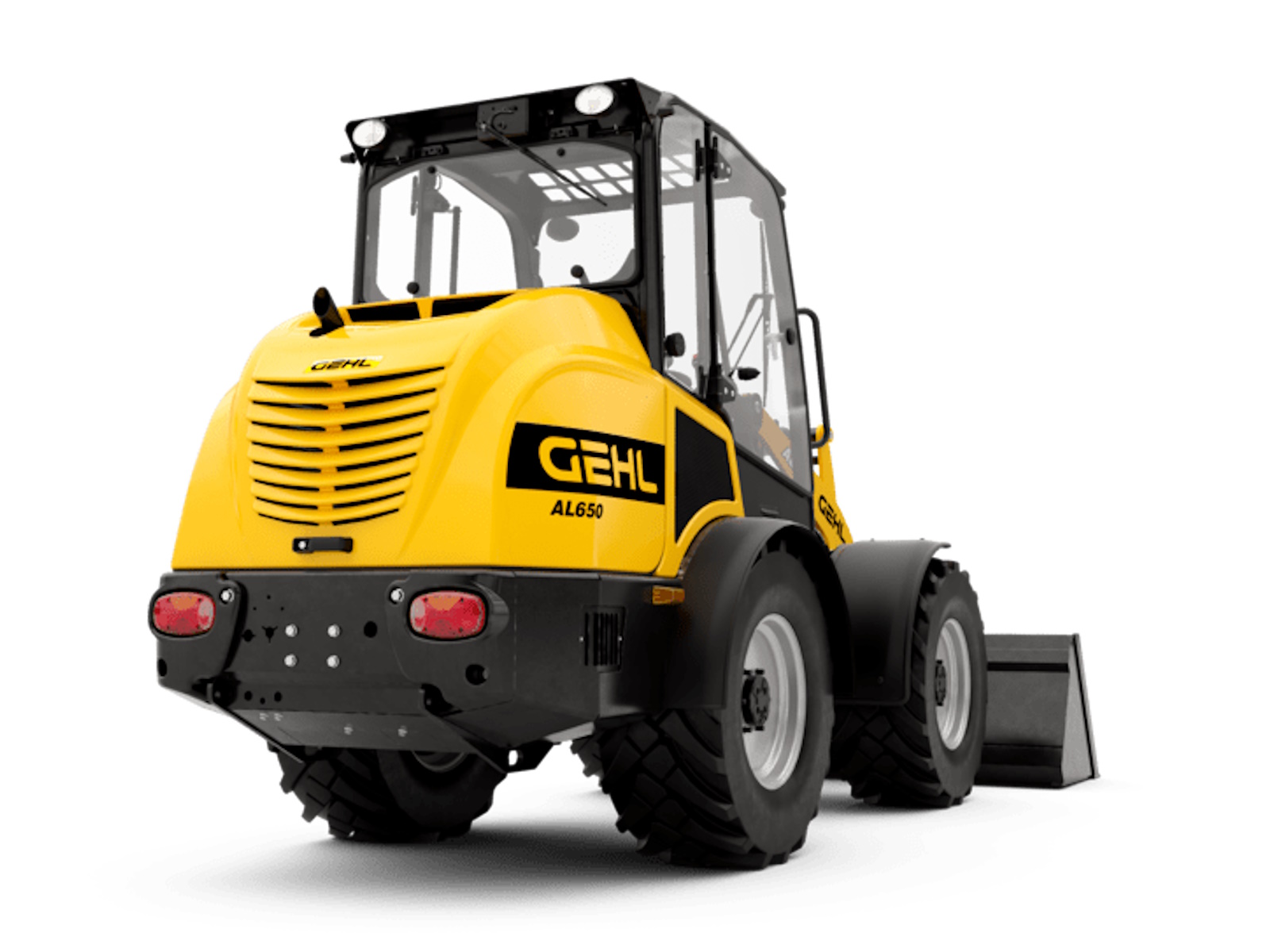

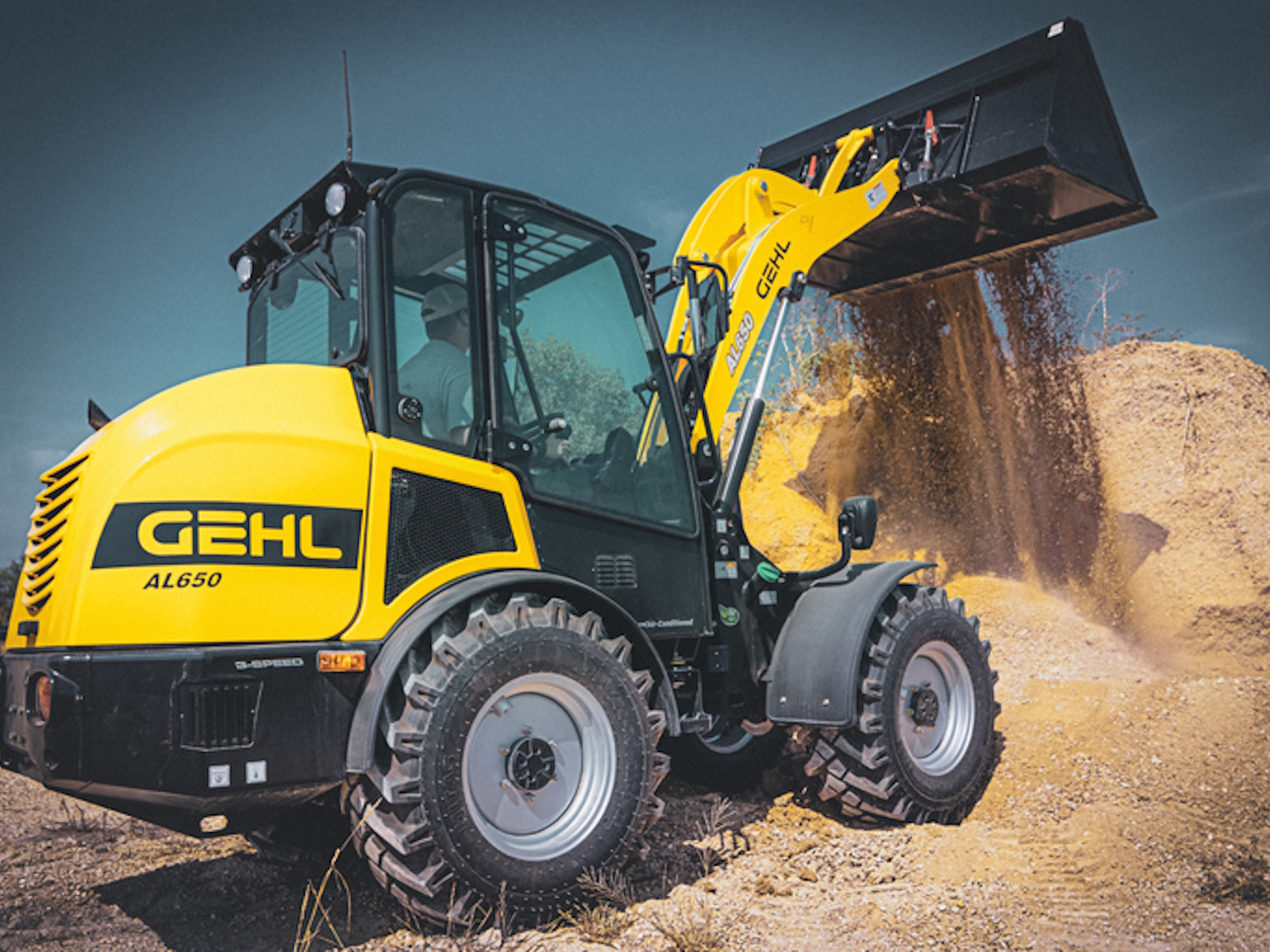

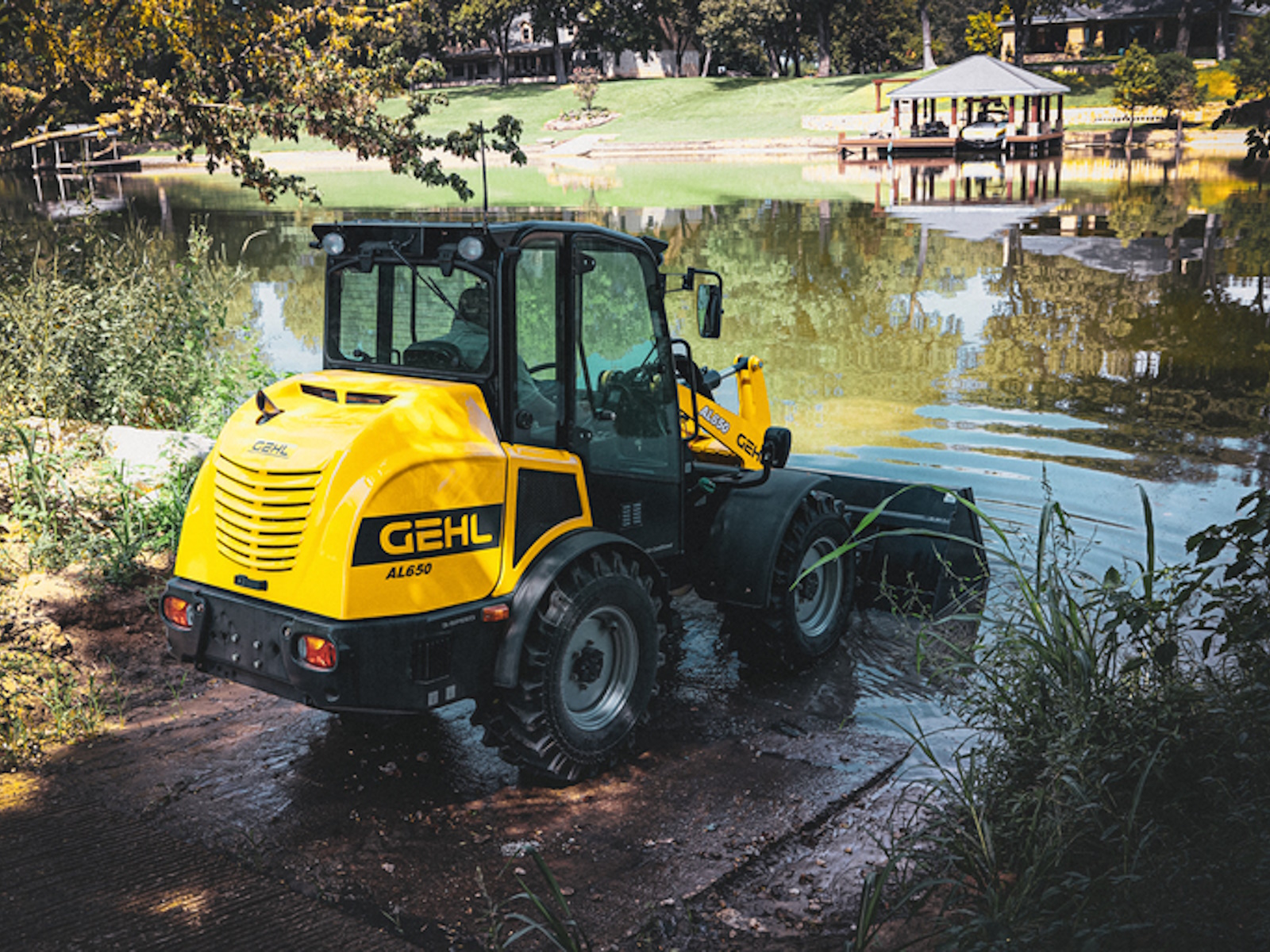

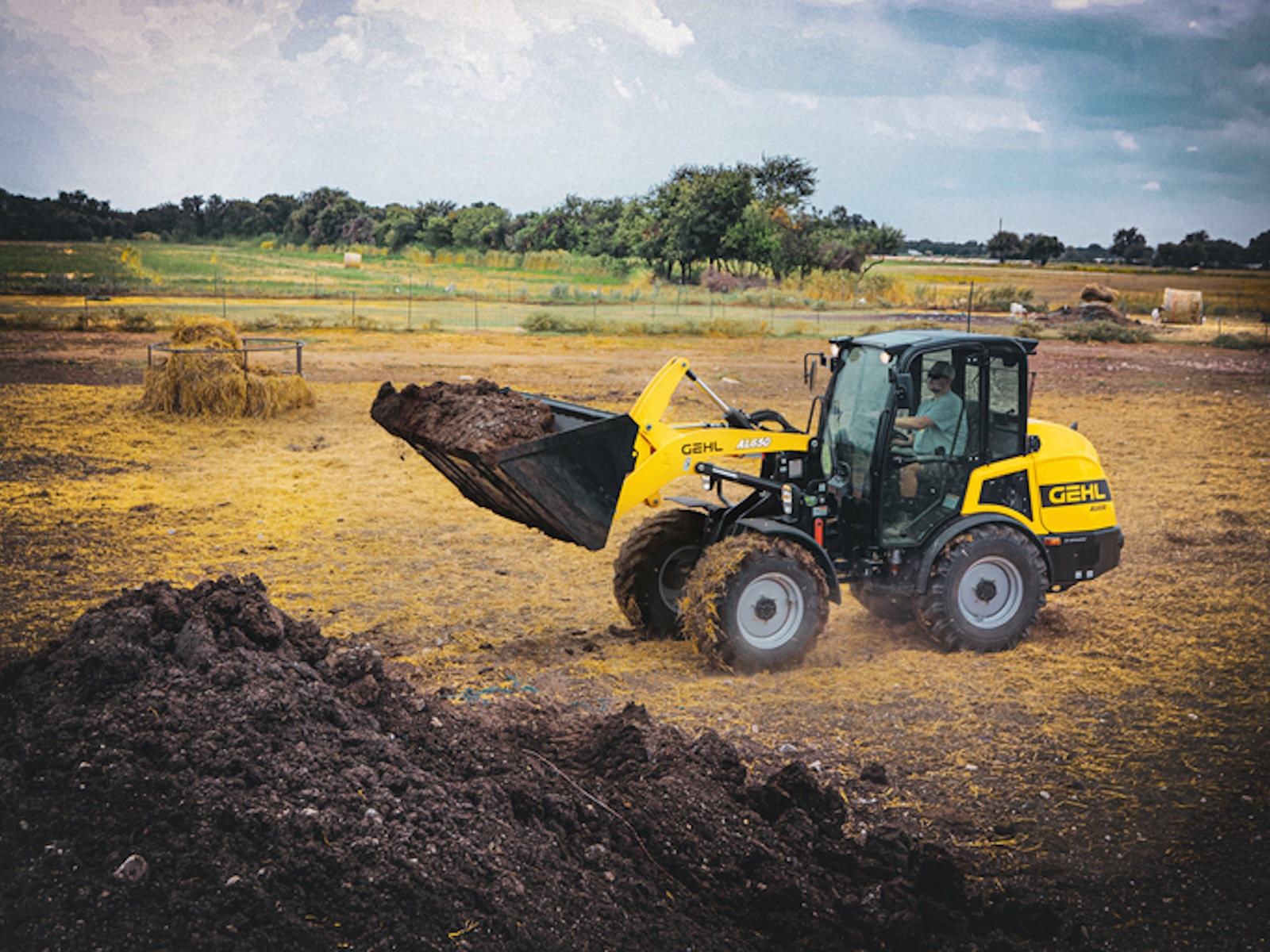

2026 Gehl AL650
AL650
Articulated loaders
Built to deliver a new level of productivity in the most demanding environments, the AL650 combines compact dimensions with raw power—giving you the ability to slip in and out of tight spaces without compromising on lift strength. With full 360° visibility, an adjustable workspace, and ergonomic controls centralized around an intuitive joystick, the AL650 ensures you'll get the job done in comfort all day long. When hard work comes calling, answer with a machine that's as capable, strong, and committed as you.
Features May Include:
Key Features
- 4-Post Canopy ROPS and FOPS certified
- Proportional Auxiliary Hydraulics with Case Drain and Circuit Pressure Dump
- Inching Pedal
- Digital Display with Audible and Visual Indicators
- Differential Lock (Hydraulically Activated Front and Rear)
- Power-A-Tach® Attachment Mounting System (4-Point, Skid Steer and EuroStyle)

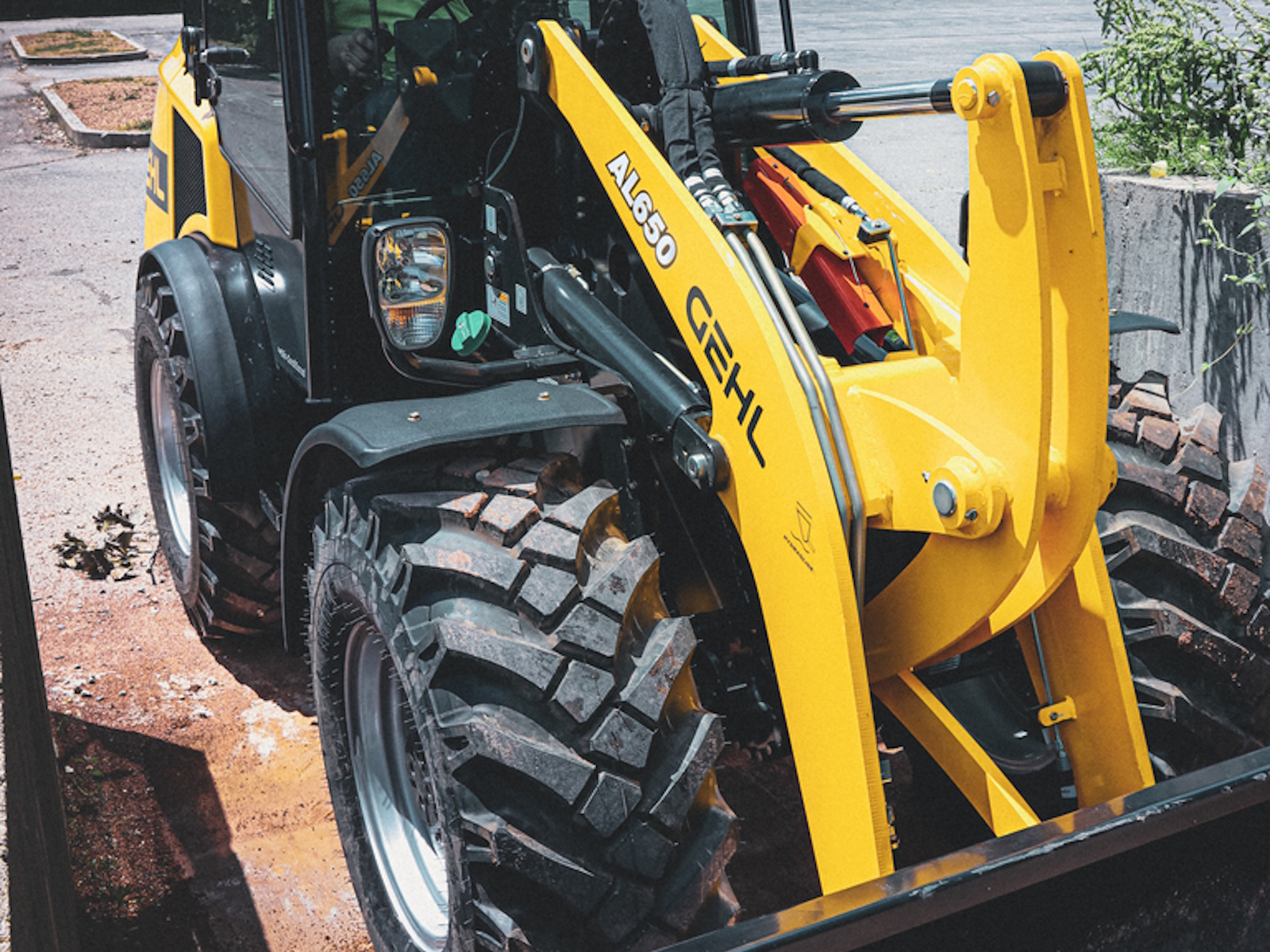

- Lift Arm with Z-Bar Kinematics, Limited Self-Level and Mechanical Return to Dig
- Lift Arm Float Detent
- Hydraglide™ Ride Control*
- High-Flow Auxiliary Hydraulics*
*Optional Features
Key Specifications
- 6,409 lbs (2907 kg) Static Tipping Load with Bucket Straight
- 65 hp (48.5 kW) gross power @ 1560 rpm
- 8' 1" (2.47 m) height to top of ROPS
- 10' 3" (3.13 m) maximum lifting height (below forks)
- 10' 10" (3.31 m) outer turning radius
Info
Industry
Agriculture
Make
Gehl
Model
AL650
Trim
Base
Year
2026
Stock Number
TBA
Category
Loader
Subcategory
Small Articulated
Condition
New
Specifications
Load Capacity
Static tipping load with bucket (straight): 6744 lbs | Static tipping load with bucket (full turn): 4916 lbs | Static tipping load with forks (straight): 5302 lbs | Unladen weight (with forks) with 4-post canopy: 9149 lbs
Height
Max. of bucket pivot point: 10 ft 11 in | Max. lifting (below forks): 10 ft 3 in | Overall with 4 posts canopy: 8 ft 1 in | Overall with cab: 8 ft 1 in
Notes
Breakout force with bucket: 5743 daN | Tilt-up angle: 45 ° | Tilt-down angle: 45 ° | Articulation angle: 45 ° | Overall width less bucket: 5 ft 5 in | Overall length - Less Bucket: 14 ft | Hydraulic pump type: Gear pump | Hydraulic flow - Pressure: 18 US gpm / 2901 PSI | High-Flow Option (l/min): 26 US gpm | Drive hydraulic system pressure: 6092 PSI | Vibration on hands/arms: < 8 ft/s² | Cab certification: ROPS - FOPS cab (level 1)
Wheelbase
79 in
Width
Overall of 4 posts canopy: 4 ft 6 in | Overall cab: 4 ft 6 in
Ground Clearance
1 ft 3 in
Engine
Brand: Yanmar | Model 4TNV98CT | Norm: Tier 4 final | Engine cooling system: 2 radiators water + hydraulic oil
Cylinders
Number of cylinders / Capacity of cylinders: 4 - 201 in³
Power/Horsepower
64.40 Hp / 48 kW
Torque
Max / Engine rotation: 207 ft/lbs / 2300 rpm
Transmission
Type: Hydrostatic | Number of gears (forward / reverse): 2 / 2 | Max. travel speed (may vary according to applicable regulations): 19 mph | Travel speed (laden): 19 mph | Differential lock: Front and rear locking of the machine
Brakes
Parking: Manual| Service: Hydraulic drum brake on front axle, acting on all 4 wheels
Fuel Capacity
Hydraulic oil: 19 US gal | Tank: 25 US gal
Fuel Type
Diesel
