Description

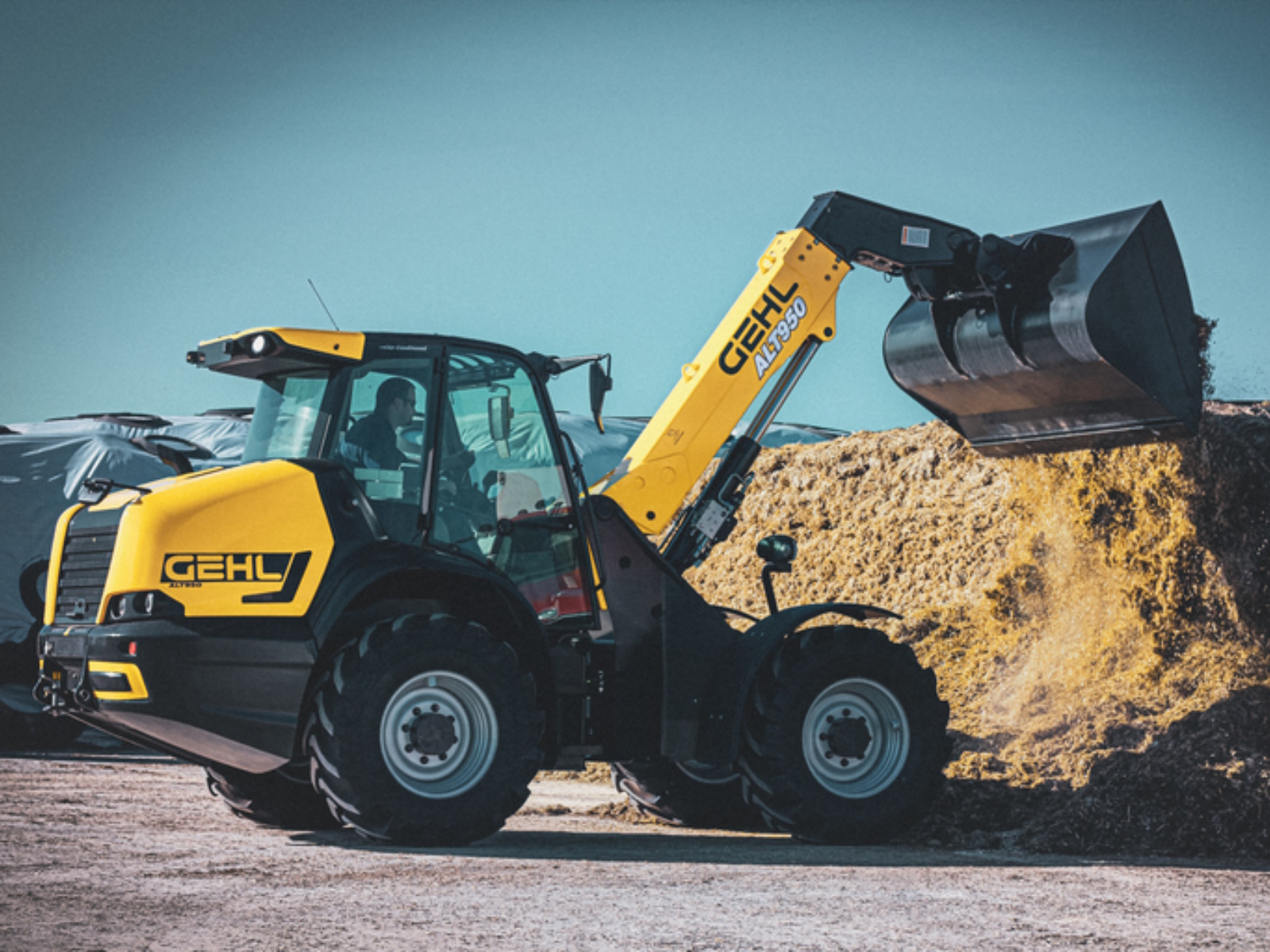

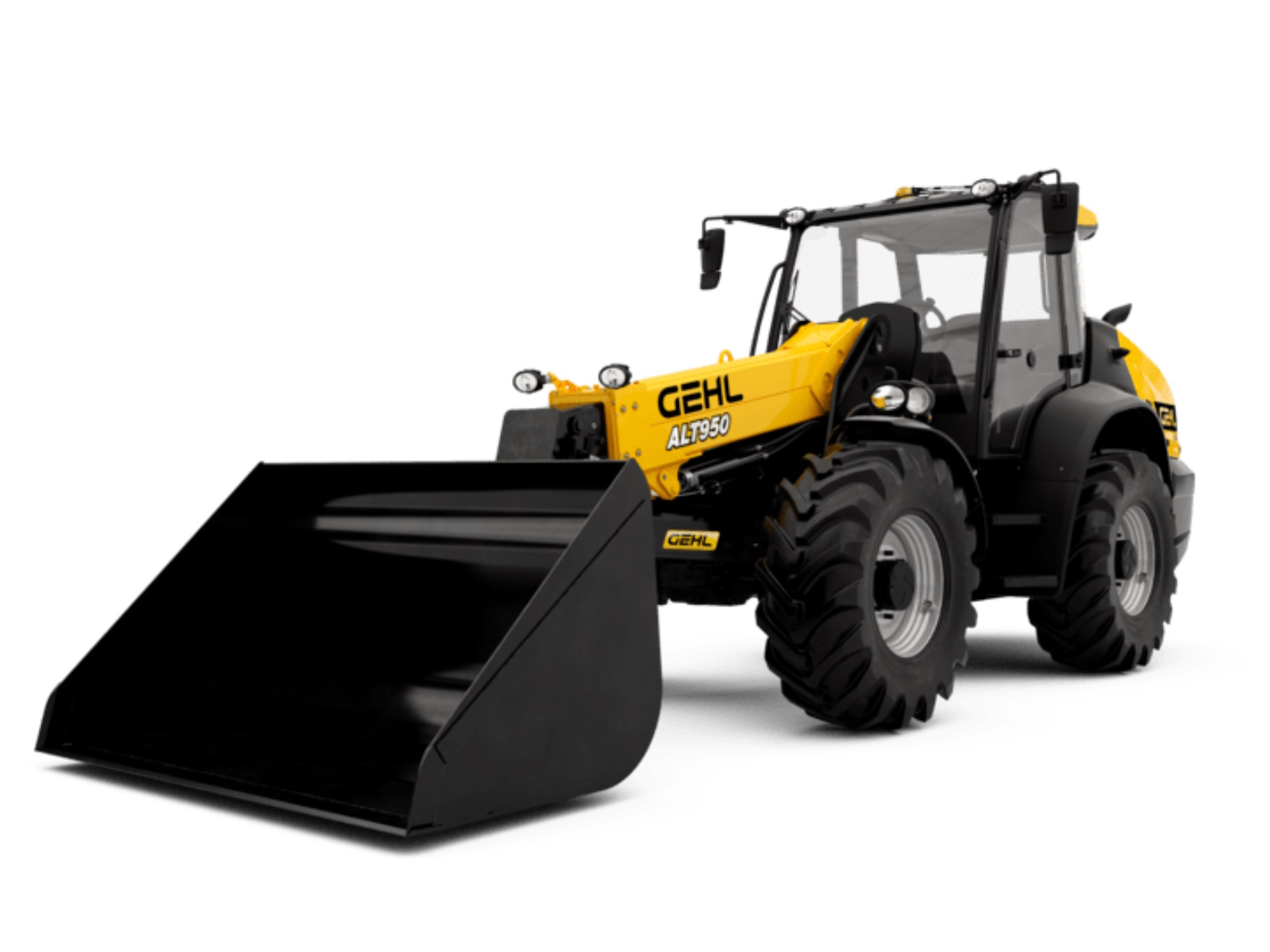

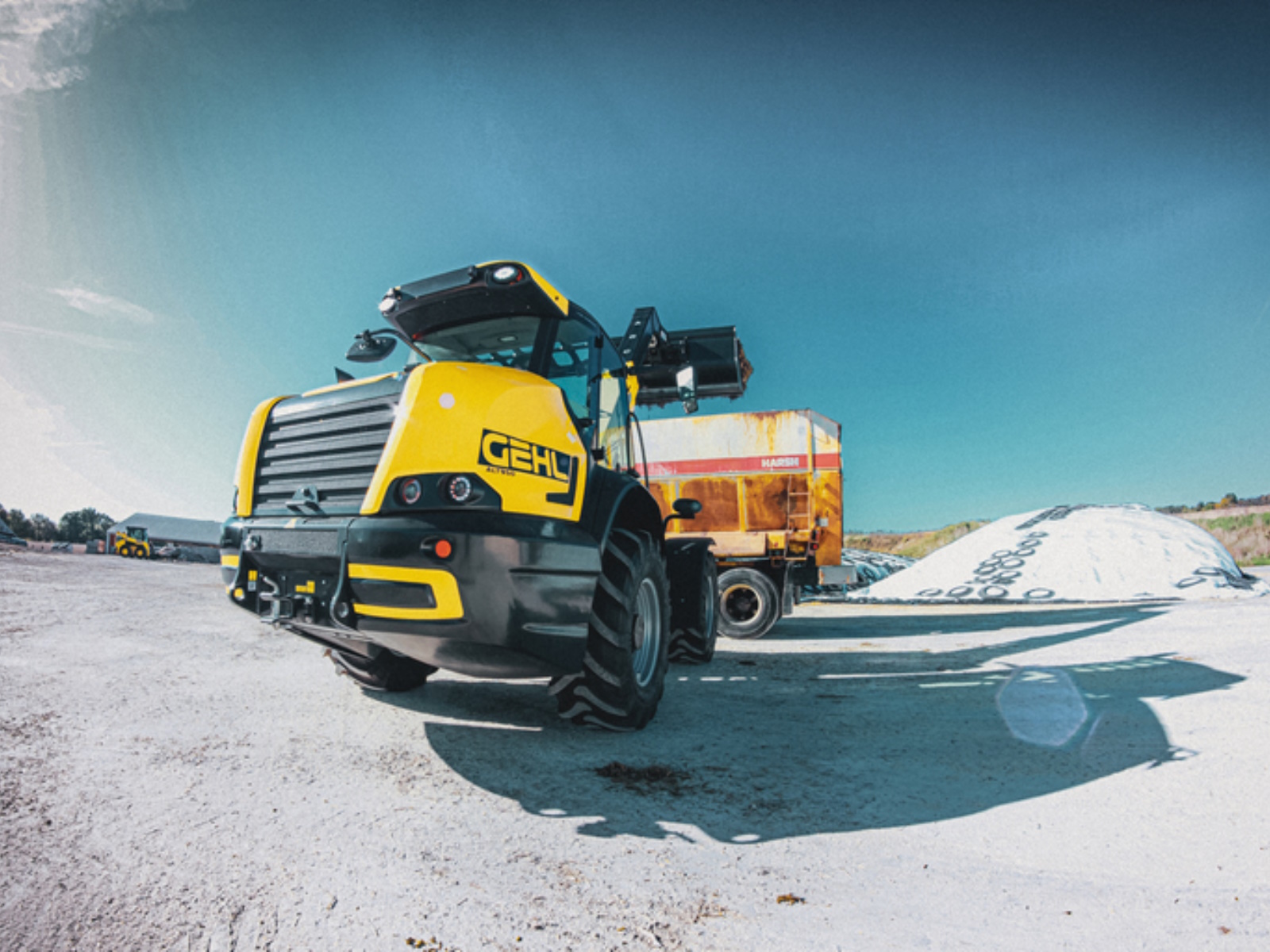

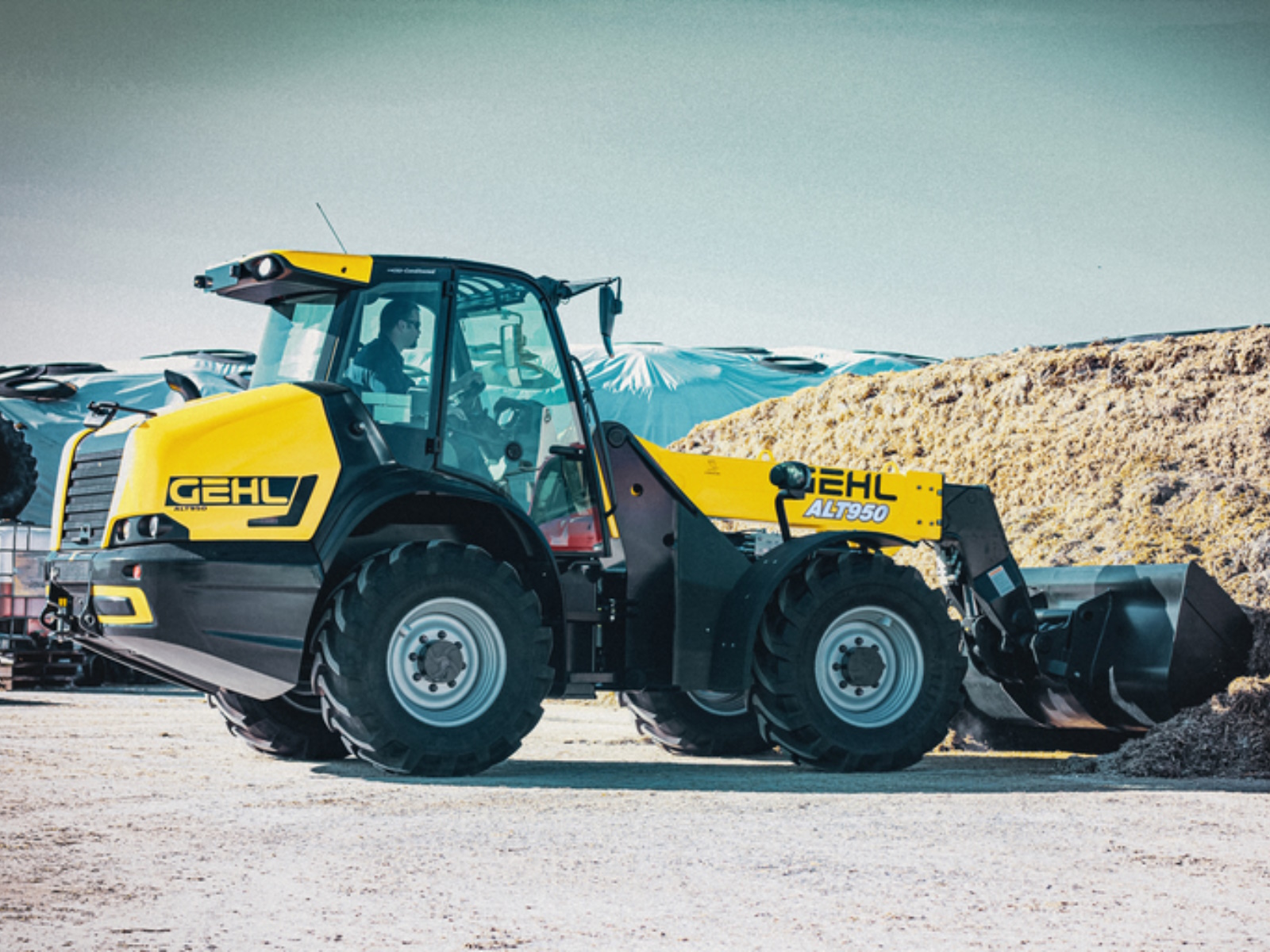

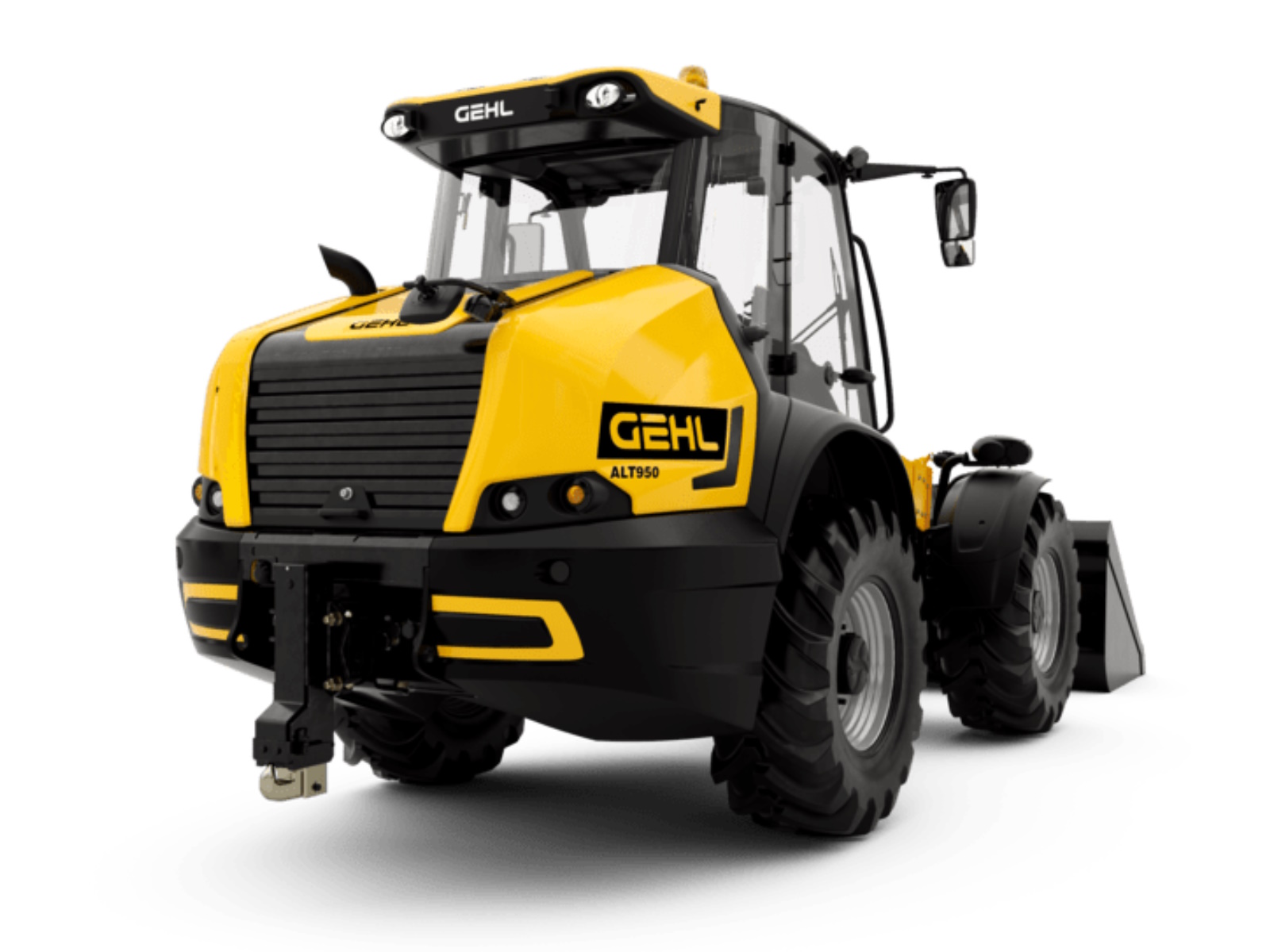

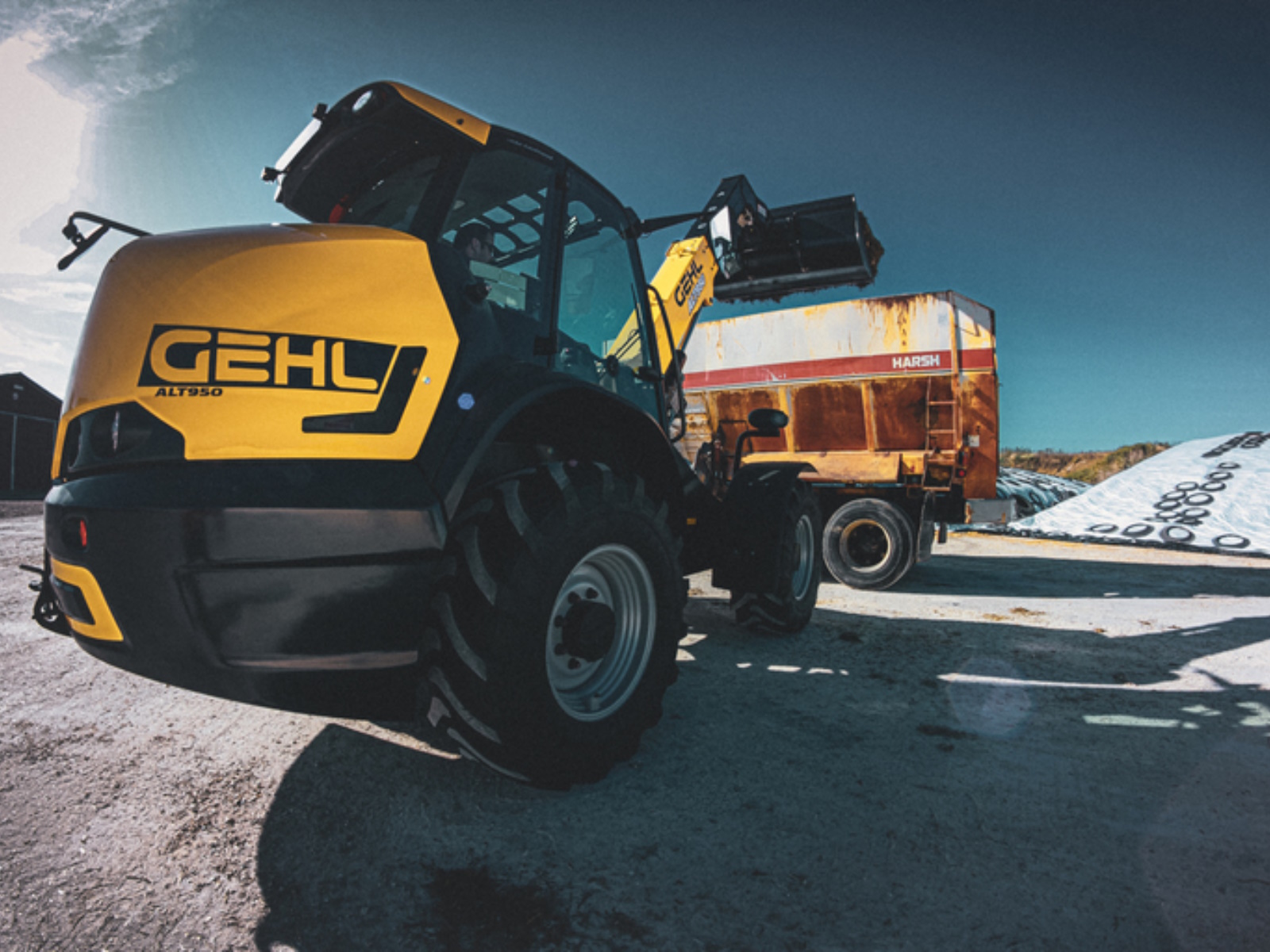

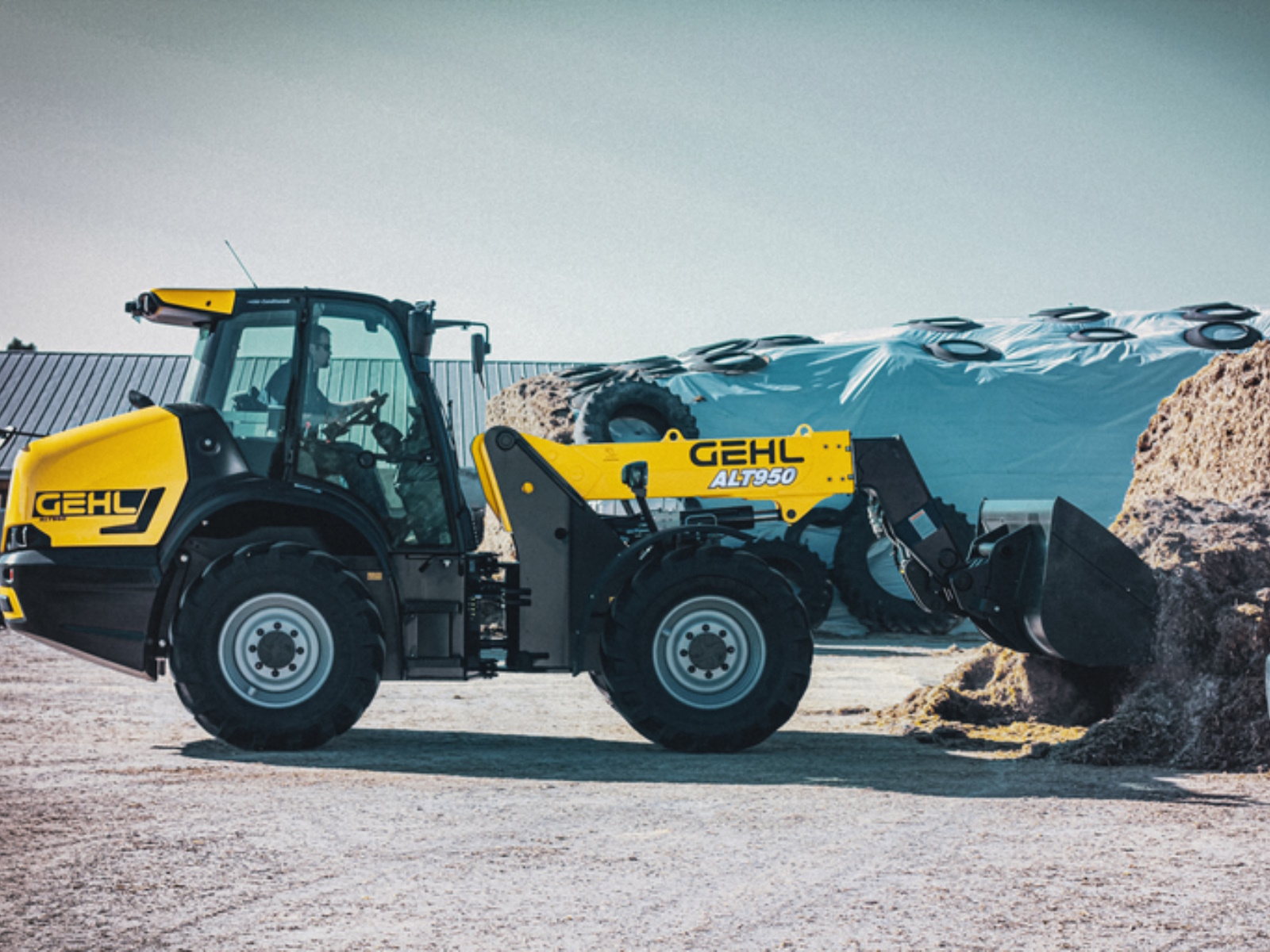

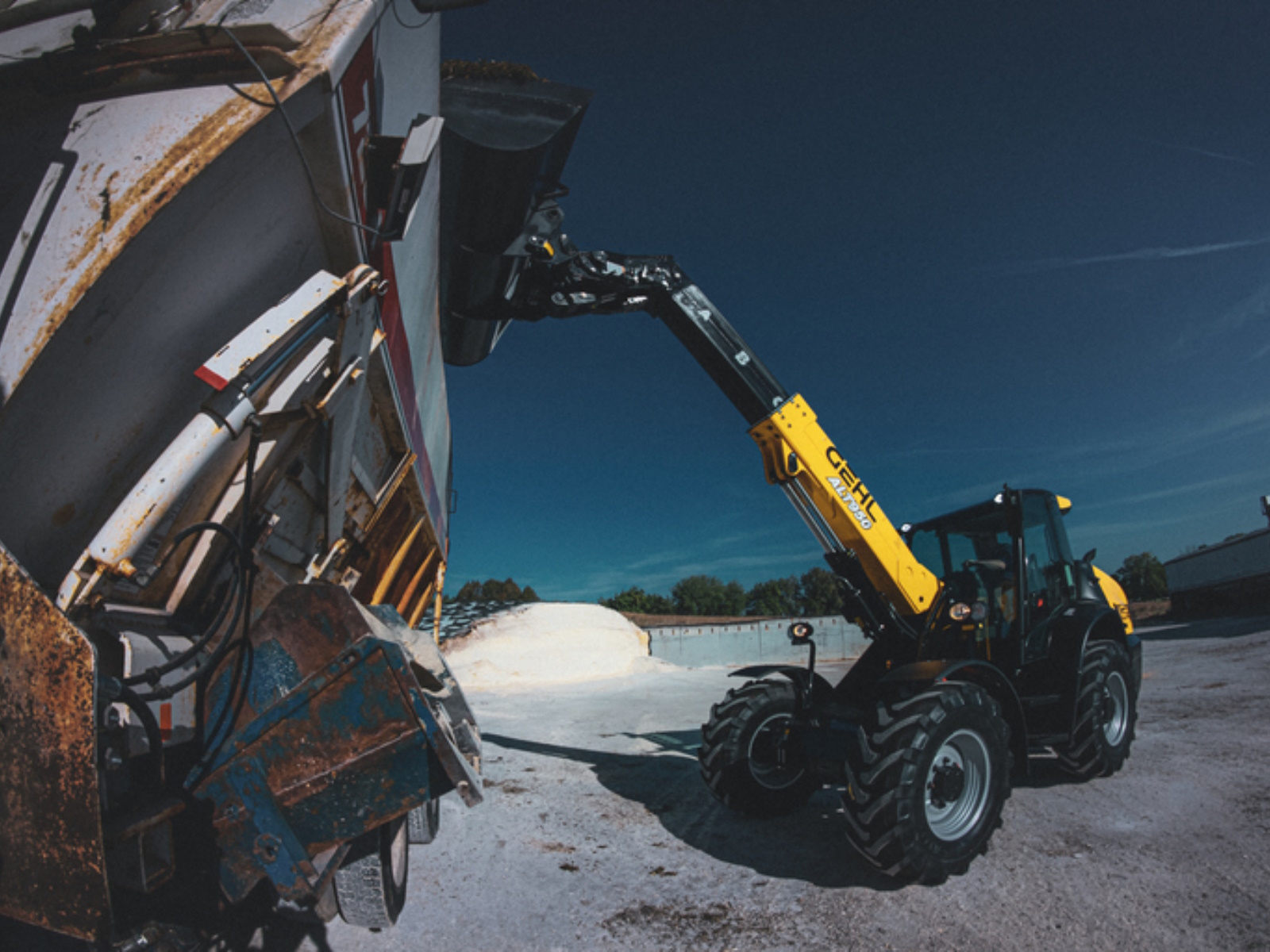

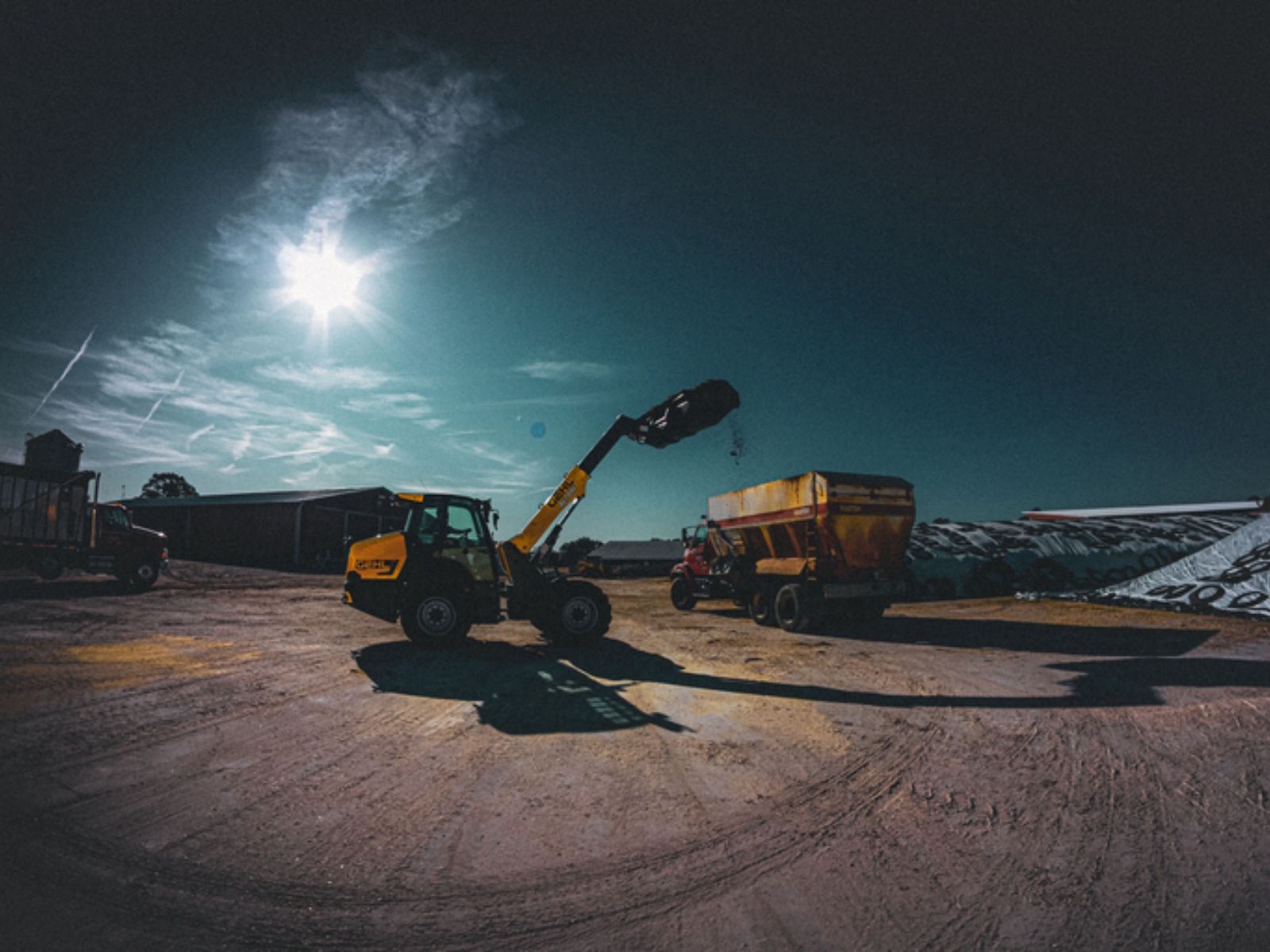

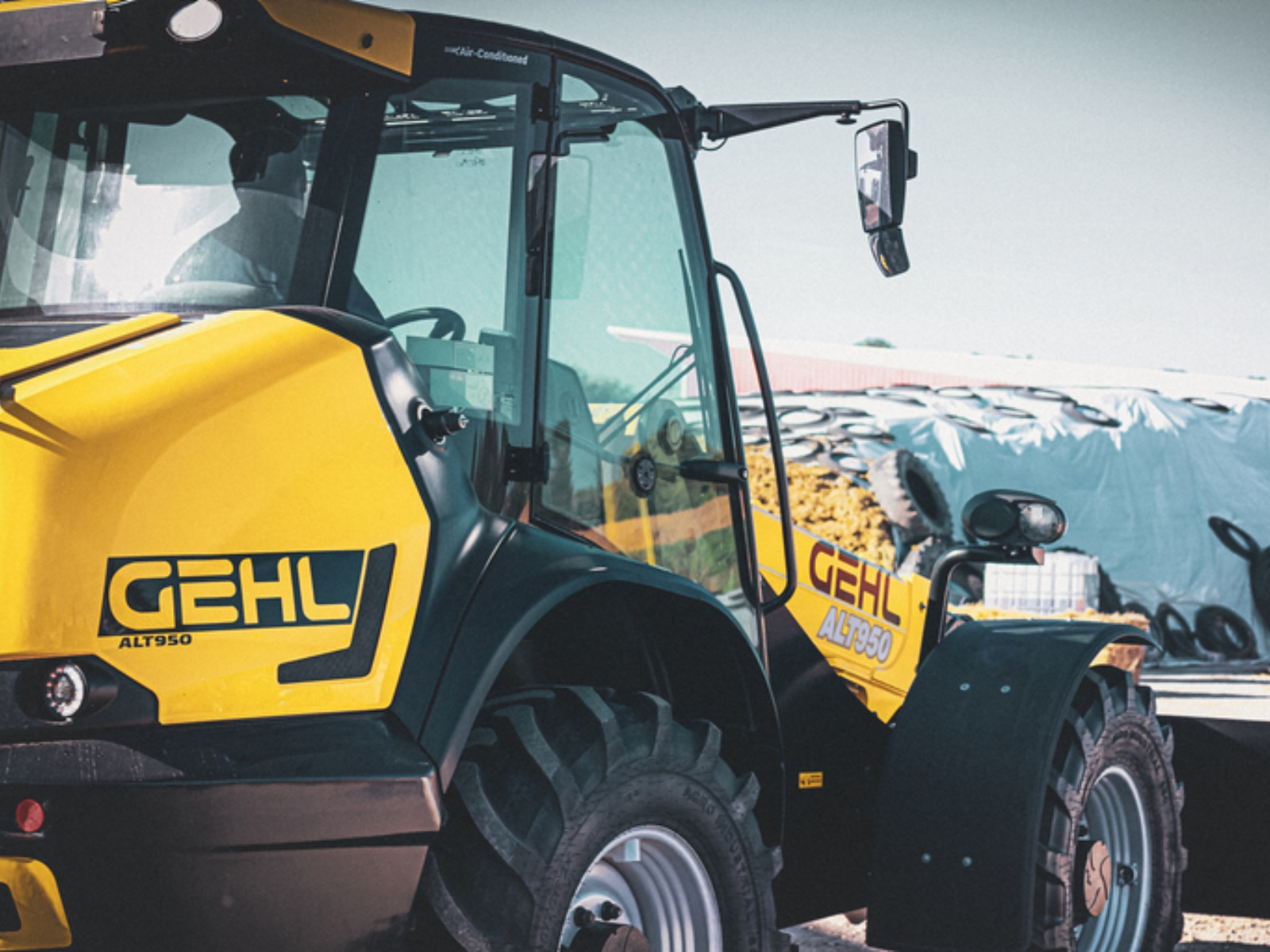

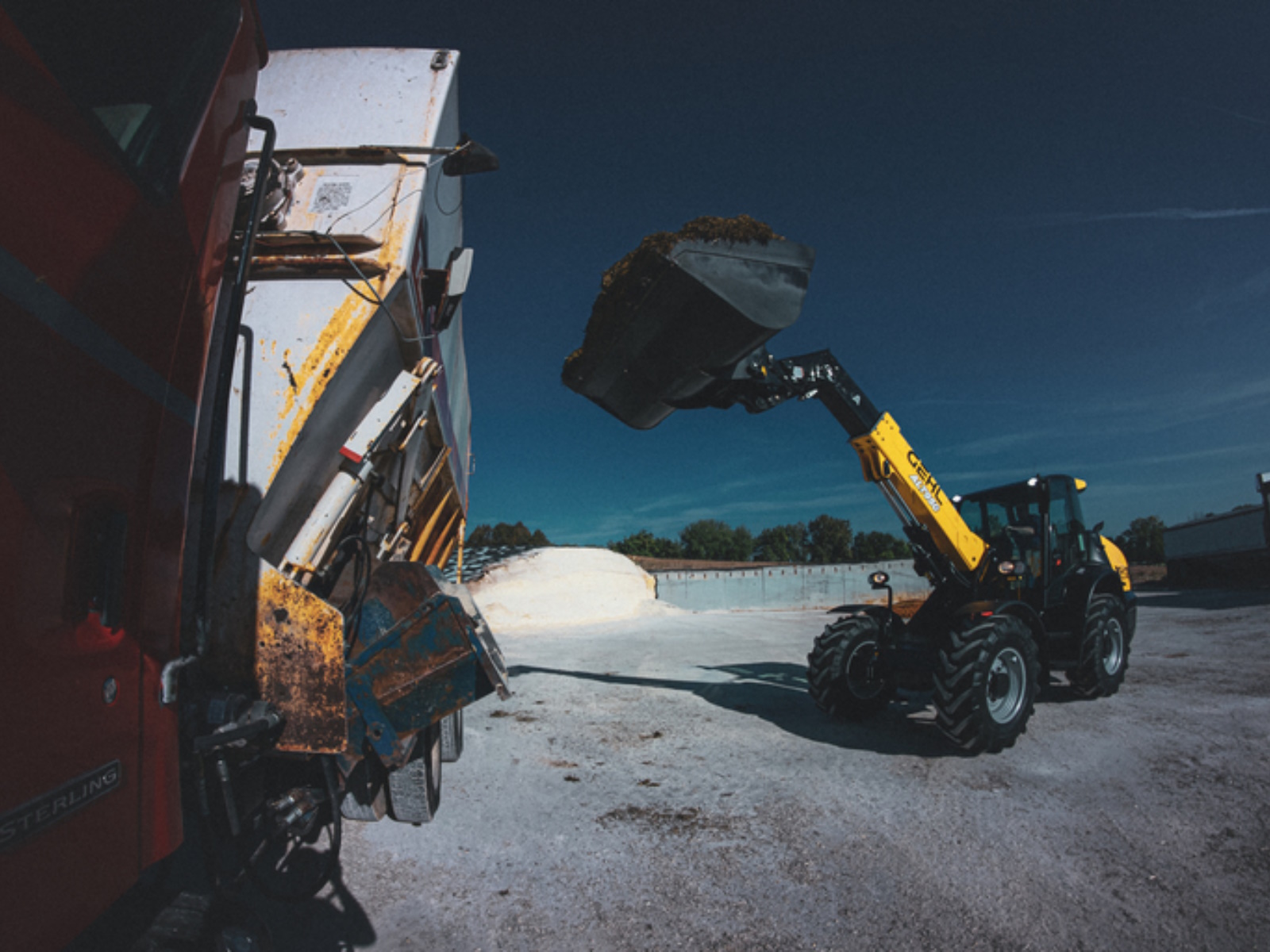

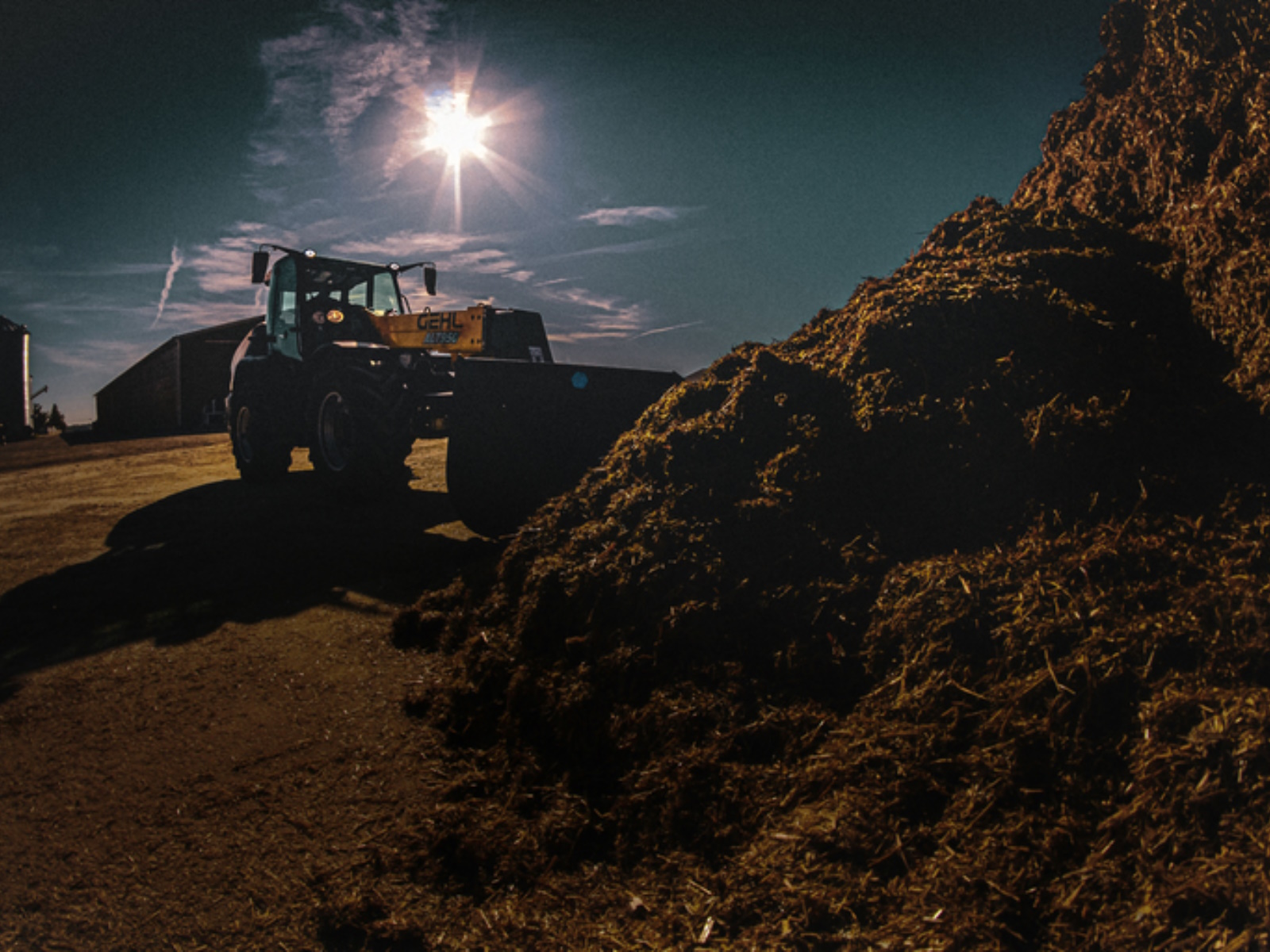

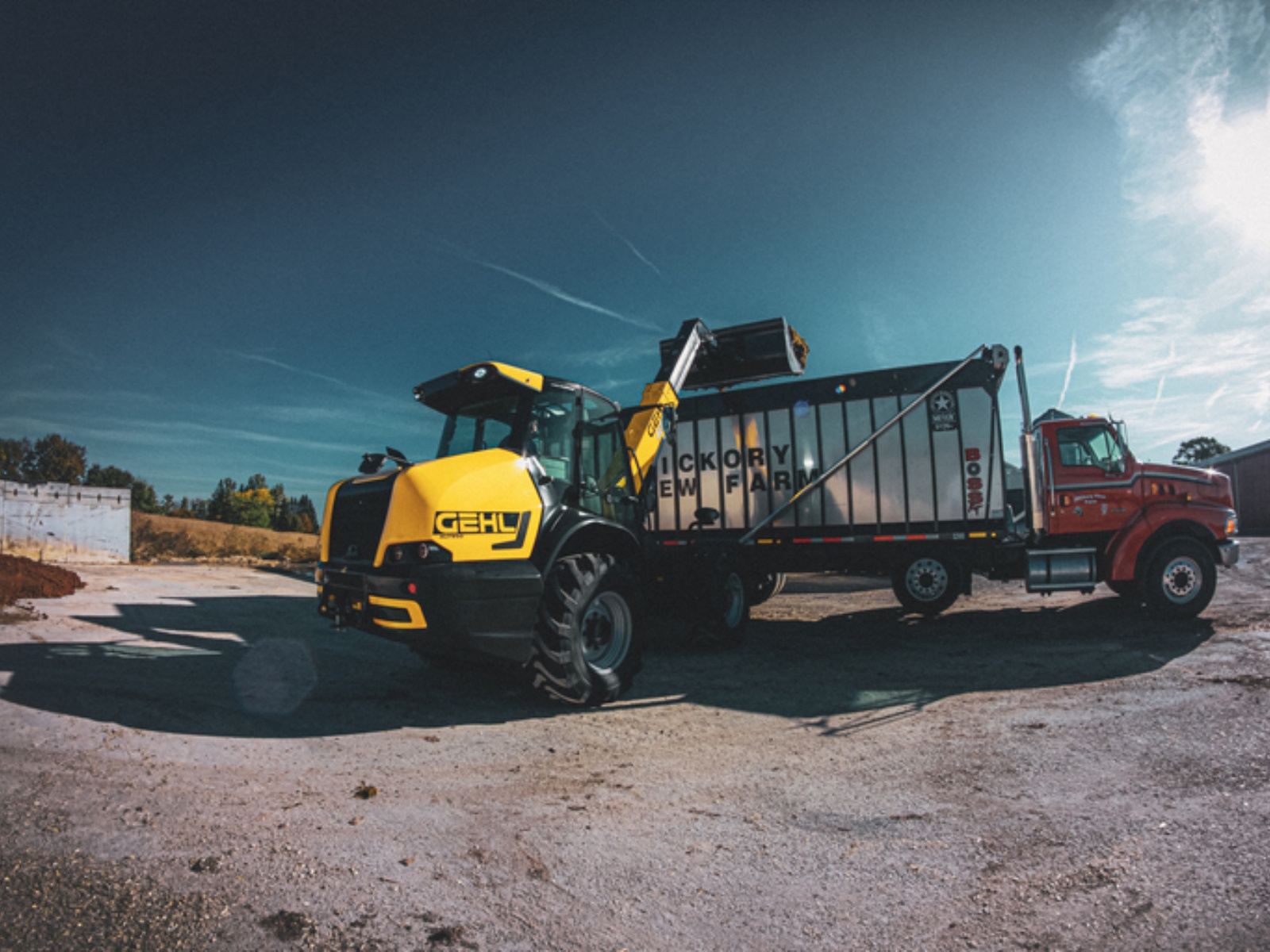

2026 Gehl ALT950
Articulated loaders
For jobs on construction or agricultural sites that demand the highest lift and maneuverability offered by an Articulated Loader, the ALT950 gets it done like no other. But don't let the size of this heavy-duty machine intimidate you. Intuitive controls make its telescopic boom easy to use, and a raised seating position delivers both improved safety during operation and unmatched visibility during dirty jobs. Working as hard as you do, the ALT950 represents your chance to reach new heights, get more done, and safely get you home at the end of the day—and maybe even a little early.
Features may include:
Key Features
- CVT Transmission
- Multi-Function Joystick
- Improved Visibility
- 2D Articualtion
- Rear Axle Oscillation
- Spacious Cabin
- Air-Conditioned Cab
- 143 hp Deutz Engine
- 158 L/min. Hydraulic Flow
- Hydraulic Locking System Attachment Mount
- Continuous Flow
- ECO Mode
Key Specifications
- 10,974 lbs (4978 kg) Static Tipping Load with Forks Straight
- 143 hp (105 kW) Gross Power @ 2300 rpm
- 8' 10" (2.7 m) Height to Top of ROPS
- 17' 0" (5.2 m) Maximum Lifting Height (below forks)
- 13' 9" (4.2 m) Outer Turning Radius
Standard Features
- 12Volt Power Port
- Adjustable arm rests
- Articulation Locking Bar
- Cabin with Heat
- Speed control
- ECO Mode
- Electronic Hand Throttle
- Inching Pedal
- License Plate Holder
- Lift Tilt Electronic Lockout Switch
- Limited slip differential
- Multi-Function Display Screen
- Proportional Auxiliary Hydraulics w/ Case Drain & Circuit Pressure Dump
- Radio
- Removable Rubber Floormat
- Rotating Beacon
- Side View Mirrors
- Steering Column with Tilt & Extension Adjustments
- Telescopic Lift Arm with Z-Bar Bucket Linkage & Mechanical Self-Level
- Additional storage boxes
- Continuous flow hydraulics
- Oscillating front axle
Optional Features
- Auto reversing fan
- Back-Up Alarm
- Cabin with Heat and Air Conditioning
- Hydraulic "pick-up hitch" (low position)
- LED Work Lights
- Rear Auxiliary Hydraulics
- Seven Way Adjustable Air Suspension Seat
- Ecostop
Info
Industry
Agriculture
Make
Gehl
Model
ALT950
Trim
Base
Year
2026
Stock Number
TBA
Category
Loader
Subcategory
Small Articulated
Condition
New
Specifications
Load Capacity
Breakout force with bucket: 6730 daN | Static tipping load with pallet forks - Straight with cab: 10975 lb | Static tipping load with forks (straight): 10975 lb | Static tipping load with forks (full turn): 9143 lb | Max. payload with forks as per EN 474-3 (80%): 7275 lb | Max. lifting height (below forks): 17 ft 1 in Max. outreach: 10 ft 10 in
Height
Overall height with cab: 8 ft 10 in | Reach at max. height: 3 ft 11 in
Weight
Unladen weight (with forks): 18717 lb
Length
Overall length to carriage (with hitch): 18 ft 9 in | Overall length - Less Bucket: 18 ft 9 in
Wheelbase
8 ft 2 in
Notes
Cab certification: Cabin ROPS - FOPS level 2 | Noise at driving position (LpA) tested following NF EN 12053 norm: 72 dB | Noise to environment (LwA): 107 dB | Vibration on hands/arms: < 8 ft/s² | Hydraulic pump type: Variable displacement pump | Hydraulic flow - Pressure: 42 US gpm / 3916 PSI | Crowd: 3.50 s | Dump: 2.70 s | Tilt-up angle: 9 ° | Tilt-down angle: 156 ° | Articulation angle: 44 °
Width
Overall width less bucket: 7 ft 6 in
Tires
Alliance - A580 - 460/70 R24 159A8
Ground Clearance
1 ft 3 in
Engine
Brand: Deutz | Model: TCD 4.1 L4 | Norm: Tier 4
Cylinders
4 - 246 in³
Power/Horsepower
143 Hp / 105 kW
Torque
406 ft/lbs / 2300 rpm
Fuel System
3 radiators water + intercooler + hydraulic oil
Transmission
M-Varioshift | Max. travel speed (may vary according to applicable regulations): 25 mph | Travel speed (laden): 25 mph | Differential lock: Limited slip differential on front and rear axles | Parking brake: Manual | Service brake: Oil-immersed multi-discs braking on front & rear axles
Fuel Capacity
Hydraulic oil: 40 US gal | Fuel tank capacity: 40 US gal | Diesel Exhaust fluid (AdBlue® type) tank capacity: 3 US gal
