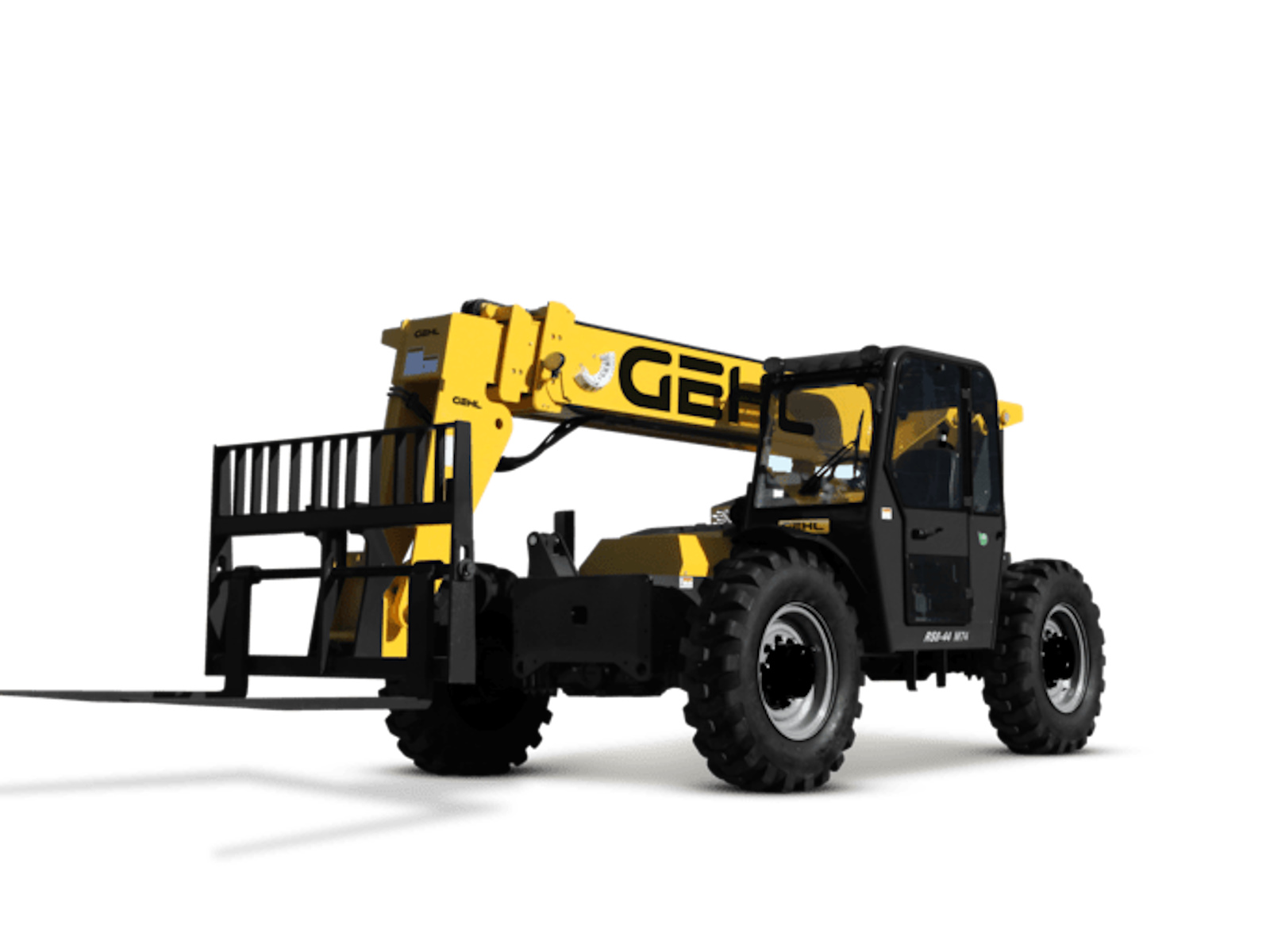

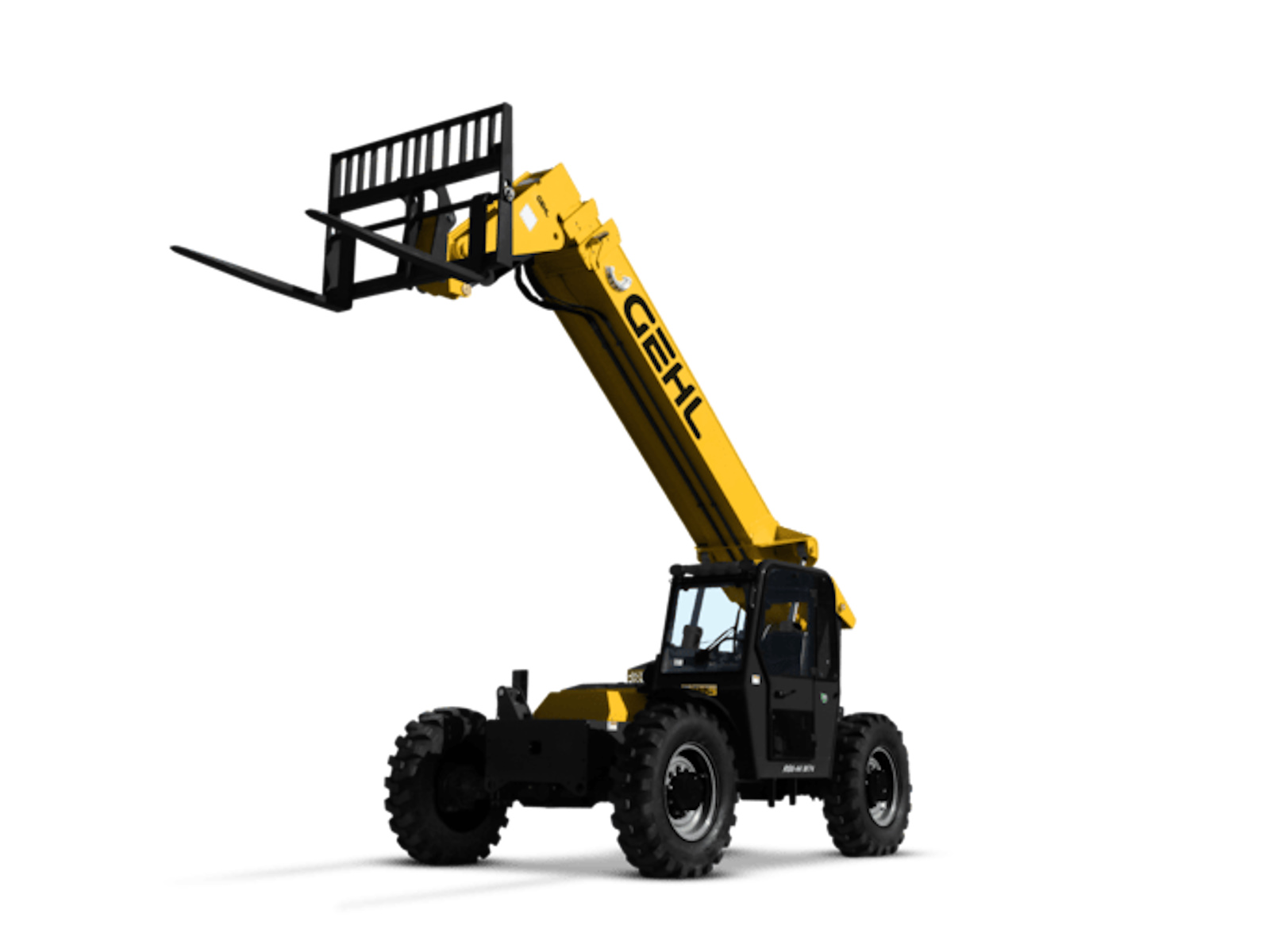

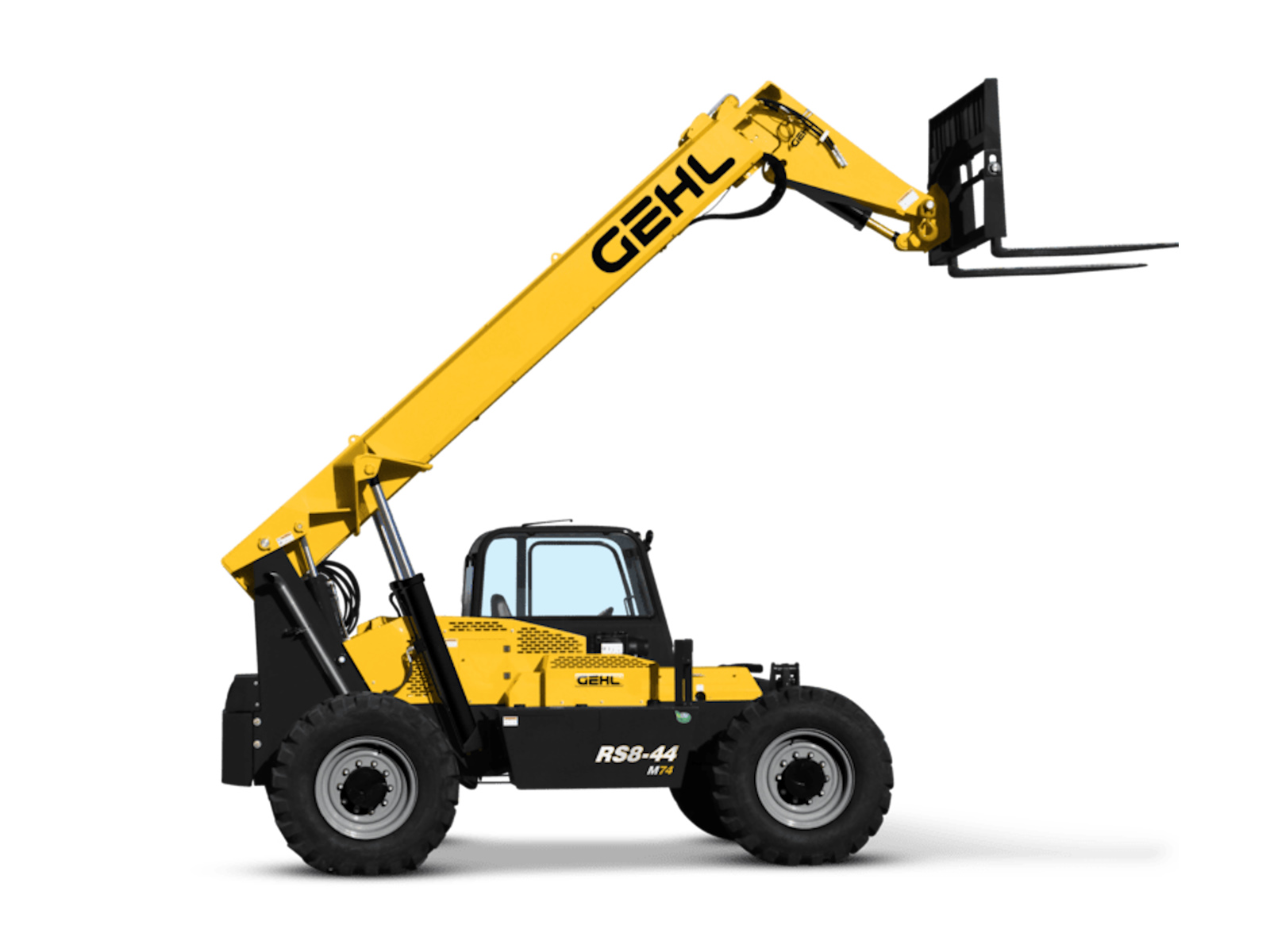

2026 Gehl RS8-44 M74
Sick of unexpectedly running out of DEF on the jobsite or having to stop to top it off? We know you are. The Mark74 series of the RS Telescopic Handlers is perfect match for your construction site. Get the reach and lift you need with less hassle to the driver. With unmatched visibility and superior comfort, this machine "Works Like You."
Features May Include:
- 12 Volt Battery
- 12Volt Power Port
- Back-Up Alarm
- Boom Tip Lift Hook
- Four Wheel Drive
- Multi-Function Display Screen
- Rear Axle Stabilization
- Self-Leveling Forks
- Crab mode
- Wet disc brakes
- Engine Block Heater
- Easy Manager
Key Features
- No DEF or DPF needed
- Simple F-N-R joystick operation
- 360° operator visibility
- 4-wheel drive/4-wheel steer
Key Specifications
- 8,000 lbs. (3629 kg) maximum lifting capacity
- 44' 0" (13.4 m) maximum lifting height
- 7,000 lbs. (3176 kg) lift capacity to 44' 0" (13.4 m)
- 74 hp (55 kW) Deutz diesel engine
Optional Features
- Enclosed Cab with Heat and A/C
- Foam Filled Tires
- Front Outriggers
- Light Package - LED
- PWP System 3-Section Boom
- Rearview Camera
- Rock Tread - Air Foam Tires
- Solid Rubber Tires
- Suspension Seat
Info
Industry
Agriculture
Make
Gehl
Model
RS8-44 M74
Trim
Base
Year
2026
Stock Number
TBA
Category
Telehandler
Subcategory
Compact
Condition
New
Specifications
Fuel Capacity
Max: 8000 lb. | Tank: 47 US gal
Fuel Type
Gas
Height
Lifting: 44 ft. | Overall: 7 ft 8 in
Engine
Power: 55 kW | Brand: Deutz | Norm: Stage IV, Tier 4 final
Length
To Carriage: 19 ft 10 in | Face to Forks: 19 ft 1 in
Width
Overall: 8 ft 2 in | Cab Width: 33 in
Wheelbase
10 ft
Ground Clearance
16 in
Turning Radius
External: 13 ft 8 in
Weight
Unladen: 23501 lb. | Overall: 23501 lb.
Tires
Standard: 13 x 24
Engine Type
Model: TCD 3.6 L4
Power/Horsepower
74 HP / 55 kW
Torque
288 ft/lbs @ 1300 rpm
Transmission
Type: Torque converter with powershift gearbox
Brakes
Parking: Hydraulic spring release SAHR | Service: Wet disc brakes
Family/Type
Hydraulic Pump: Gear pump
Oil Type
Hydraulic: 31 US gal
Steering
Wheels: 2 / 2
Wheels
Drive: 2 / 2
