2026 Gehl V335 - TBA
Get in Touch
Description

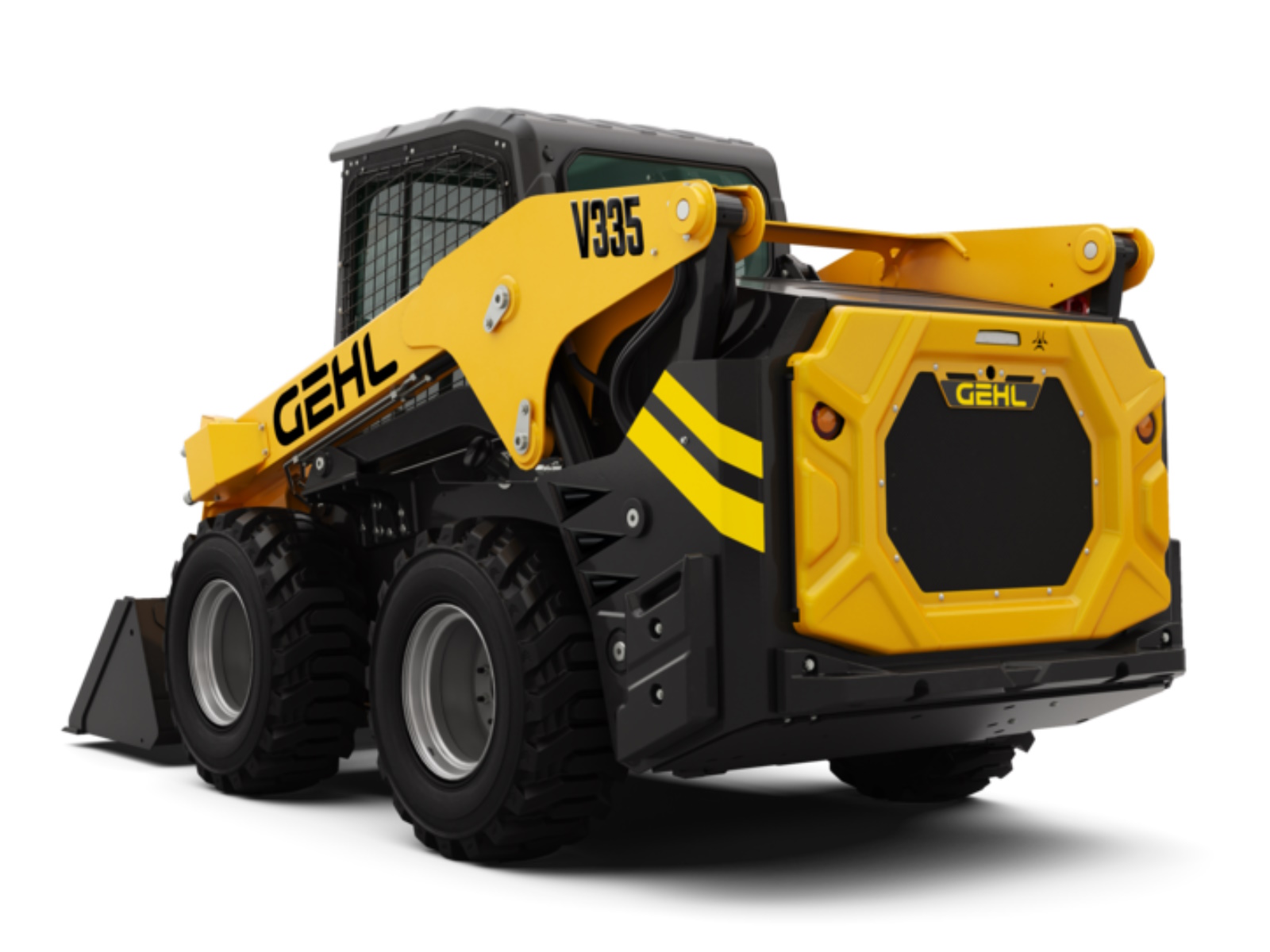

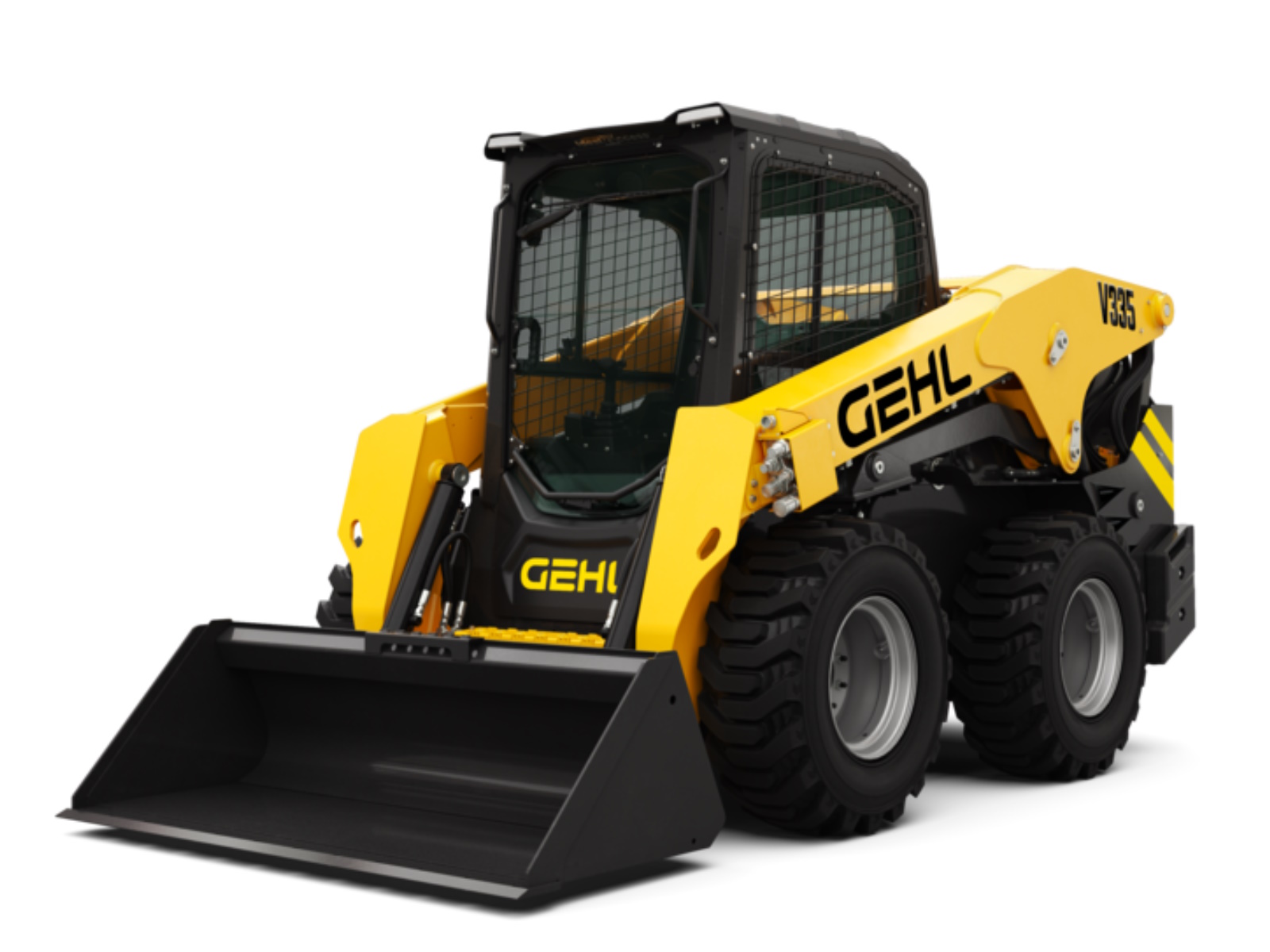

2026 Gehl V335
Info
Industry
Agriculture
Make
Gehl
Model
V335
Trim
Base
Year
2026
Stock Number
TBA
Category
Loader
Subcategory
Skid-Steer
Condition
New
Specifications
Load Capacity
Tipping capacity: 6702 lb | Operating Weight: 9835 lb | Rated Operating Capacity with Optional Counterweight: 3550 lb | Operating Capacity At 50% Tipping Load: 3350 lb
Wheelbase
53 in
Height
Seat to ground height: 41 in | Rollback Angle at Full Height: 94 ° | Dump reach - Full height: 33 in | Dump height: 104 in | Overall Height to top of ROPS: 82 in | Overall Height to top of ROPS: 82 in | Height to Hinge Pin - Fully Raised: 134 in | Overall Operating Height - Fully Raised: 173 in
Length
Overall length with bucket: 154 in | Overall length - Less Bucket: 123 in
Width
Overall width less bucket: 73 in | Bucket Width: 74 in
Ground Clearance
8 in
Turning Radius
Clearance Radius - Front with Bucket: 91 in
Notes
Standard flow - Auxiliary hydraulics: 25 US gpm | Auxiliary Hydraulic Pressure: 3450 PSI | High-Flow Auxiliary Hydraulics - Option: 40 US gpm | High-Flow Auxiliary Hydraulics Pressure - Option: 3450 PSI | Travel speed (unladen): 7 mph | Travel Speed with Two-Speed Option - Maximum: 12 mph
Tires
12 x 16.5
Engine
Brand: Deutz | TCD3.6
Torque
302 ft/lbs / 1600 rpm
Fuel Type
Battery
Power/Horsepower
99.80 Hp / 73.38 kW
Starter
4 kW
Fuel Capacity
28 US gal | Hydraulic tank capacity: 7 US gal
