2023 Dressta TD-15M TD-15M SERIES-2

2023 Dressta TD-15M TD-15M SERIES-2

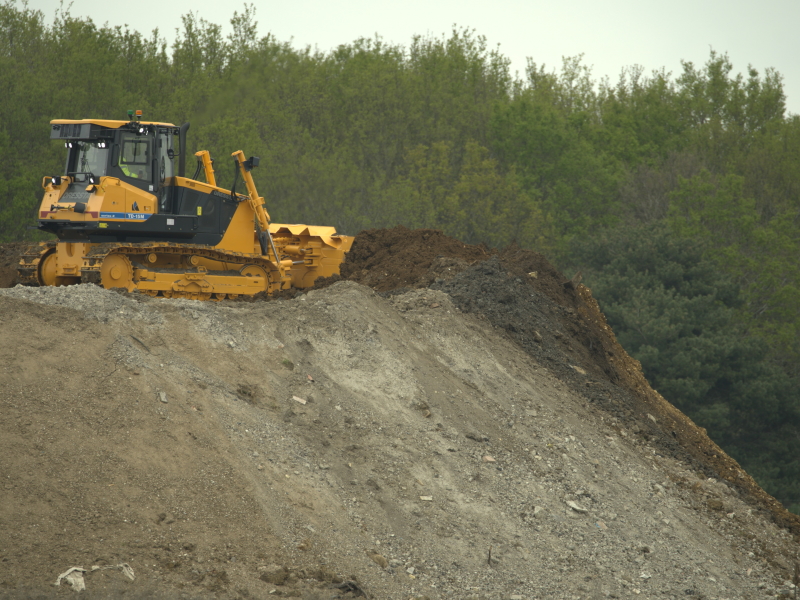

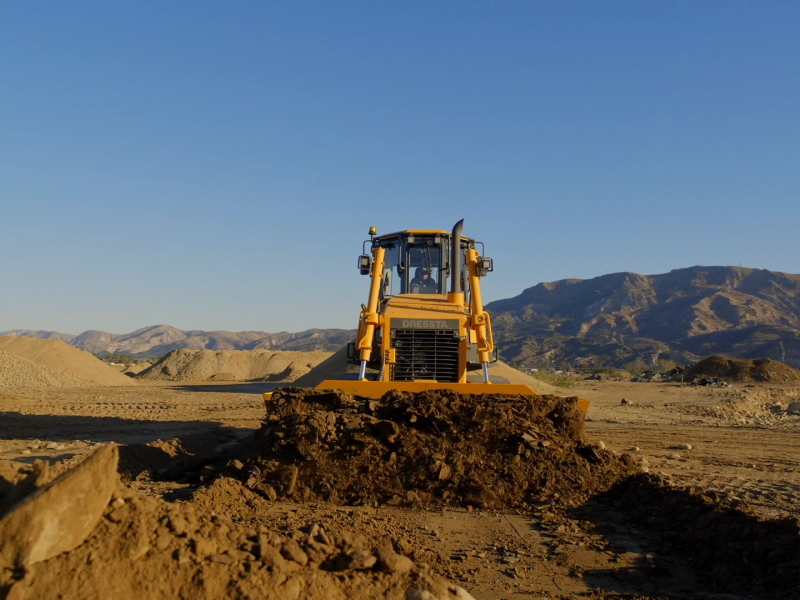

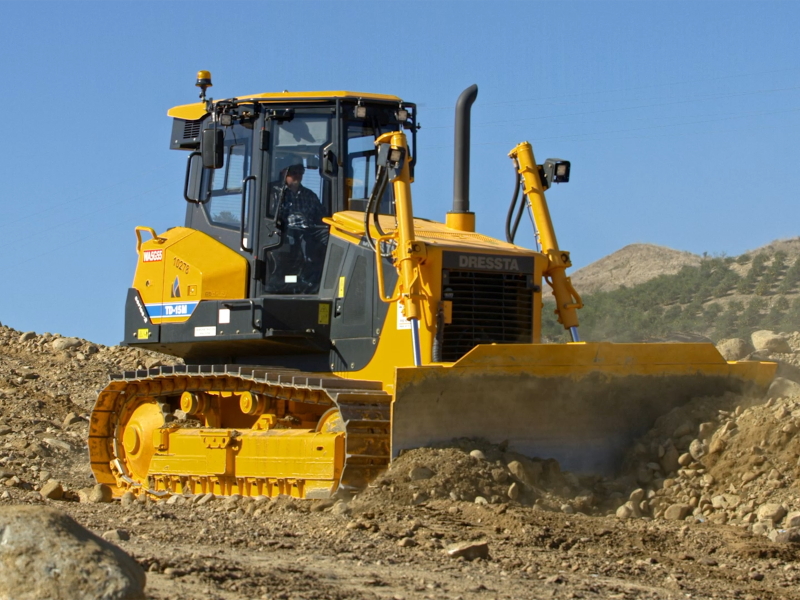

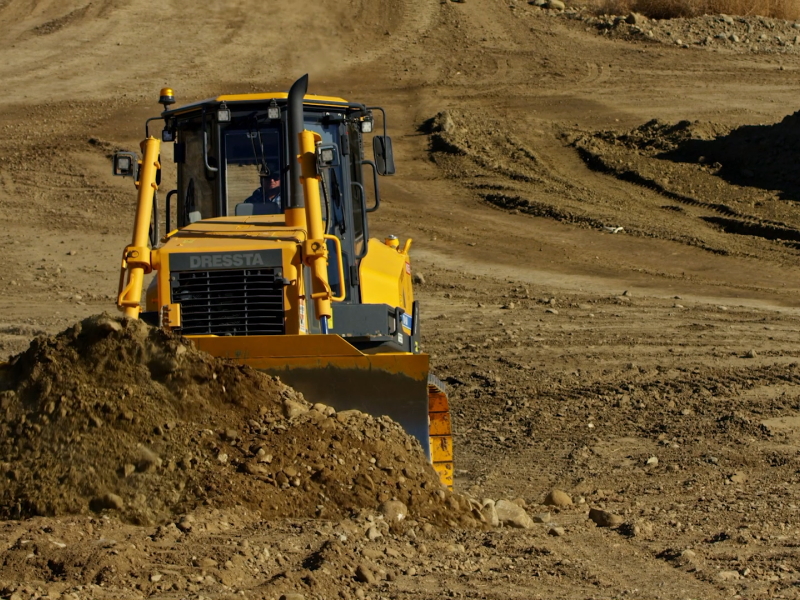

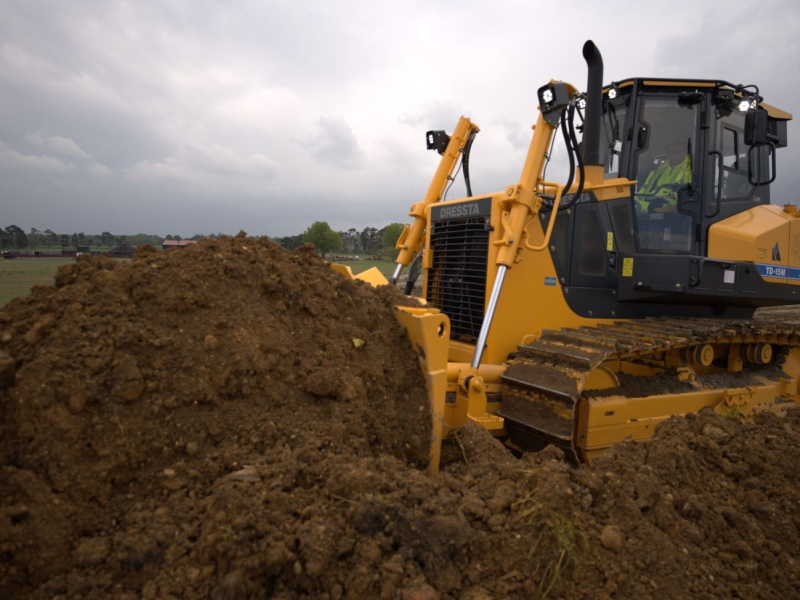

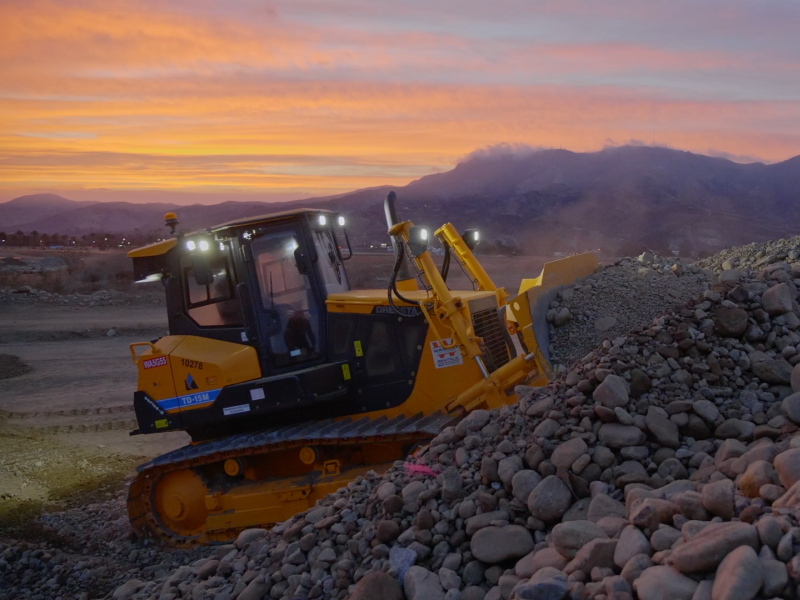

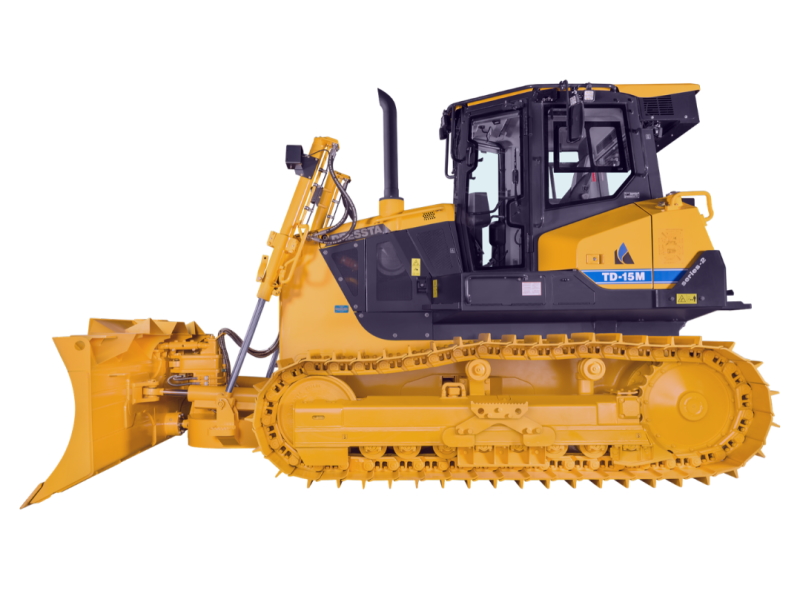

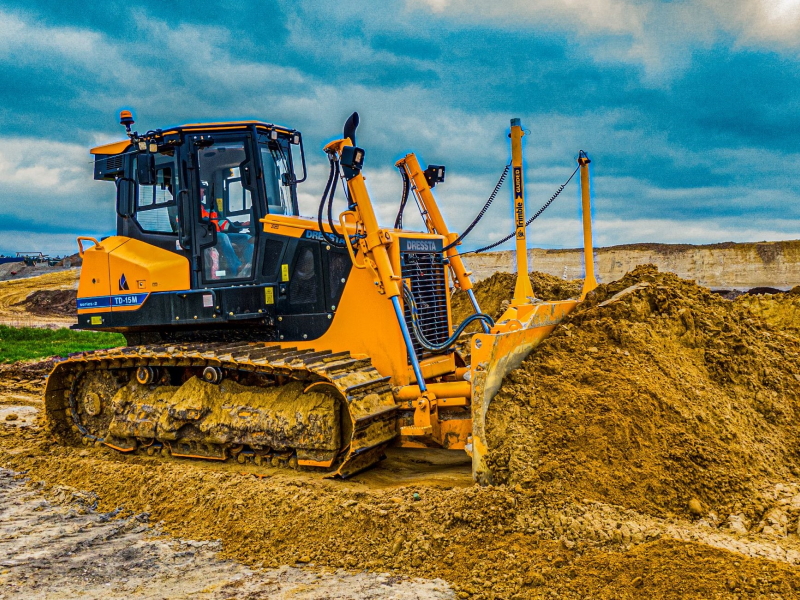

When it comes to precision and control, the New TD-15M stands alone.

On road & highway, landfill, forestry, landscaping and construction sites; the superior power, control and stability of New TD-15M sets this dozer apart. Climb into the cab, put in a long day at the office, and you’ll know you’ve made the right choice.

We’ve put ourselves in your seat and delivered everything the  operator wants and needs. A superior, safe, quiet, and comfortable cab with easy to operate controls. A perfect view of the jobsite with high all-round visibility. With our new, electro-hydraulically controlled proportional joysticks you’ll experience a new level of blade control and accuracy, helping you to get the job done faster. Easy access service and maintenance points , but above all, the real power, control and stability you need to get the job done right first time.

Features Include:

AN ALL-NEW OPERATOR`S CAB - YOU DESERVE THE BEST

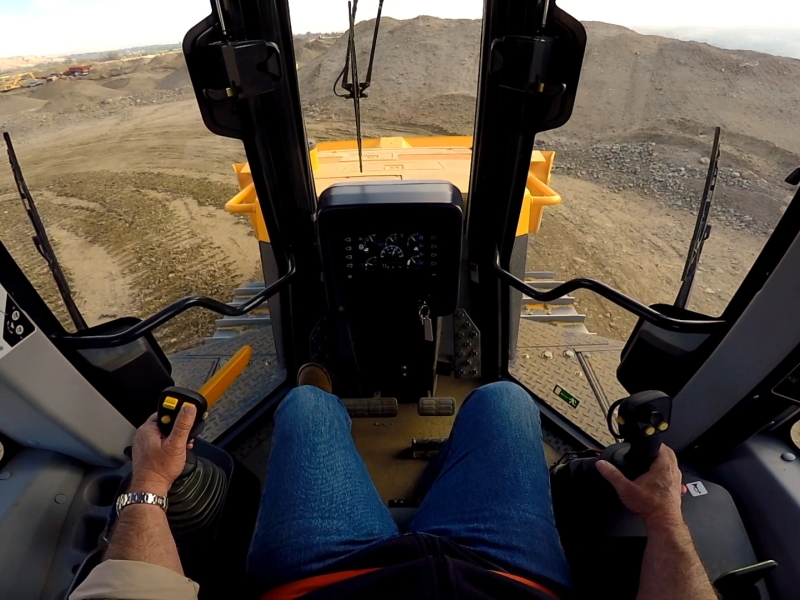

Relax, you are in a Dressta. That means your comfort is assured. A new deluxe seat with heated option, advanced climate control, new high efficiency shock absorbers to reduce noise and vibration and for safety, integrated ROPS & FOPS. But we’ve gone further to create a more productive environment too. We’ve radically improved the operator’s interface, with new ergonomic joysticks for precise control, high visibility LCD in-cab display and Bluetooth, USB device connectivity.

NEW ELECTROHYDRAULIC CONTROLS FOR ULTIMATE BLADE CONTROL

Why work harder? With our new, electrohydraulically controlled proportional joystick you’ll experience a new level of blade control and accuracy that helps you to get the job done faster. Predictable and precise joystick control allows you to accurately control the machine with minimum effort. Less fuel, less effort, that’s smart thinking in action.

CONTROLLABLE POWER

At its heart beats a turbocharged Cummins B6.7, 173 kW (232 hp) engine, compliant to EPA Tier 4 final/EU Stage V emissions regulations. Also available as EPA Tier 3/EU Stage IIIA with Cummins QSC8.3 engine. The combination of Cummins expertise with the latest heavy-duty diesel design delivers higher peak torque and exceptional fuel efficiency, giving you both the power and precision to get the job done right.t.

PANORAMIC VISIBILITY

With 33% more glass surface area, a tapered engine hood presenting clear sightlines to the blade corners, an optional rear-view camera, and additional blade lighting, you’ve got the job site covered from every angle.

CLASS LEADING DRAWBAR PULL

With class leading drawbar pull, you’ve got all the pulling power you’ll need, delivered through the perfect combination of a 3-speed power shift transmission and 2-speed steering drive.

PERFECT POWER TURNS

Our unique 2-speed steering drive maximises productivity by delivering 100% of the engine’s power to both tracks, allowing you to push a full load through turns with near perfect load retention.

CONTROL YOUR SPEED

Our new, intelligent Blade Speed Mode gives you  a new level of control. Choose from one of 3 modes, Slow, Neutral and Fast, all perfectly calibrated to match and adjust the blade speed to fit your application. Whether you are heavy pushing or final grading, you can be confident that you’re getting the best from the machine.

AWESOME ATTACHMENTS

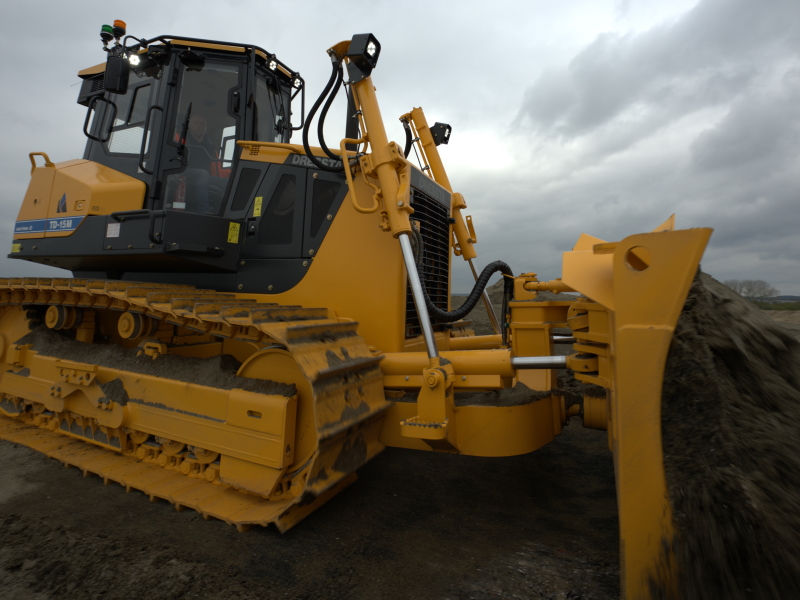

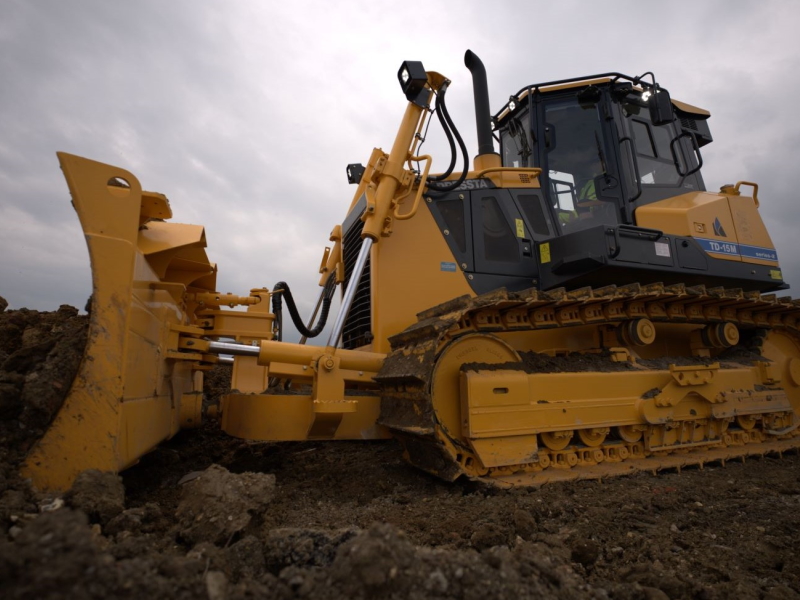

We offer you an awesome range of attachments. Semi-U, Straight and 6-way with optional foldable version and Angle blades; whatever blade you need, wherever you need it, we’ve got For the perfect finish, our 6-way blade control system has been designed for performance and final grade control. With its motion capabilities, our blades cut close and are adept at finish grade work in construction and landscaping applications. Don’t forget, our folding 6-way blade is also available as an option.

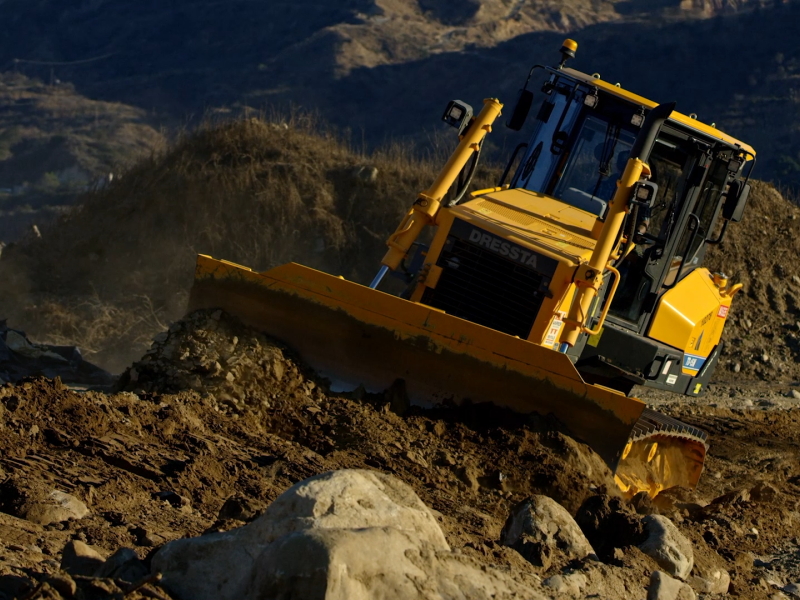

Our 3.8m³ precision Angle blade with 25° angling on each side works best handling broken and granular materials such as soils and gravel. The moldboard pivots on its center point to cast materials left or right. Ideal for making windrows, digging drainage ditches, backfilling trenches and grading roads. he Semi-U Blade design combines the penetration ability of a straight blade with the increased capacity provided by short wings. It is ideal for applications like road and highway construction. Dressta also offers large blades for increased capacity and incorporating full width cutting edges for prolonged durability. Cutting edge angles and blade moldboard geometry are designed to provide a balance between fine, light dozing and aggressive heavy material movement. This enables the dozers to perform at maximum productivity over a broader variety of applications. All blades can be equipped with hydraulic blade tilt and angle as well as manual blade pitch adjustment to increase the versatility of the dozer.

LET’S RIP

When it comes to rippers, we’ve got it covered. When you need a tough, concentrated penetrating force our single shank rippers deliver. With 713mm (28in) penetration depth and fully utilising the drawbar pull force, it’s easy to rip it up with speed and efficiency. Our adjustable parallelogram multi-shank ripper is perfect for breaking through the top surface in softer ground conditions. It can rip to a width of 2030mm (6ft 8in) and depth of 600mm (24in) covering more ground in fewer passes.

RIGHT ON TRACK

We have the right tracks to fit every application. Our single grouser track shoes are available in 7 different sizes ranging from 508mm (20in) to 940mm (37in) and are perfect fit for a variety of applications. In addition, we offer self-cleaning tracks for landfill applications.

DIGITAL SUPERHIGHWAY

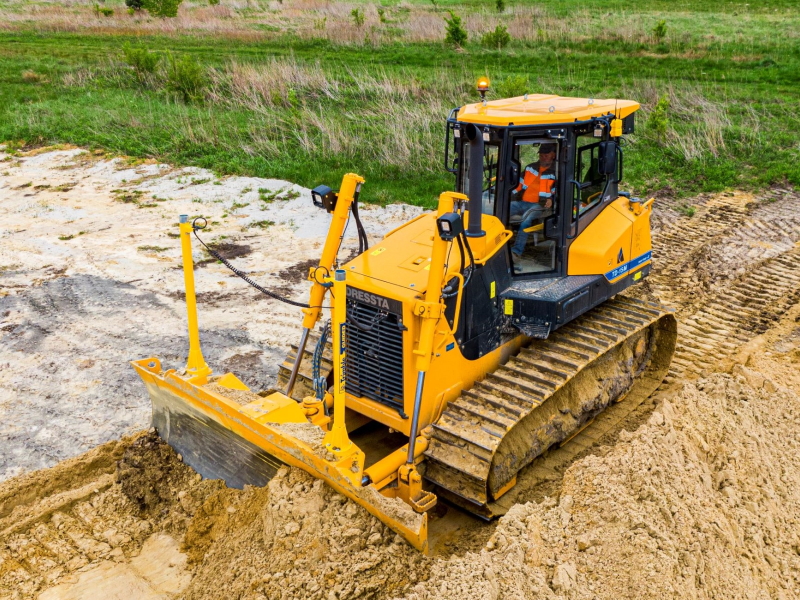

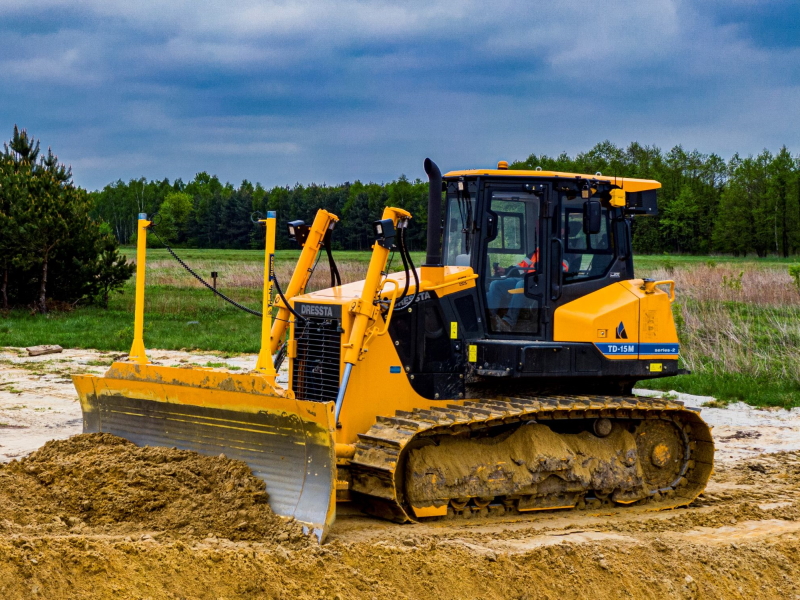

The TD-15M is grade-control ready with a choice of digitally connected grade control solutions for road and highway applications. These smart solutions boost productivity by increasing accuracy, reducing passes and saving time and fuel. Full grade control system gives you a ready to use, factory fitted system which is complete and ready to go. Digital Ready, the TD-15M has all of the factory fitted preparation work complete ready for future installation as required.

PUSHING FOR EXTRA PROFIT

We’ve gone further to give you a real return on your investment by delivering the lowest cost of ownership. Easy, safe, fast access to maintenance points reduces downtime. Lifetime lubricated rollers, heavy duty chains and idlers for extended track life all combine to reduce maintenance costs. Our intelligent, modular component layout makes servicing and maintenance even easier.
