2023 Dressta TD-25 TD-25R EXTRA

2023 Dressta TD-25 TD-25R EXTRA

The Dressta TD-25 Series is the first of our heavy-duty crawler dozer range, starting with a net flywheel power of 375 hp (280 kW) and an operating weight of 41.5t. The machines are built to excel in heavy mining, coal and construction projects, incorporating advanced technologies and components for optimal performance.

OPTIMAL POWER TO WEIGHT RATIO FOR UNRIVALLED TRACTION & DRAWBAR PULL…

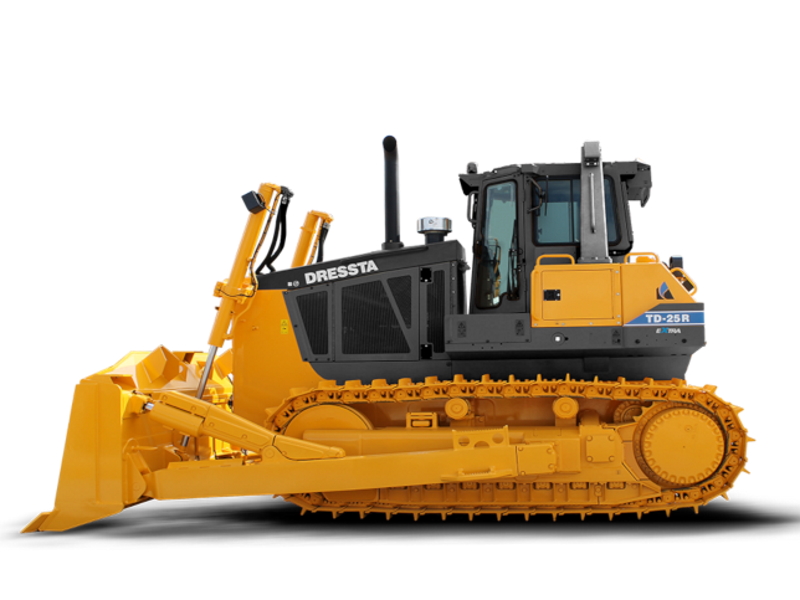

The TD-25R Extra sets the standards for others to follow and is a result of DRESSTA’s experience in designing highly efficient and productive Crawler Dozers.

Design concepts utilised in the TD-25R Extra include, optimisation of weight distribution, modular construction, and use of a one-piece main frame, two-speed Steering Drive and a 3-point track mounting system. Optimal performance is achieved when machine weight is matched to power and the TD-25R Extra provides a second-to-none balance of weight for traction and power for unrivalled drawbar pull.

Features Include:

ALL NEW CAB:

Designed to make hard work easy on the operator. The cab has a functional design to keep the operator engaged on the job. Operators will enjoy the newly added features that allow exceptional in-cab comfort.

• The New ROPS/FOPS Integrated CAB, provides superior all round visibility which is essential for a safe and productive work environment on the jobsite.
• The pressurised low vibration cab is quieter, and comes with a deluxe high-back air suspension seat that is angled at 140, large LCD display, A/C, sound suppression package.
• It is fitted with a responsive low effort blade control joysticks for smoother ease of operation.

MAXIMIZED TRACTION & DRAWBAR PULL:

The TD-25 is powered by Cummins QSX 15 Engine that delivers steady torque and power for efficient dozing and ripping performance.

• Robust powershift transmission combined with the unique 2-Speed Steering Drive transfers 100% engine power to both tracks for better load retention in turns and provides the best in the class Drawbar Pull, up to 20% more than competitors.
• TD-25 is offered with a heavy duty rigid undercarriage with lubricated track chain and split master link.
• It is fitted with variety of track shoes ranging from 22” up to 30” width.
• Multiple choice of blades; Semi-U 9.6m3 (Standard), Full-U 11,5 m3 , Coal 21m3 and Angle 5.7m3 meet wide range of requirements for applications varying from though rocky quarries, to road & highway, conduction, landscaping and municipality works.
• It is offered with 2 optional Parallelogram RipperS, multishank and single shank with unrivalled penetration up to 1,7 meter (deep dig option).

INTELLIGENT SYSTEMS:

TD-25 is fitted with Electro Hydraulics, enabling intelligence systems to be fitted with ease. Systems such as Trimble / Leica / Topcon will be compatible and can be pre-installed.

• Plug & Play ready for GPS fleet management systems.
• Automatic transmission down shifting.
• Transmission gears preselection.

EASY MAINTENANCE:

Easy, ground level access to the Test Bar, sight gauges of al fluids, and greasing points ensuring increased uptime.

• Modular component layout to make servicing and maintenance quicker, easier and cheaper.
• High capacity fuel tank will make the operation possible through full 2 working shifts.
