2023 Tufline VT73220S Black

2023 Tufline VT73220S Black

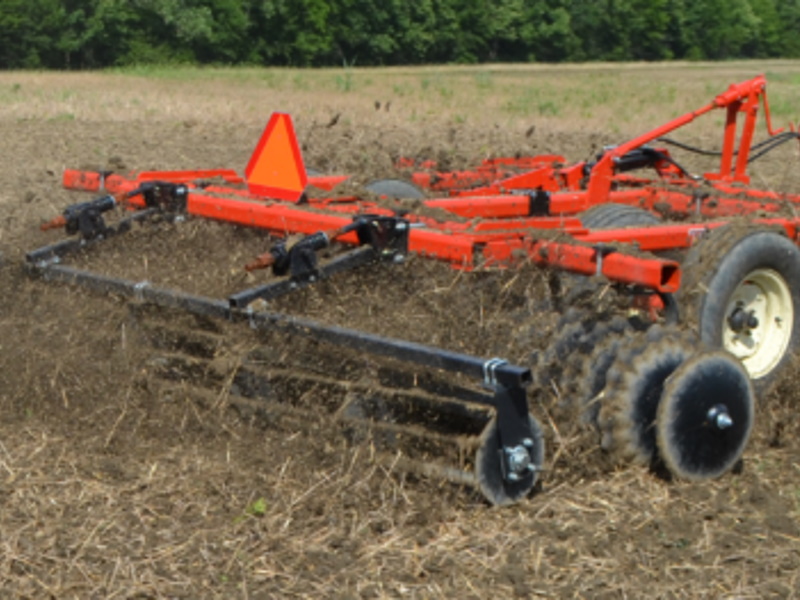

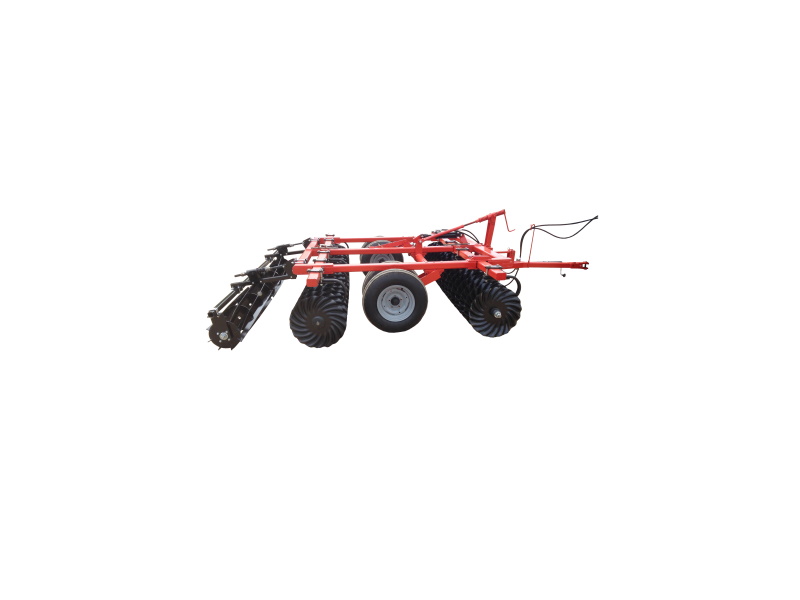

Vertical Tillage VT Series

After years of success with our conventional disc we decided to step up and provide other options. This is where our Vertical Tillage was born. These units are offered in two different blade types. 20” straight fluted or 22” V-Trex concave blades. Adjustable gang setting, depth adjustment and front to rear leveling are ideal for fine tuning these unit in the field. The Vertical Tillage Series is designed to resize residue and decrease erosion. The MVT comes with the spring adjusted Monroe Tufline Roller Basket. Gang angles can be adjusted from 0 degrees to 12 degrees. This series comes in four different models 10’ 6”, 12’, 13’ 6” and 15’. Each size includes hydraulic lift cylinder, hydraulic hoses, dual tire and rim assembly, clevis type hitch, safety chain and hydraulic cylinder transport lock out.

ADVANTAGES
• Residue control
• Minimize erosion
• Decreases soil compaction
• Multiple gang angle adjustments for specific spring and fall tillage

ROLLER BASKET
• Spring adjustable
• An exceptional seed bed
• Smooth finish
• Reduces clod size
• Ideal planting conditions

Features Include:

VT SERIES VERTICAL TILLAGE
• Designed for 85-150 horsepower tractors
• 1 1/8” RC Square cold drawn axles,
• Sealed ball bearings
• Front to rear leveling system
• Angle adjustable by 0-12*
• 20” Straight Fluted or 22” V-Trex Concave blades
• Shock Flex Hangers
• Tongue jack & safety chain
• Hydraulic cylinder & hoses
• (4) 11L- 15 8 ply Imp. tires
• Rolling Basket
• SMV Sign
