2023 Tufline 38/101622 Black

2023 Tufline 38/101622 Black

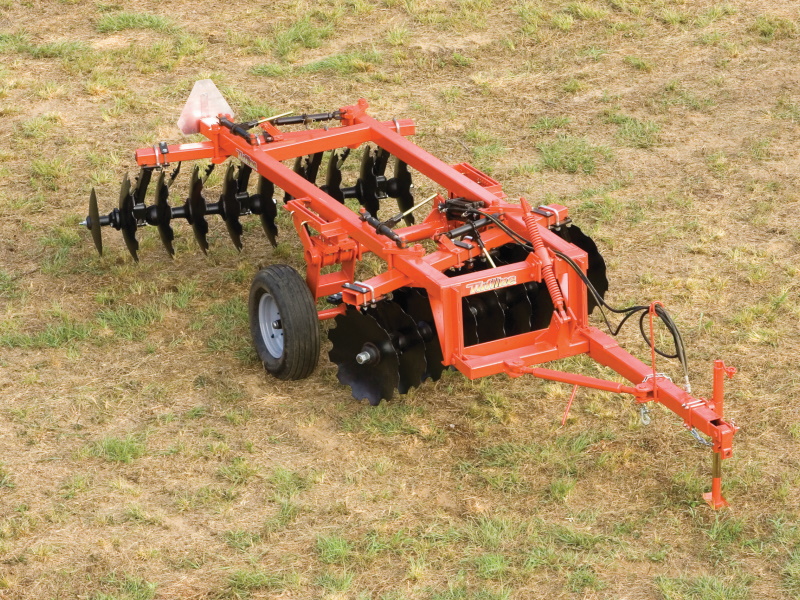

38 Series Offset Wheel Disc Harrows
Tufline’s 38 Series Offset Disc Harrows are designed for 50 to 80 horsepower tractors. The mainframe is constructed of heavy duty 4” square tube and 5” x 3” square tube gang beams. The gangs have a 1 1/2” RC square gang axles with triple sealed ball bearings. All units have a front to rear spring loaded leveling system and a tongue and yoke system for side draft control. Gang angle is adjustable and the gangs are available with tubular or shock flex gang hangers. 22” or 24” notched blades are standard with plain blades optional. Safety chain and mounted tongue jack are standard. Hydraulic cylinder, hoses, and tires are also standard equipment.

Features Include:

38 SERIES
OFFSET DISC HARROWS 6’- 10’ 2”

•10 1/2” SPACING MODELS
• Designed for 50 to 90 horsepower tractors
• 4” Square tube main frame
• 5” x 3” Rectangle gang beams
• 1 1/2” RC steel axles, triple sealed ball bearings
• Depth control system
• Front to rear spring loaded leveling system
• Tongue & yoke system for side draft control
• Gang angle adjustable
• Tubular gang hangers or shock flex hangers
• 4 x 8 cylinder, set of hoses
• 2-9.5L 6 ply implement tires
• Tongue jack & Safety chain
• 22” or 24” Notched blades standard
