2023 Tufline TW972222 Black

2023 Tufline TW972222 Black

TW5 Series 8′-9’6″ (45-65 horsepower)

Tufline’s TW5 Series Tandem Wheel Disc are designed for 35 to 65 horsepower tractors. The mainframe is constructed of heavy duty 3” square tube with tube type gang hangers. The gangs have a 1 1/8” square hi-strength axles with triple sealed ball bearings. All units have a front to rear leveling system and depth control. Safety chain and mounted tongue jack are standard. The units are available in 9” or 7 1/2” or combination blade spacing. 20” or 22” notched blades are standard with plain blades optional. Hydraulic cylinders, hoses, and tires are standard equipment.

Features Include:

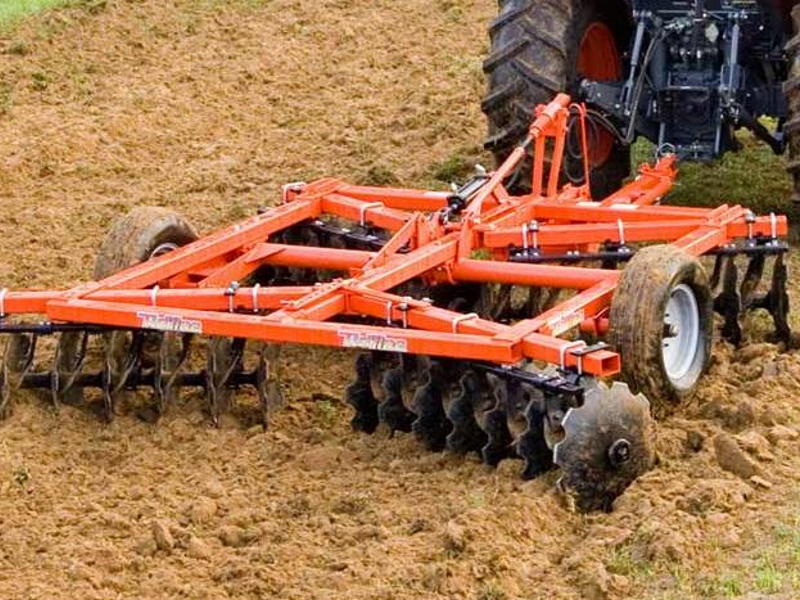

TW5 SERIES TANDEM WHEEL-TYPE DISC HARROW
8’ – 9’ 6”
• Designed for 35 to 65 horsepower tractors
• 3” Square tube frame
• 1 1/8” Square hi-strength axles,
• Triple sealed ball bearings
• Front to rear leveling system & depth control
• Tube type gang hangers
• 9” or 7 1/2” or combination blade spacing
• 20” or 22” Notched blades standard
• Tongue jack & safety chain
• 3 x 8 Hyd. cylinder, set of hydraulic hoses
• 2- 9.5L 15 6 ply Imp. tires
